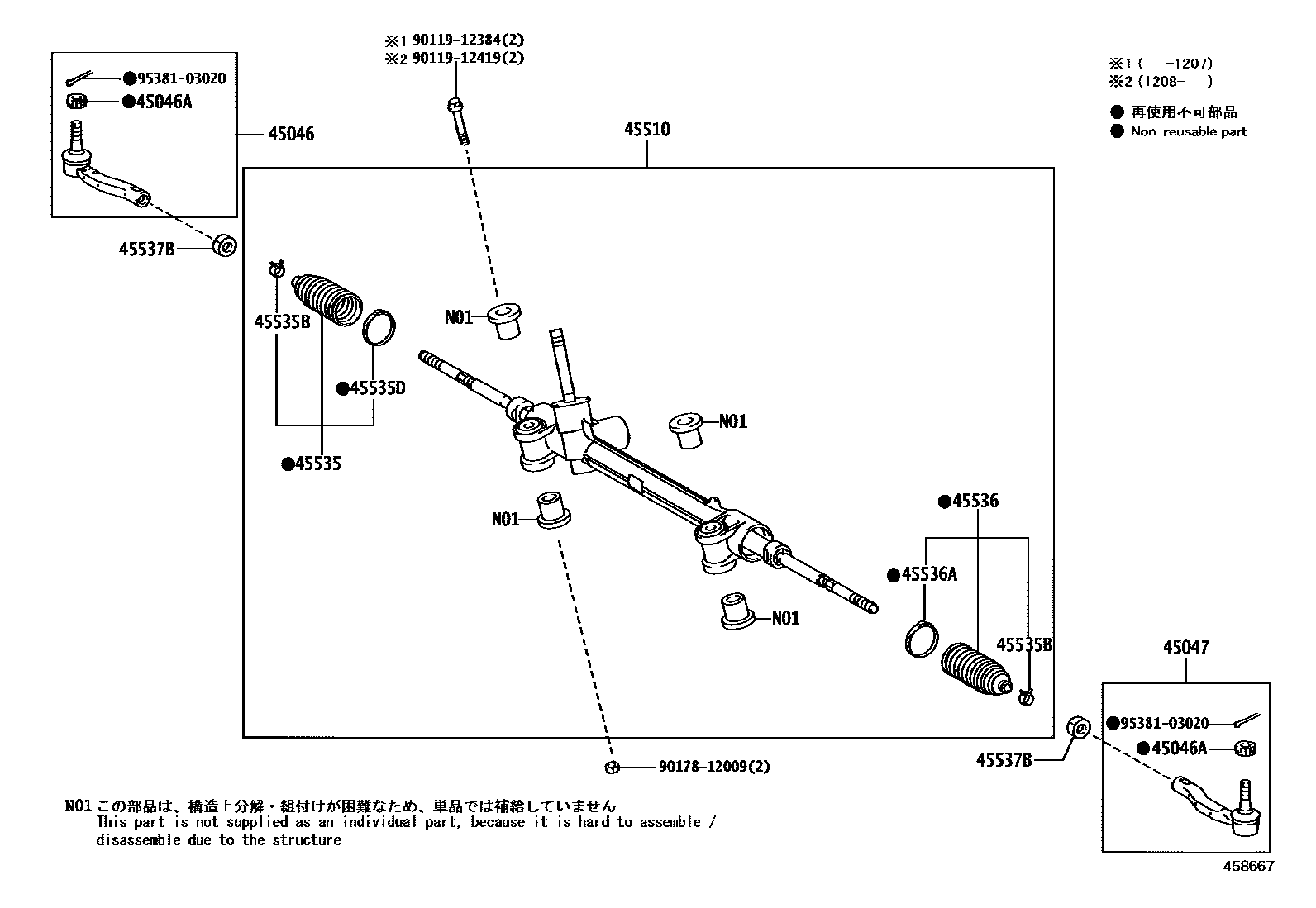

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-59195iKSP130,NSP130¥4,270201108-201208

sub45046-59255¥2,690

main45046-59255iNSP130¥2,690201208

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKSP130,NSP130¥130201108

45047END SUB-ASSY, TIE ROD, LH

main45047-59135iKSP130,NSP130¥4,270201108-201208

sub45047-59165¥2,690

main45047-59165iNSP130¥2,690201208

45510GEAR ASSY, STEERING

main45510-52300iNSP130¥47,300201208-201211

sub45510-52301¥29,800

main45510-52301iNSP130¥29,800201212

main45510-52310iKSP130,NSP130..RHD¥32,900201108-201208

main45510-52360iKSP130,NSP130..LHD201108-201208

sub45510-52361

45535BOOT, STEERING RACK, NO.1

main45535-59035iKSP130,NSP130¥790201108

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iKSP130,NSP130¥180201108

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iKSP130,NSP130¥220201108

45536BOOT, STEERING RACK, NO.2

main45535-59035iKSP130,NSP130¥790201108

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iKSP130,NSP130¥220201108

45537BNUT, RACK END LOCK

main90179-14019iKSP130,NSP130¥130201108

9011912384

main90119-12384¥590

9011912419

main90119-12419¥360

9017812009

main90178-12009¥120

9538103020

main95381-03020¥90

14 parts on this diagram · 2 diagrams in section
