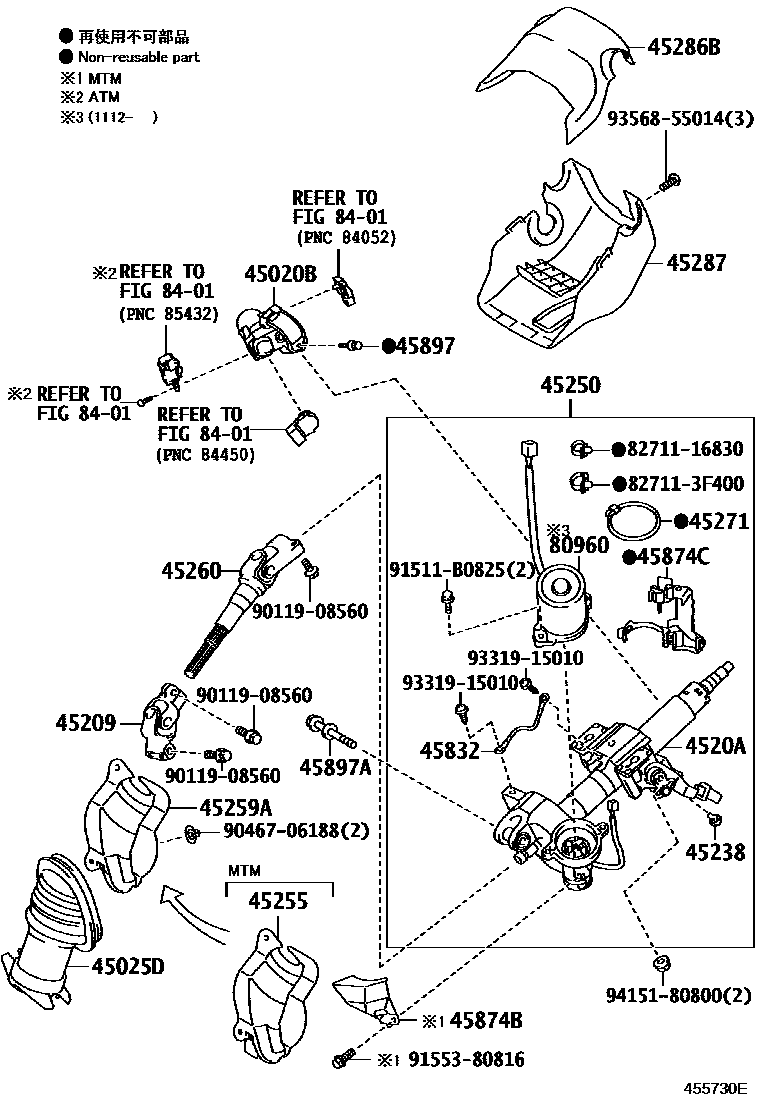

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45209YOKE SUB-ASSY, STEERING SLIDING
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
sub45250-52734
sub45250-52754
45255PLATE, STEERING COLUMN HOLE COVER
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45832CABLE, TILT STEERING SUPPORT BOND
45874BPROTECTOR, STEERING COLUMN, NO.1
45874CPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F400
9011908560
main90119-08560
9046706188
main90467-06188
91511B0825
main91511-B0825
9155380816
main91553-80816
9331915010
main93319-15010
9356855014
main93568-55014
9415180800
main94151-80800
28 parts on this diagram · 2 diagrams in section
