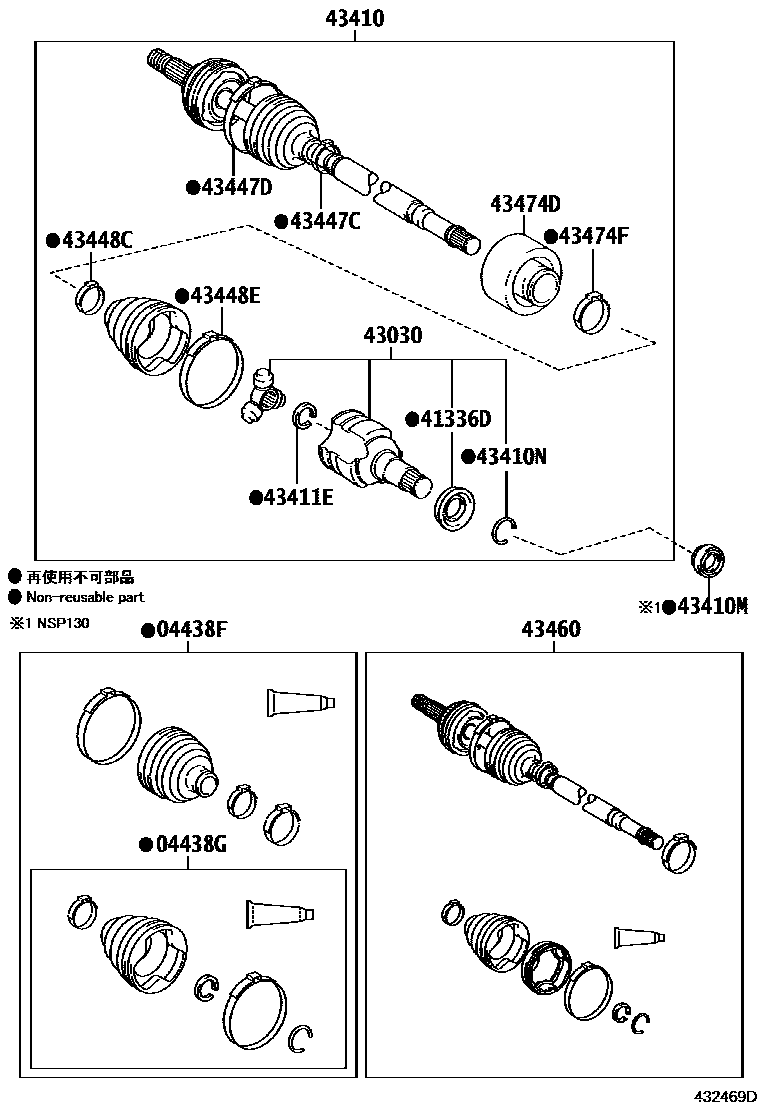

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D310iKSP130201108-201208

main04427-0D320iNSP130201108-201407

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D050iKSP130,NSP130201108-201407

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0H010iKSP130,NSP130201108

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-0D061iKSP130,NSP130201108-201407

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D292iNSP130201108-201407

main43410-0D341iKSP130201108-201208

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34038iNSP130..CVFC¥350201108-201406

sub90311-34047¥350

main90311-34041iNSP130..6F¥350201108-201208

sub90311-34054¥350

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52056iKSP130,NSP130¥100201108

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D090iKSP130,NSP130201108

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D260iNSP130¥330201108

main42345-0D440iKSP130201108-201208

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D250iNSP130¥570201108

main42345-0D430iKSP130201108-201208

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D210iKSP130,NSP130201108

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D200iKSP130,NSP130201108

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09U60iKSP130201108-201208

main43460-09V30iNSP130201108-201407

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D170iKSP130201108-201208

main43474-0D190iNSP130201108-201407

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0D720iNSP130201108-201407

main42345-0D830iKSP130201108-201208

15 parts on this diagram · 2 diagrams in section
