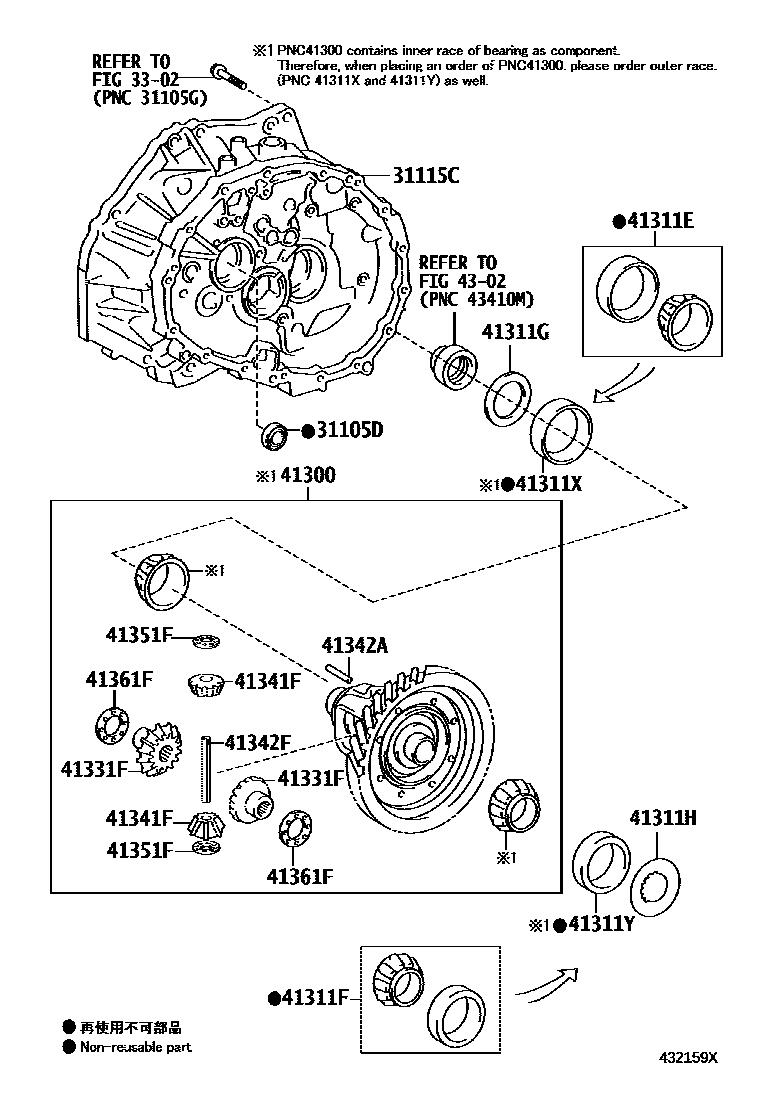

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
sub31115-12161
3302
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.100, MARK 10
T=2.125, MARK 11
T=2.150, MARK 12
T=2.175, MARK 13
T=2.200, MARK 14
T=2.225, MARK 15
T=2.250, MARK 16
T=2.275, MARK 17
T=2.300, MARK 18
T=2.325, MARK 19
T=2.350, MARK 20
T=2.375, MARK 21
T=2.400, MARK 22
T=2.425, MARK 23
T=2.450, MARK 24
T=2.475, MARK 25
T=2.500, MARK 26
T=2.525, MARK 27
T=2.550, MARK 28
T=2.575, MARK 29
T=2.600, MARK 30
T=2.625, MARK 31
T=2.650, MARK 32
T=2.675, MARK 33
T=2.700, MARK 34
T=2.725, MARK 35
T=2.750, MARK 36
T=2.775, MARK 37
T=2.800, MARK 38
T=2.825, MARK 39
T=2.850, MARK 40
41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)
41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-52060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
4302
17 parts on this diagram · 1 diagram in section
