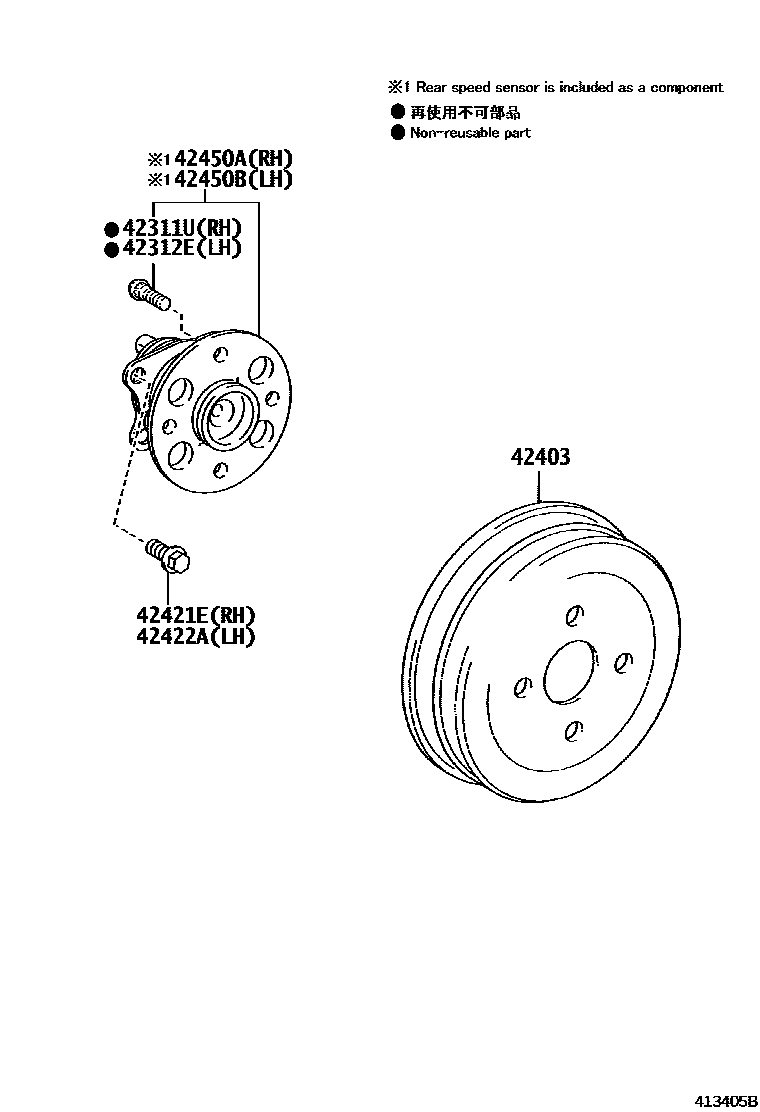

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iKSP130,NSP130201108

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iKSP130,NSP130201108

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070iKSP130201108-201208

main42431-52090iNSP130201108

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iKSP130,NSP130201108-201407

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iKSP130,NSP130201108-201407

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-52060iKSP130,NSP130201108-201407

sub42450-52061

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-52060iKSP130,NSP130201108-201407

sub42450-52061

7 parts on this diagram · 1 diagram in section
