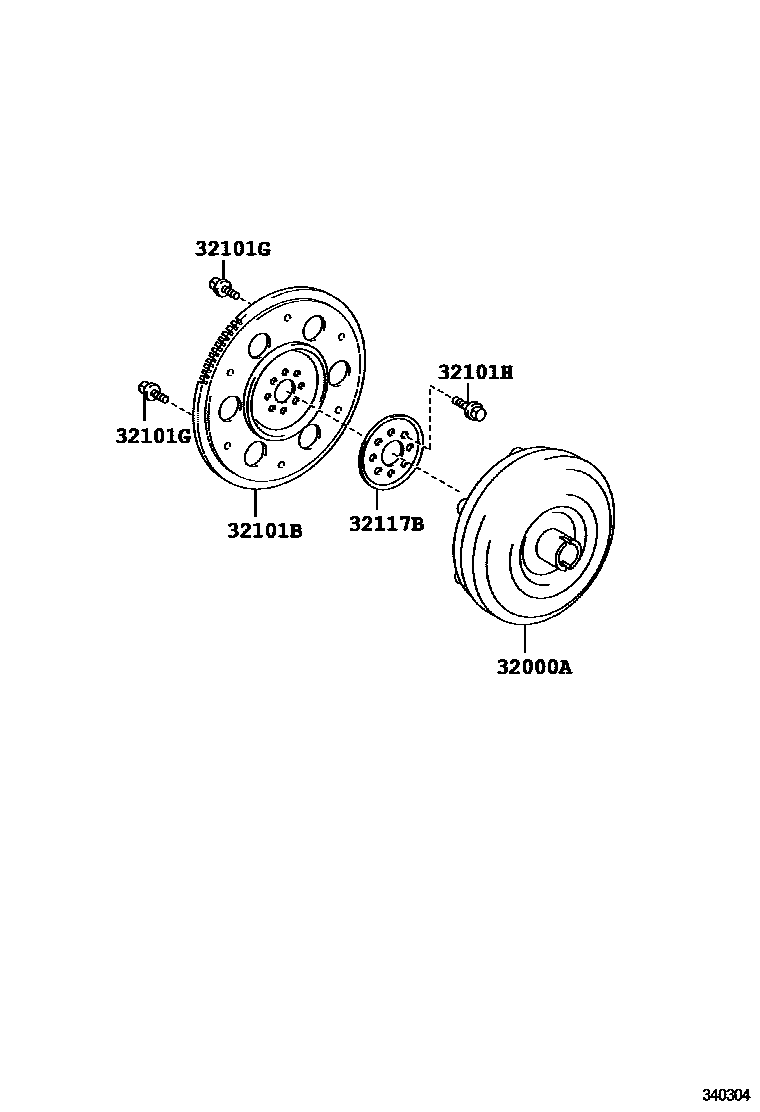

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K411 0002 1K411 W/O(STOP & START SYSTEM)

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP130..CVFC¥66,700201108-201407

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-74010iNSP130¥18,500201209-201407

TYPE A:REFER ILLUST.

sub32111-52110¥12,800

main32111-52100iNSP130..CVFC¥3,490201108-201209

main32111-52120iNSP130¥15,400201303

TYPE B:REFER ILLUST.

sub32111-52110¥12,800

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP130..CVFC¥80201108

*8-1.25PX12-8.4

main90119-08498iNSP130..CVFC¥80201108

*8-1.25PX12-8

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP130..CVFC¥130201108

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP130..CVFC¥800201108

5 parts on this diagram · 2 diagrams in section
