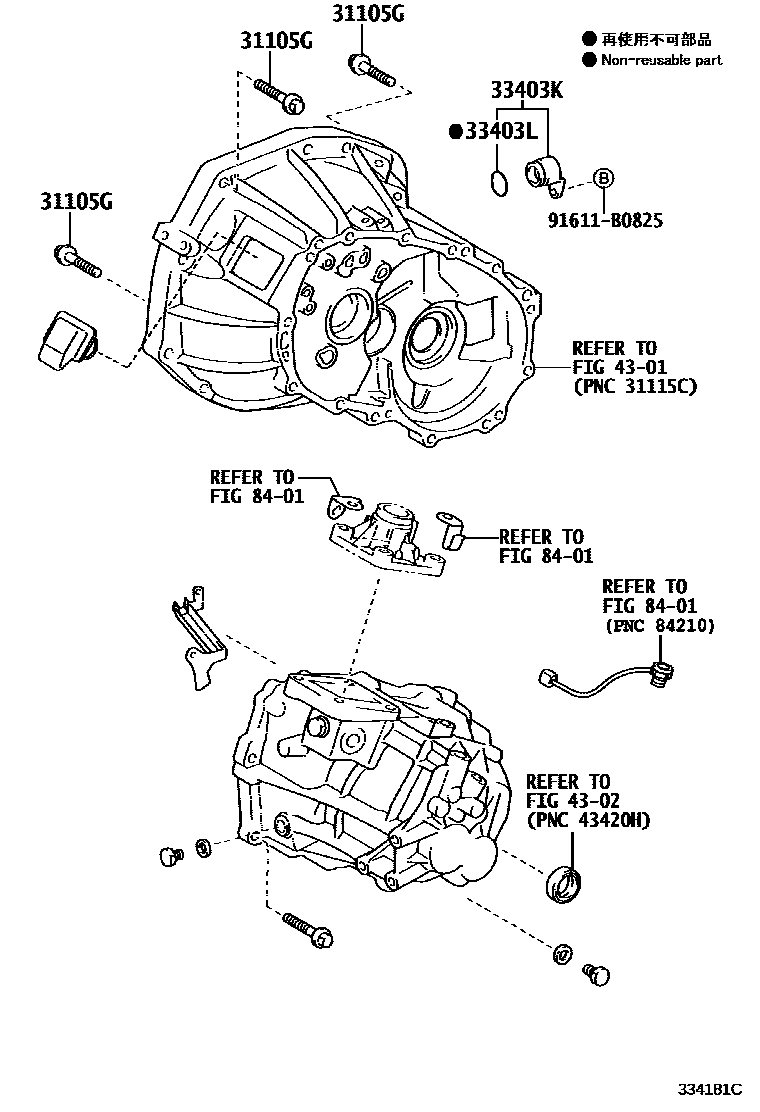

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C551 0002 1EC62

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91552-81245iNSP130..6F¥190201108-201208

*12-1.25PX45-30,TYPE B:REFER ILLUST.

main91552-81280iNSP130..6F¥240201108-201208

*12-1.25PX80-30

main91619-61245iKSP130¥120201108-201208

*12-1.25PX45-30

main91622-61040iKSP130¥120201108-201208

*10-1.25PX40-30

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iKSP130,NSP130..MTM¥1,180201108-201208

33403LRING, O

main96711-24030iKSP130,NSP130..MTM¥170201108-201208

4301

4302

8401

91611B0825

main91611-B0825¥160

7 parts on this diagram · 2 diagrams in section
