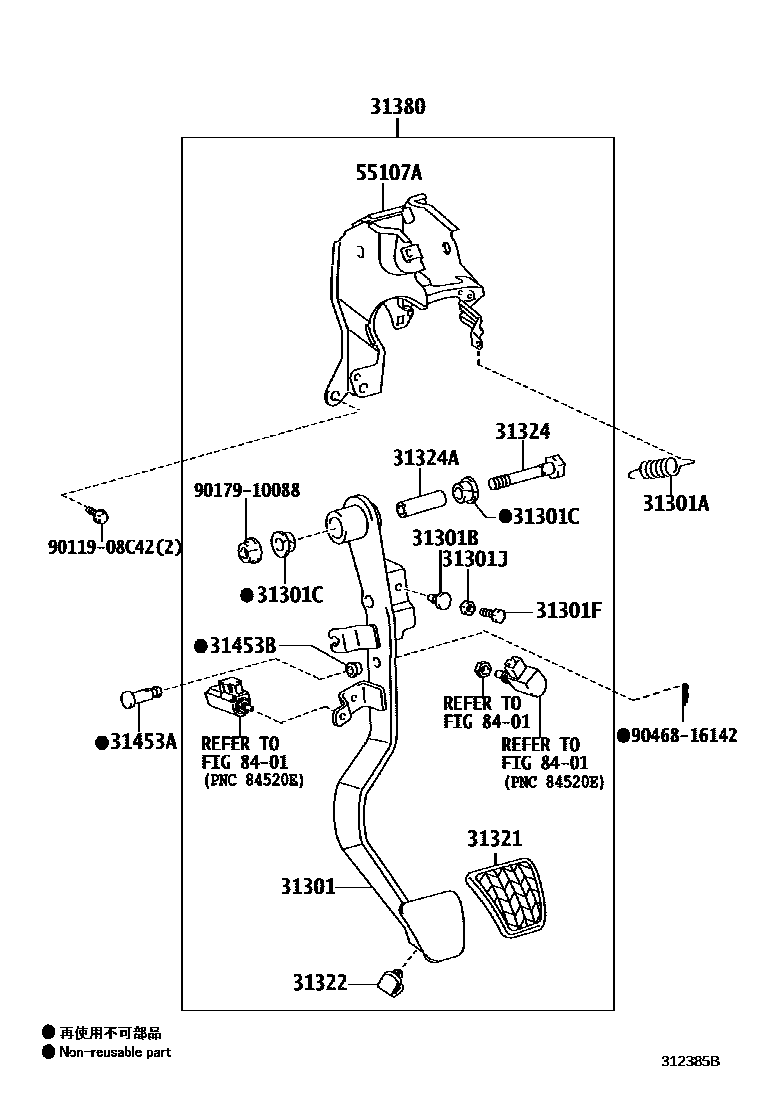

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52150iKSP130,NSP130..RHD..MTM201108-201208

main31311-52050iKSP130,NSP130..LHD..MTM201108-201208

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iKSP130,NSP130..LHD..MTM201108-201208

main90507-14055iKSP130,NSP130..RHD..MTM201108-201208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKSP130,NSP130..MTM201108-201208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKSP130,NSP130..MTM201108-201208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91112-61025iKSP130,NSP130..RHD..MTM201108-201208

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iKSP130,NSP130..RHD..MTM201108

31321PAD, CLUTCH PEDAL

main31321-52010iKSP130,NSP130..MTM201108-201208

31322STOPPER, CLUTCH PEDAL

main31322-52010iKSP130,NSP130..RHD..MTM201108-201208

31324SHAFT, CLUTCH PEDAL

main90105-10444iKSP130,NSP130..RHD..MTM201108-201208

main90105-10563iKSP130,NSP130..LHD..MTM201108-201208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKSP130,NSP130..RHD..MTM201108-201208

main90387-10004iKSP130,NSP130..LHD..MTM201108-201208

31380SUPPORT ASSY, PEDAL

main31380-52340iKSP130,NSP130..RHD..MTM201108

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iKSP130,NSP130..RHD..MTM201108-201208

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iKSP130,NSP130..RHD..MTM201108-201208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52210iKSP130,NSP130..LHD..MTM201108-201208

main55107-52240iKSP130,NSP130..RHD..MTM201108-201208

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9046816142

main90468-16142

18 parts on this diagram · 6 diagrams in section
