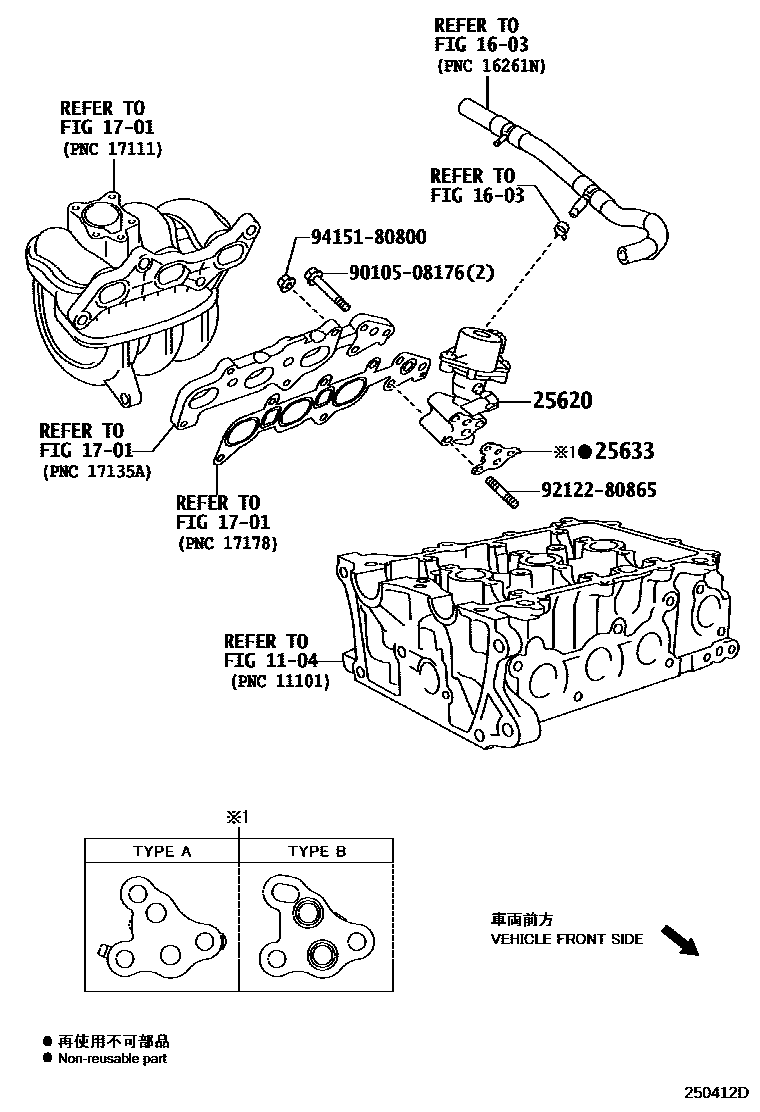

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1104

1603

1701

25620VALVE ASSY, EGR

main25620-40020i1KRFE..KSP130201108-201208

main25620-47020i1NRFE..NSP130201108

25633GASKET, EGR VALVE

main25633-40020i1KRFE..KSP130201108-201208

TYPE A:REFER ILLUST.

main25633-47010i1NRFE..NSP130201108

9010508176

main90105-08176

9212280865

main92122-80865

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section
