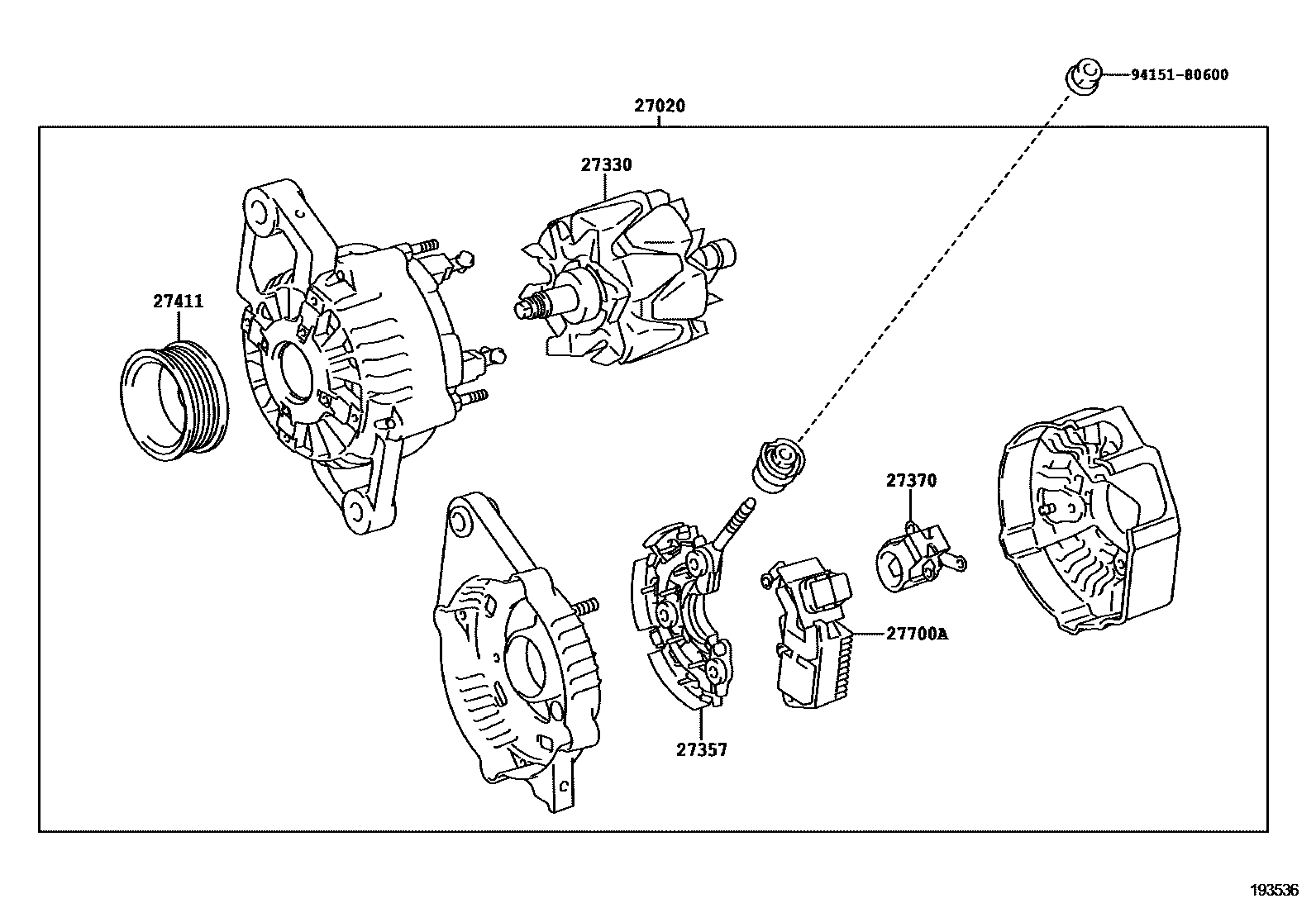

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)
12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)
12V 100A,WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT)
12V 100A,WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT)
12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)
12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)
27330ROTOR ASSY, ALTERNATOR
COLD SPEC & WITHOUT(REAR HEATER DUCT)
COLD SPEC & WITH(REAR HEATER DUCT)
WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT)
WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT)
COLD SPEC & WITHOUT(REAR HEATER DUCT)
COLD SPEC & WITH(REAR HEATER DUCT)
27357HOLDER, ALTERNATOR, W/RECTIFIER
WITHOUT(STOP & START SYSTEM)
27370HOLDER ASSY, ALTERNATOR BRUSH
WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT)
WITHOUT(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT)
COLD SPEC & WITHOUT(REAR HEATER DUCT)
COLD SPEC & WITH(REAR HEATER DUCT)
27411PULLEY, ALTERNATOR
27700AREGULATOR ASSY, GENERATOR
P/N LABEL=2706047140
WITHOUT(STOP & START SYSTEM)
9415180600
main94151-80600
7 parts on this diagram · 4 diagrams in section
