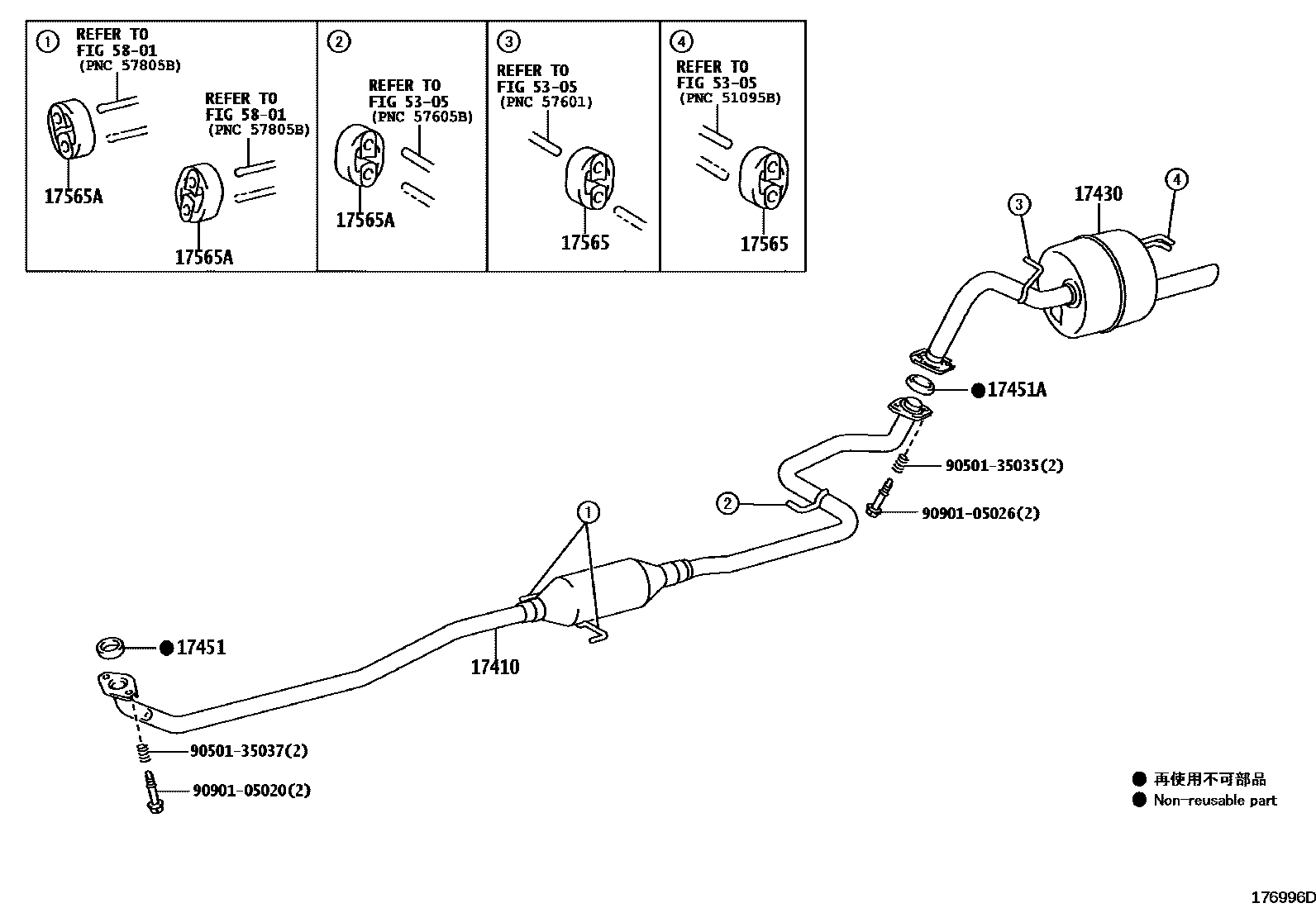

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-40190i1KRFE..KSP130201108-201208

main17410-47150i1NRFE..NSP130201108

*114=TOYOTA/CE9/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-40110i1KRFE..KSP130201108-201208

sub17430-40111

main17430-47100i1NRFE..NSP130201108

17451GASKET, EXHAUST PIPE

main17451-21070i1NRFE..NSP130201108

main17451-40010i1KRFE..KSP130201108-201208

17451AGASKET, EXHAUST PIPE, NO.2

main17451-40032i1KRFE..KSP130201108-201208

main90917-06039i1NRFE..NSP130201108

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-47010i1KRFE..KSP130201108-201208

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010i1KRFE..KSP130201108-201407

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 2 diagrams in section
