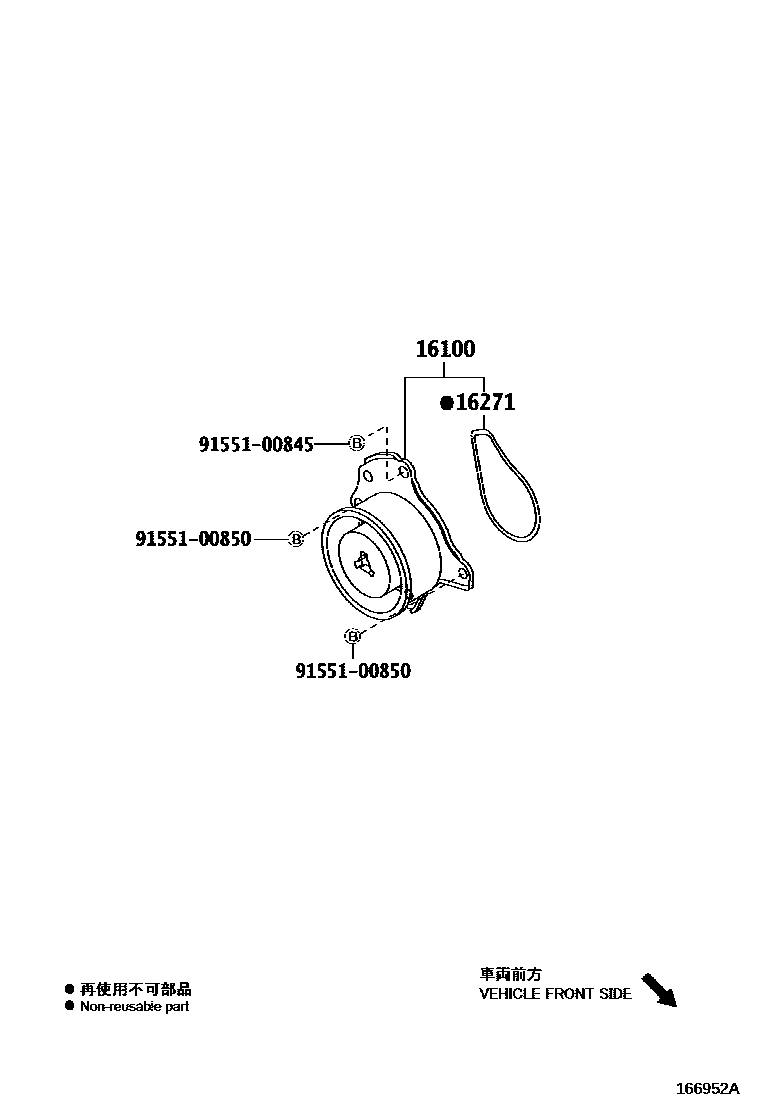

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-80004i1NRFE..NSP130¥8,700201108-201308

sub16100-80010¥7,900

sub91552-81050¥120

main16100-80007i1KRFE..KSP130¥8,700201108-201208

main16100-80010i1NRFE..NSP130¥7,900201308

sub16100-80019¥7,900

16271GASKET, WATER PUMP

main16271-40020i1KRFE..KSP130¥440201108-201208

main16271-47031i1NRFE..NSP130¥490201108-201407

9155100845

main91551-00845¥100

9155100850

main91551-00850¥110

4 parts on this diagram · 2 diagrams in section
