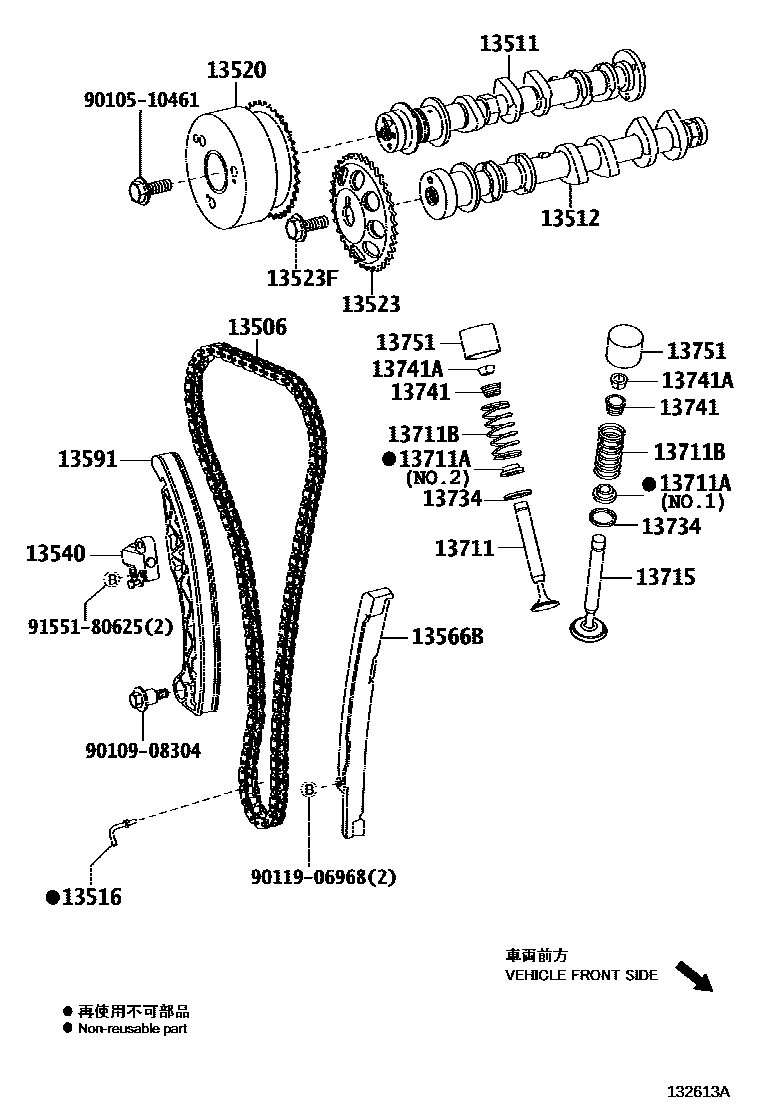

CAMSHAFT & VALVE
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
sub13520-40021
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13711C=TYPE A
PNC 13711C=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
9010510461
main90105-10461
9010908304
main90109-08304
9011906968
main90119-06968
9155180625
main91551-80625
22 parts on this diagram · 2 diagrams in section
