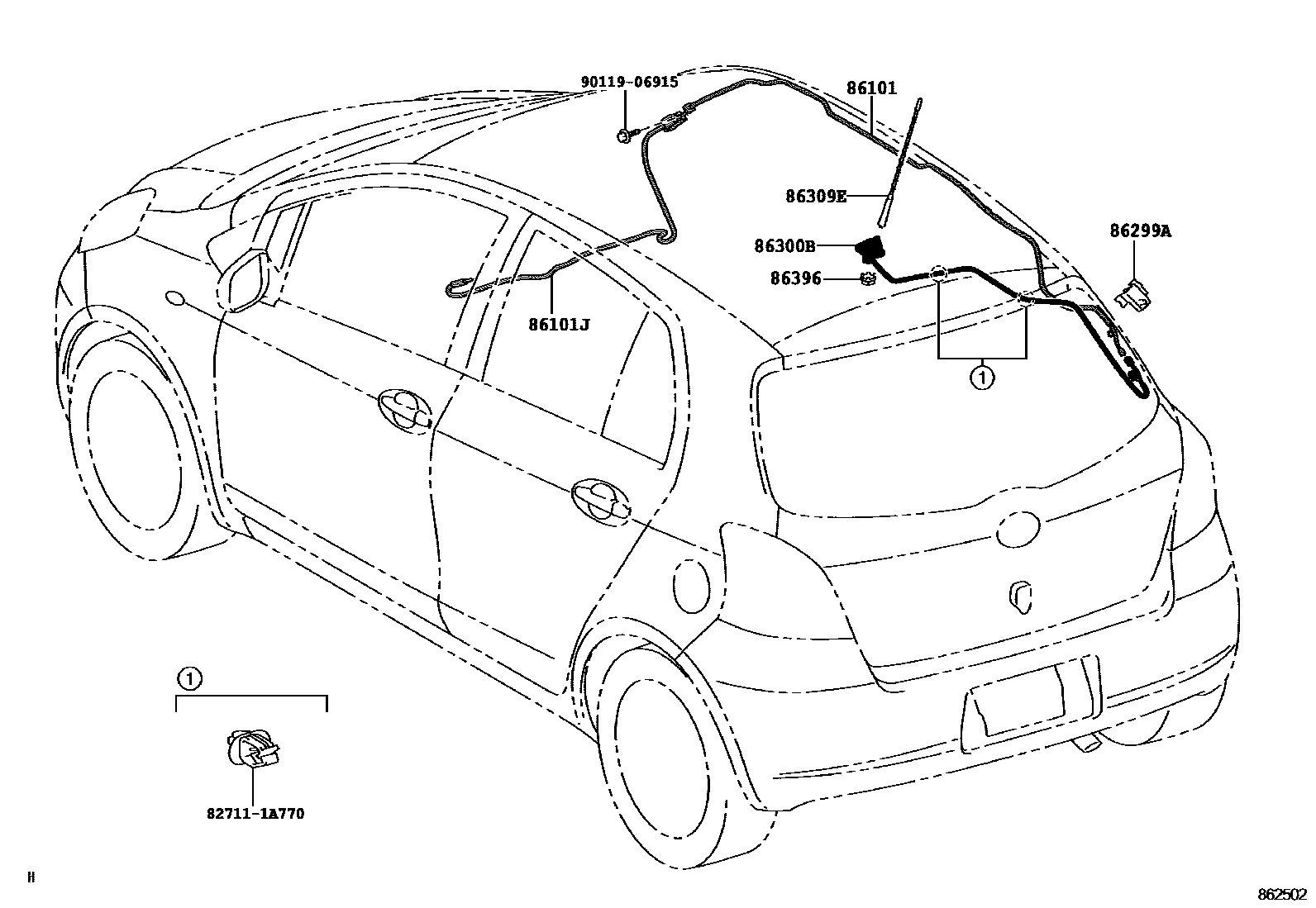

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52340iKSP90..JPP;ZSP90..JPP..6F200508-201106

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52400iKSP90,ZSP90..JPP..RHD..5F200508

main86101-52410iKSP90,ZSP90..JPP..LHD..5F200508

main86101-52690iKSP90..JPP..RHD;ZSP90..JPP..RHD..6F200808-201106

main86101-52700iKSP90..JPP..LHD;ZSP90..JPP..LHD..6F200808-201006

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-52010iKSP90..JPP;ZSP90..JPP..6F200508-201106

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52300iKSP90,ZSP90..JPP..5F200508-201106

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52040iKSP90,ZSP90..JPP..5F200508-201106

86396NUT, ANTENNA

main86396-20040iKSP90,ZSP90..JPP..5F200508-201106

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
