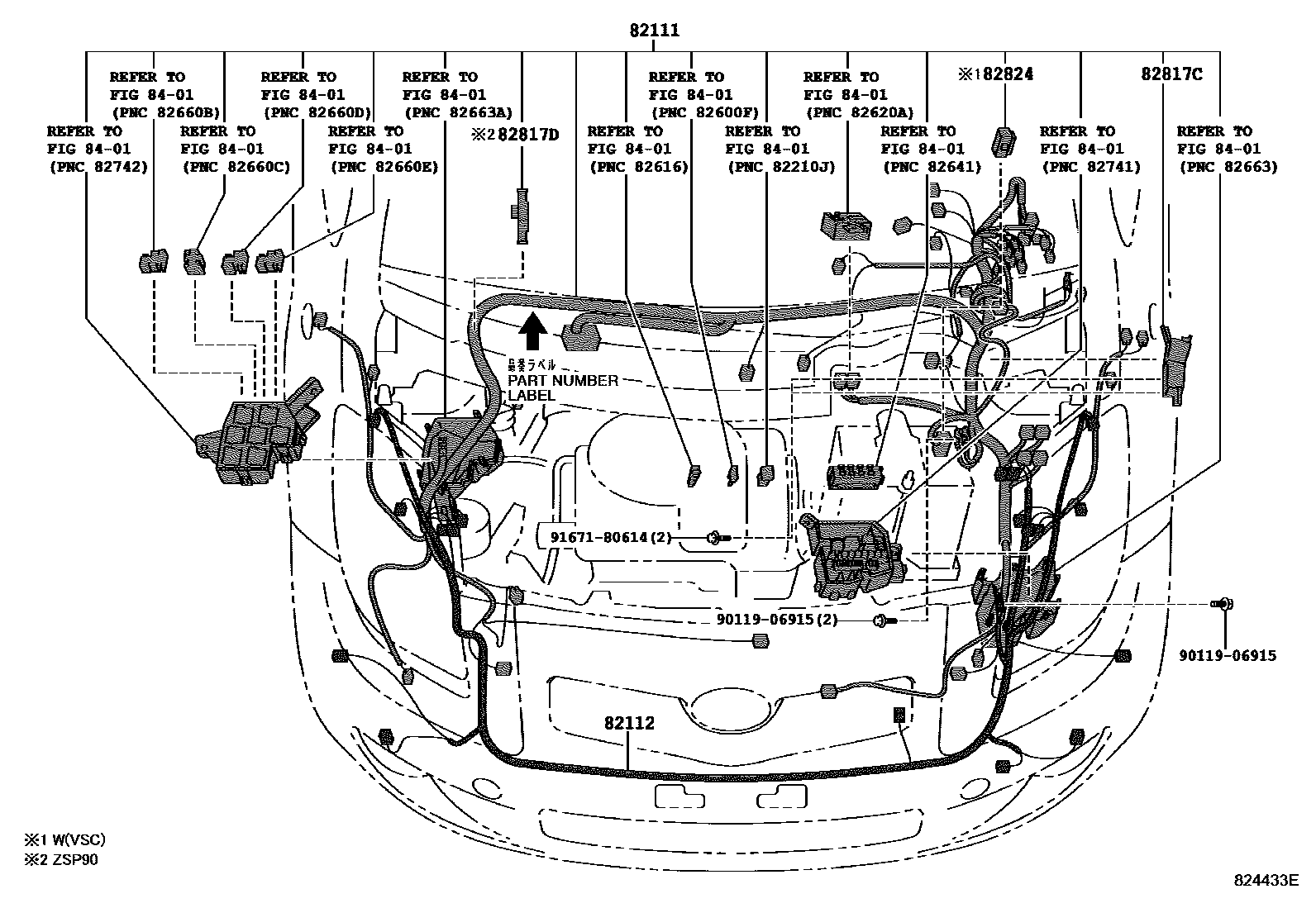

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CONNECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-52C60iKSP90..JPP..LHD¥88,400200508-200603

sub82111-52C61

main82111-52C61iKSP90..JPP..LHD200604-200808

main82111-52D00iKSP90..JPP..RHD¥101,000200508-200808

main82111-52M90iZSP90..JPP..LHD200611-200809

main82111-52N10iZSP90..JPP..RHD200611-200809

main82111-52R80iKSP90..JPP..RHD200808-201003

main82111-52R81iKSP90..JPP201003-201010

main82111-52R82iKSP90..JPP201010-201012

main82111-52R83iKSP90..JPP201012-201108

main82111-52S10iZSP90..JPP..RHD200809-201006

main82111-52S20iKSP90..JPP..LHD200808-200910

main82111-52S60iZSP90..JPP..LHD200809-201006

82112WIRE, ENGINE ROOM, NO.2

main82112-52040iKSP90..JPP¥21,400200508

main82112-52050iZSP90..JPP..5F¥23,900200611

main82112-52350iKSP90..JPP¥18,600200808-201106

main82112-52361iZSP90..JPP¥18,600200809-201006

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-52511iKSP90..JPP;ZSP90..JPP..6F¥1,680200508-200903

main82817-52580iKSP90,ZSP90..JPP200904-201108

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-52750iZSP90..JPP..LHD..5F200611-201006

82824CONNECTOR, WIRING HARNESS

main82824-52260iZSP90..JPP..5F¥2,160200611-201006

8401

9011906915

main90119-06915¥60

9167180614

main91671-80614¥60

8 parts on this diagram · 13 diagrams in section
