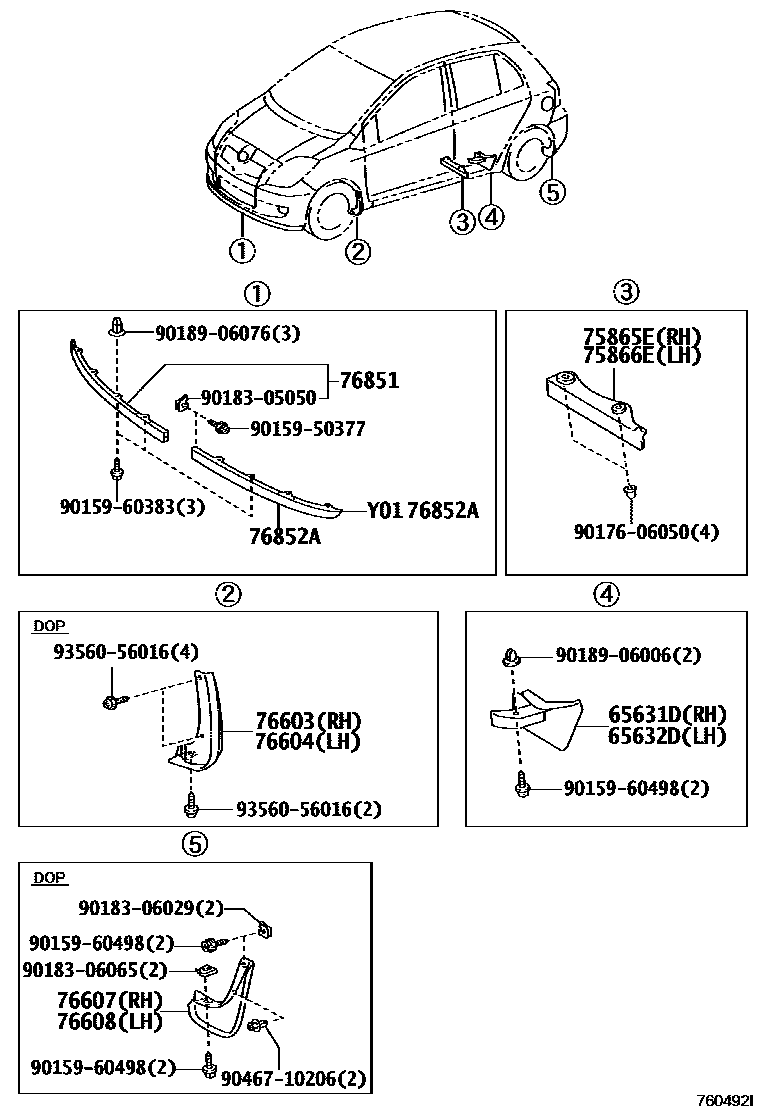

MUDGUARD & SPOILER

0001 1 0003 1 0004 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52050iKSP90..JPP..SOL200508-200611

AIR SPATS-W/FR&CTR&RR

main65631-52100iKSP90..JPP200612-201106

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52050iKSP90..JPP..SOL200508-200611

AIR SPATS-W/FR&CTR&RR

main65632-52100iKSP90..JPP200612-201106

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-52030iKSP90,ZSP90..JPP..5F..(SOL,TS)200508

sub75865-52031

main75865-52030iKSP90..JPP;ZSP90..JPP..6F200808-201010

SOUTH AFRICA SPEC

sub75865-52031

main75865-52031iKSP90..JPP201011

SOUTH AFRICA SPEC

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-52030iKSP90..JPP;ZSP90..JPP..6F200808-201010

SOUTH AFRICA SPEC

sub75866-52031

main75866-52030iKSP90,ZSP90..JPP..5F..(SOL,TS)200508

sub75866-52031

main75866-52031iKSP90..JPP201011

SOUTH AFRICA SPEC

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52060

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52060

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52090

main76625-52110

main76625-52160

main76625-52170

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52090

main76626-52110

main76626-52160

main76626-52170

76851COVER, FRONT SPOILER

main76851-52100iKSP90..JPP..SOL200508-200808

AIR SPATS-W/FR&CTR&RR

main76851-52160iKSP90..JPP..RHD200808-201108

SOUTH AFRICA SPEC

76852ACOVER, FRONT SPOILER, LH

main76852-52070iKSP90..JPP..SOL200508-200808

AIR SPATS-W/FR&CTR&RR

9015950377

main90159-50377

9015960383

main90159-60383

9015960498

main90159-60498

9017606050

main90176-06050

9018305050

main90183-05050

9018306029

main90183-06029

9018306065

main90183-06065

9018906006

main90189-06006

9018906076

main90189-06076

9046710206

main90467-10206

9356056016

main93560-56016

21 parts on this diagram · 3 diagrams in section
