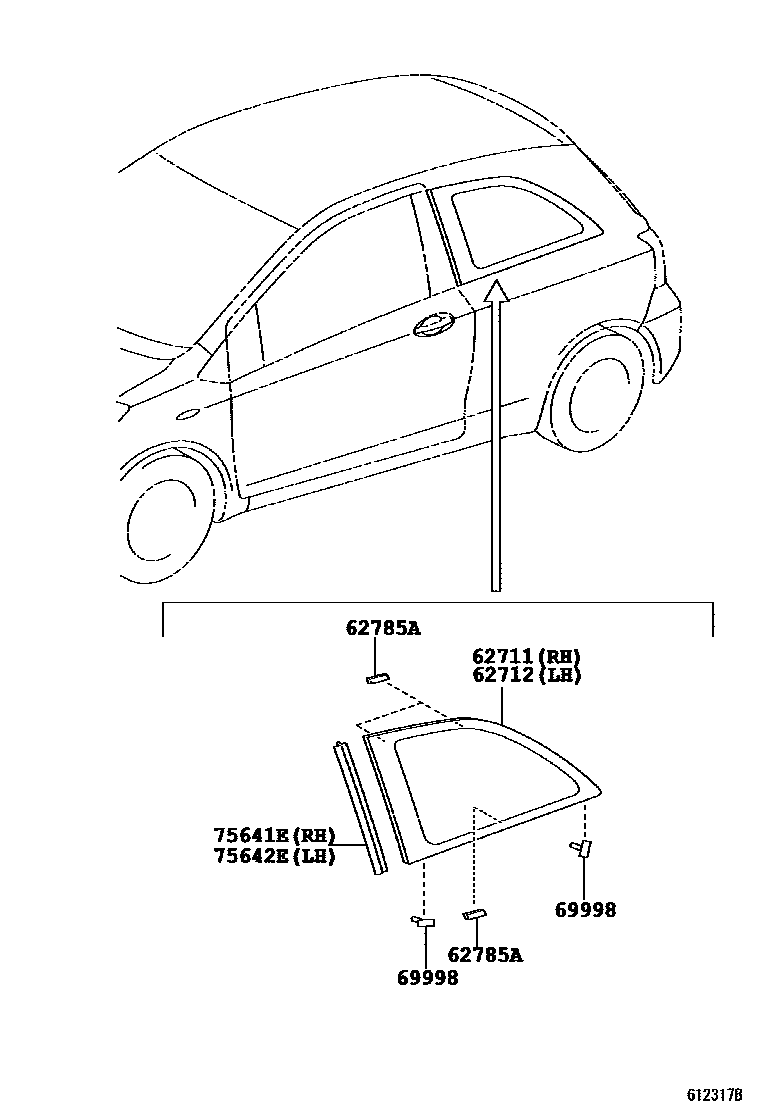

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-52300iKSP90..JPP..3D200508-200708

*UVCT,T=3.1,GREEN

main62711-52340iZSP90..JPP..3D..5F200708-201006

*TEM,T=3.1,DARK GRAY

62712GLASS, QUARTER WINDOW, LH

main62712-52290iKSP90..JPP..3D200508-200708

*UVCT,T=3.1,GREEN

main62712-52330iZSP90..JPP..3D200708-201006

*TEM,T=3.1,DARK GRAY

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iKSP90,ZSP90..JPP..3D..5F200508

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52030iKSP90,ZSP90..JPP..3D..5F200508

75641EMOULDING, QUARTER WINDOW, RH

main75641-52040iKSP90,ZSP90..JPP..3D..5F200508

75642EMOULDING, QUARTER WINDOW, LH

main75641-52040iKSP90,ZSP90..JPP..3D..5F200508

6 parts on this diagram · 1 diagram in section
