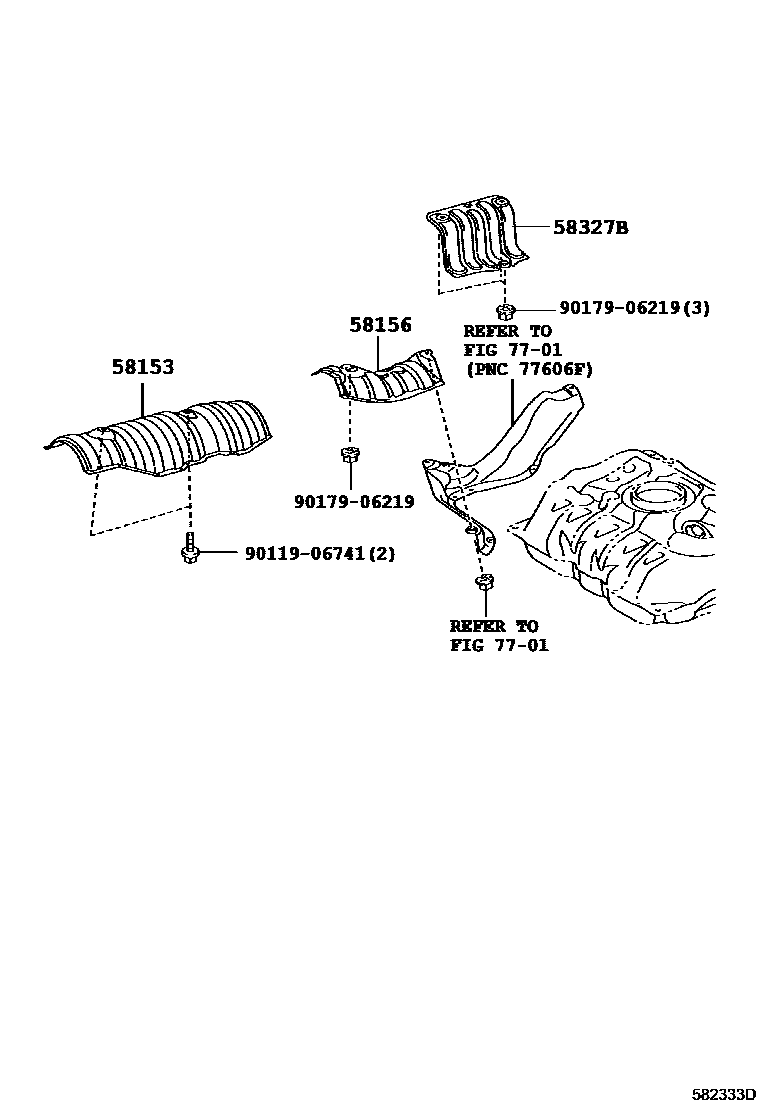

FLOOR INSULATOR

0001 1 0002 1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52070iKSP90..JPP200508-200912

sub58153-52071

main58153-52071iKSP90..JPP201001-201108

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iKSP90,ZSP90..JPP..5F200508-201106

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52110iKSP90,ZSP90..JPP..5F200508-200912

sub58327-52111

main58327-52111iKSP90,ZSP90..JPP201001-201106

7701

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 2 diagrams in section
