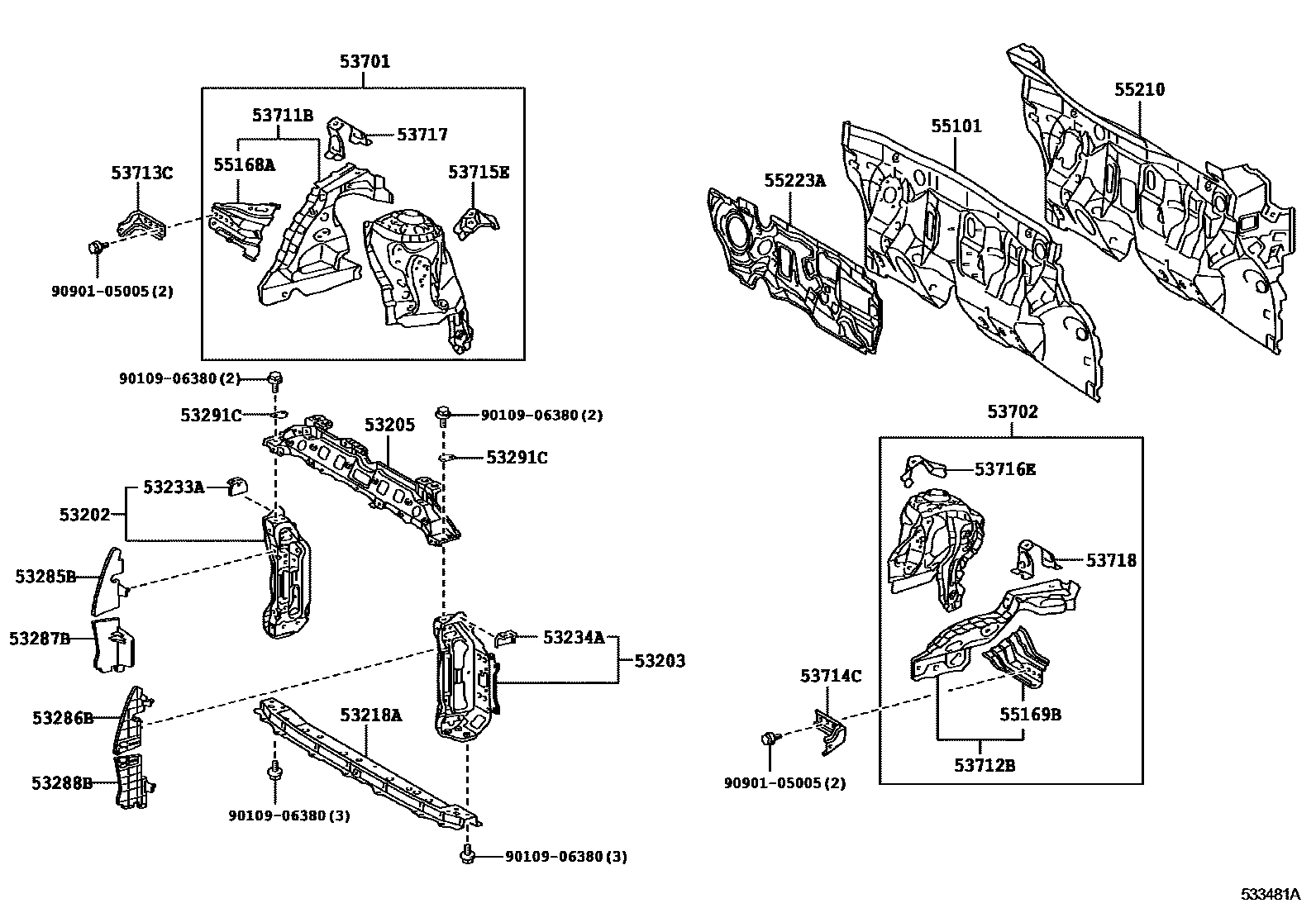

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0005 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52901iKSP90,ZSP90..JPP..5F200508

main53202-52905iKSP90..JPP;ZSP90..JPP..6F200808-201010

sub53202-52910

main53202-52910iKSP90..JPP201011-201106

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52901iKSP90,ZSP90..JPP..5F200508

main53203-52903iKSP90..JPP;ZSP90..JPP..6F200808-201010

sub53203-52908

main53203-52908iKSP90..JPP201011-201106

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52090iKSP90,ZSP90..JPP..5F200508-201106

53218ASUPPORT, RADIATOR, LOWER

main53028-52070iKSP90,ZSP90..JPP..5F200508-201106

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52010iKSP90,ZSP90..JPP..5F200508

main53233-52030iKSP90..JPP;ZSP90..JPP..6F200808-201106

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52020iKSP90,ZSP90..JPP..5F200508

main53234-52040iKSP90..JPP;ZSP90..JPP..6F200808-201106

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52170iKSP90..JPP200508

main53285-52200iZSP90..JPP..5F200611

main53285-52280iKSP90..JPP200808-201106

main53285-52300iZSP90..JPP200809-201006

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52100iKSP90..JPP200508

main53286-52140iZSP90..JPP..5F200611

main53286-52220iKSP90..JPP200808-201106

main53286-52240iZSP90..JPP200809-201006

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52010iKSP90..JPP200508

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52010iKSP90..JPP200508

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070iKSP90..JPP;ZSP90..JPP..6F200508-201106

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52150iKSP90,ZSP90..JPP..5F200508-201106

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52150iKSP90,ZSP90..JPP..5F200508-201106

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030iKSP90,ZSP90..JPP..5F200508-201106

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030iKSP90..JPP;ZSP90..JPP..6F200508-201106

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52010iKSP90,ZSP90..JPP..5F200508-201106

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52020iKSP90,ZSP90..JPP..5F200508-201106

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iKSP90,ZSP90..JPP..5F200508-201106

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iKSP90,ZSP90..JPP..5F200508-201106

53717PLATE, FENDER APRON, RH

main53717-52080iKSP90,ZSP90..JPP..5F200508-201106

53718PLATE, FENDER APRON, LH

main53718-52080iKSP90,ZSP90..JPP..5F200508-201106

55101PANEL SUB-ASSY, DASH

main55101-52490iKSP90,ZSP90..JPP..LHD200508-201006

main55101-52690iKSP90,ZSP90..JPP..RHD200508-201108

sub55101-52471

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iKSP90,ZSP90..JPP..5F200508-201106

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iKSP90..JPP;ZSP90..JPP..6F200508-201106

55210INSULATOR ASSY, DASH PANEL

main55210-52170iKSP90..JPP..RHD200508-200604

sub55210-52171

main55210-52171iKSP90..JPP..RHD;ZSP90..JPP..RHD..6F200605-200908

sub55210-52172

main55210-52172iKSP90,ZSP90..JPP..RHD200909-201106

sub55210-52173

main55210-52180iKSP90,ZSP90..JPP..LHD..5F200508-201006

sub55210-52181

55223AINSULATOR, DASH PANEL, OUTER

main55223-52080iKSP90,ZSP90..JPP..RHD200508-200806

sub55223-52100

main55223-52090iKSP90,ZSP90..JPP..LHD200508-200806

sub55223-52110

main55223-52100iKSP90..JPP..RHD;ZSP90..JPP..RHD..6F200807-201106

sub55223-52101

main55223-52110iKSP90..JPP..LHD;ZSP90..JPP..LHD..6F200807-201006

9010906380

main90109-06380

9090105005

main90901-05005

28 parts on this diagram · 4 diagrams in section
