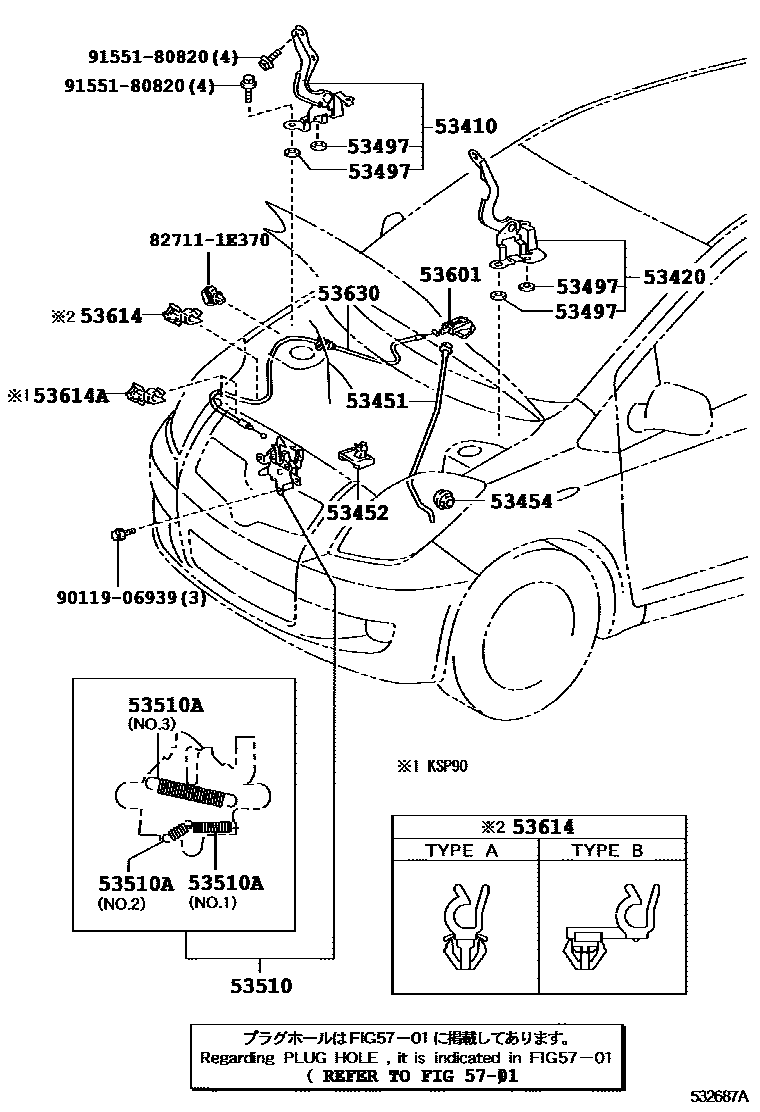

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52180iKSP90,ZSP90..JPP..5F200508-201106

53420HINGE ASSY, HOOD, LH

main53420-52180iKSP90..JPP;ZSP90..JPP..6F200508-201106

53451ROD, HOOD SUPPORT

main53440-52140iKSP90,ZSP90..JPP..5F200508-201106

53452HOLDER, HOOD STAY

main53452-52010iKSP90,ZSP90..JPP..5F200508-201106

53454CLIP, HOOD SUPPORT ROD

main53454-52020iKSP90,ZSP90..JPP..5F200508-201106

53497PAD, HOOD HINGE, NO.1

main53497-42010iKSP90..JPP;ZSP90..JPP..6F200508-201106

T=0.5

53510LOCK ASSY, HOOD

main53510-52290iKSP90..JPP..RHD200508-201106

main53510-52300iKSP90,ZSP90..JPP..LHD..5F200508-201006

main53510-52440iZSP90..JPP..RHD200611-201006

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKSP90,ZSP90..JPP..5F200508-201106

WD=0.9,CW=21,NO.1

main90506-12063iKSP90..JPP;ZSP90..JPP..6F200508-201106

WD=1.2,CW=8.5,NO.2

main90506-14085iKSP90,ZSP90..JPP..5F200508-201106

WD=1.4,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iKSP90..JPP..SOL200508

DK.GRAY,TRIM18,19

sub53601-52010

main53601-52010-B3iKSP90..JPP..SOL200508-201012

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iKSP90..JPP201012-201106

BLACK,TRIM1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iKSP90,ZSP90..JPP..5F200508-201106

TYPE A:REFER ILLUST.

main53614-52020iKSP90..JPP;ZSP90..JPP..LHD..5F200706-201106

TYPE B:REFER ILLUST.

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010iKSP90..JPP;ZSP90..JPP..LHD..6F200508-201106

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iKSP90..JPP;ZSP90..JPP..LHD..5F200508-201106

main53630-52140iZSP90..JPP..RHD..5F200611-201006

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

16 parts on this diagram · 2 diagrams in section
