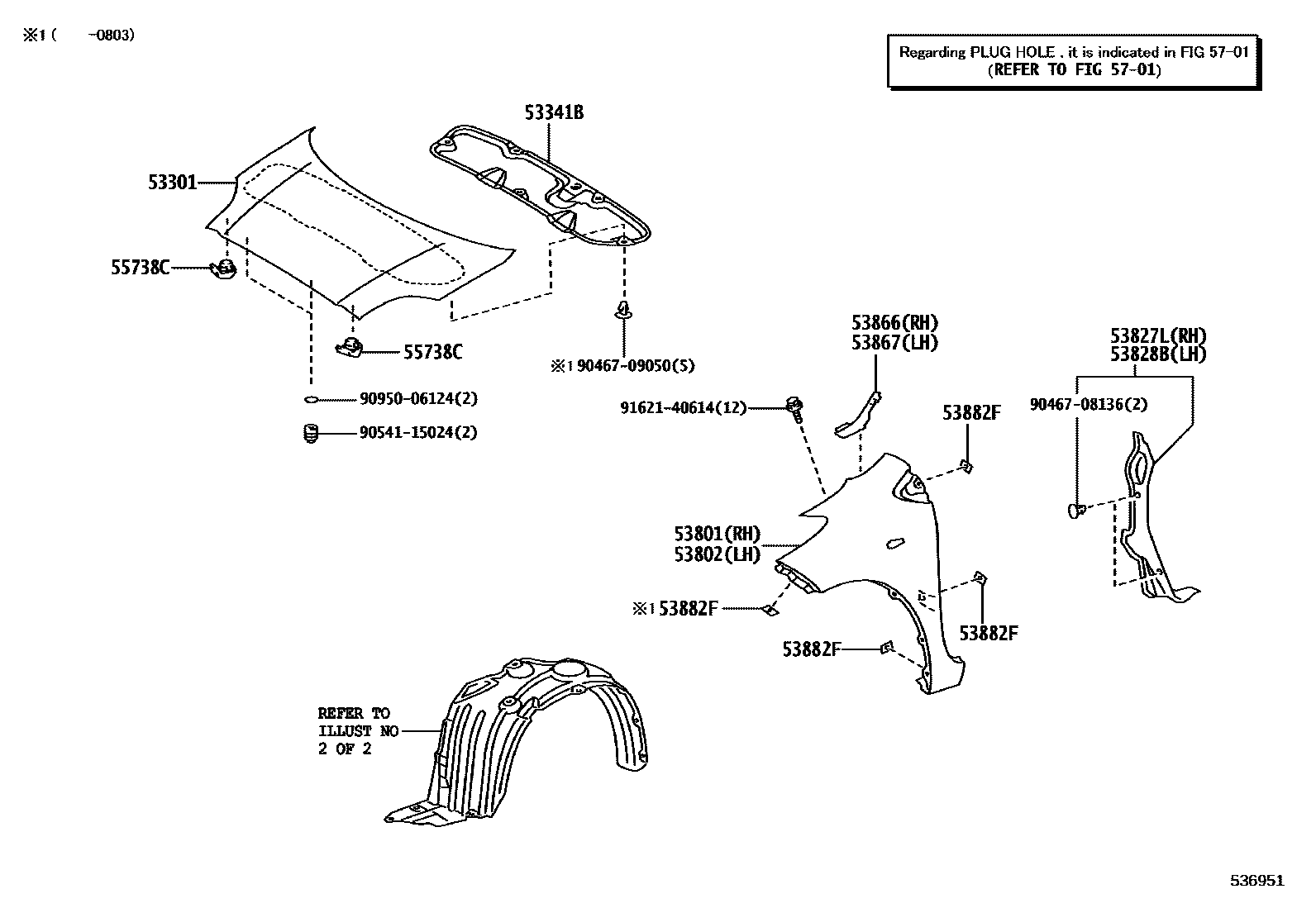

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52230iKSP90,ZSP90..JPP¥32,500200508-201108

53341BINSULATOR, HOOD

main53341-52130iKSP90..JPP..SOL¥4,260200508-201106

main53341-52160iZSP90..JPP..5F200611-201006

53801FENDER SUB-ASSY, FRONT RH

main53811-52210iKSP90,ZSP90..JPP¥27,300200508-201001

sub53811-52410¥27,300

main53811-52410iKSP90,ZSP90..JPP¥27,300201002-201108

53802FENDER SUB-ASSY, FRONT LH

main53812-52210iKSP90,ZSP90..JPP¥27,300200508-201001

sub53812-52380¥27,300

main53812-52380iKSP90,ZSP90..JPP¥27,300201002-201108

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52100iKSP90,ZSP90..JPP..5F..(SOL,TS)¥1,990200508-201006

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52120iKSP90,ZSP90..JPP..5F..(SOL,TS)¥1,990200508-201006

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52080iKSP90,ZSP90..JPP..5F¥590200508-201106

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52080iKSP90,ZSP90..JPP..5F¥590200508-201106

53882FSEAL, FRONT FENDER

main53882-16030iKSP90,ZSP90..JPP¥60200508-201106

55738CSTOPPER, HOOD, RH

main55738-52050iKSP90,ZSP90..JPP..5F¥280200508-201010

main55738-52060iKSP90..JPP¥390201011-201106

5701

9046708136

main90467-08136¥90

9046709050

main90467-09050¥120

9054115024

main90541-15024¥200

9095006124

main90950-06124¥90

9162140614

main91621-40614¥80

16 parts on this diagram · 2 diagrams in section
