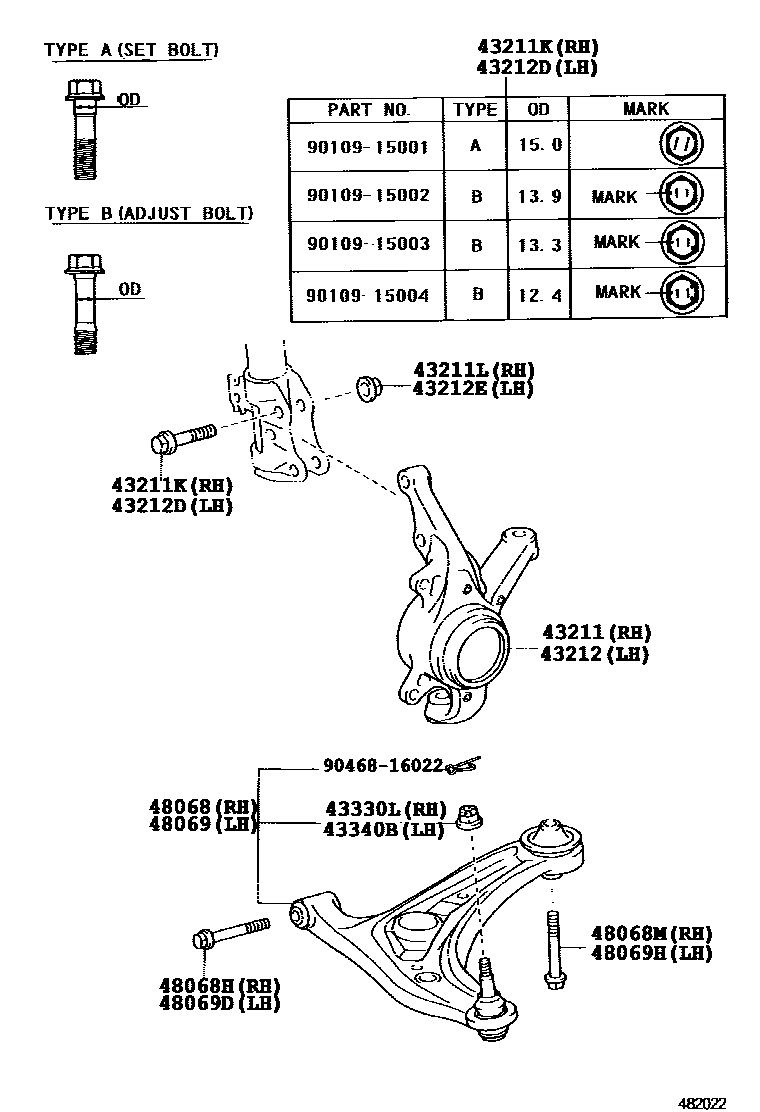

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15,TYPE A:REFER ILLUST.
OD=13.9,TYPE B:REFER ILLUST.
OD=13.3,TYPE B:REFER ILLUST.
OD=12.4,TYPE B:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15,TYPE A:REFER ILLUST.
OD=13.9,TYPE B:REFER ILLUST.
OD=13.3,TYPE B:REFER ILLUST.
OD=12.4,TYPE B:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
9046816022
main90468-16022
15 parts on this diagram · 1 diagram in section
