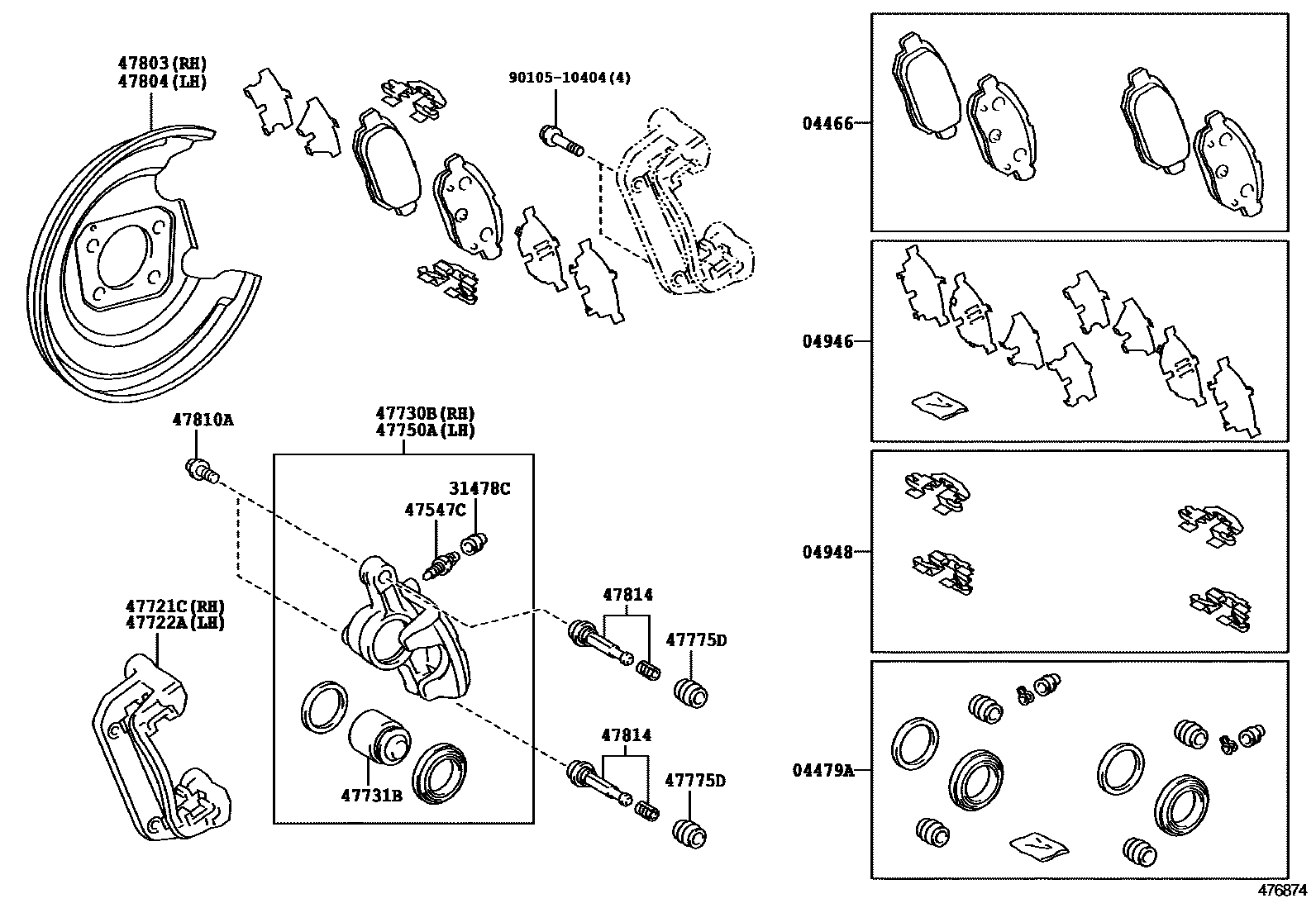

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12130iZSP90..JPP¥6,500200611-201006

MARK AK NS254

sub04466-12140¥6,500

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iZSP90..JPP¥1,620200611-201006

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12040iZSP90..JPP¥2,100200611-201006

sub04946-12110¥1,450

04948FITTING KIT, DISC BRAKE, REAR

main04948-52040iZSP90..JPP¥1,670200611-201006

sub04948-12060¥1,040

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZSP90..JPP¥160200611-201006

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZSP90..JPP¥220200611-201006

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iZSP90..JPP¥5,200200611-200710

main47821-12151iZSP90..JPP..5F¥5,200200710

REAR WHEEL BRAKE-DISK(BUILT-IN)

main47821-12151iZSP90..JPP¥5,200200809-201006

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iZSP90..JPP¥5,200200611-200710

main47821-12151iZSP90..JPP..5F¥5,200200710

REAR WHEEL BRAKE-DISK(BUILT-IN)

main47821-12151iZSP90..JPP¥5,200200809-201006

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52090iZSP90..JPP¥34,200200611-200809

sub47830-52161¥28,400

main47830-52161iZSP90..JPP¥28,400200809-201006

47731BPISTON, REAR DISC BRAKE

main47831-52090iZSP90..JPP¥670200611-201006

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52090iZSP90..JPP¥34,200200611-200809

sub47850-52161¥28,400

main47850-52161iZSP90..JPP¥28,400200809-201006

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZSP90..JPP..5F¥220200611-201006

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52010iZSP90..JPP¥1,980200611-200710

main47803-52030iZSP90..JPP..5F¥1,650200710

REAR WHEEL BRAKE-DISK(BUILT-IN)

main47803-52030iZSP90..JPP¥1,650200809-201006

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52010iZSP90..JPP¥1,980200611-200710

main47804-52030iZSP90..JPP..5F¥1,650200710

REAR WHEEL BRAKE-DISK(BUILT-IN)

main47804-52030iZSP90..JPP¥1,650200809-201006

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZSP90..JPP..5F¥90200611-201006

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150iZSP90..JPP..5F¥400200611-201006

9010510404

main90105-10404¥100

17 parts on this diagram · 1 diagram in section
