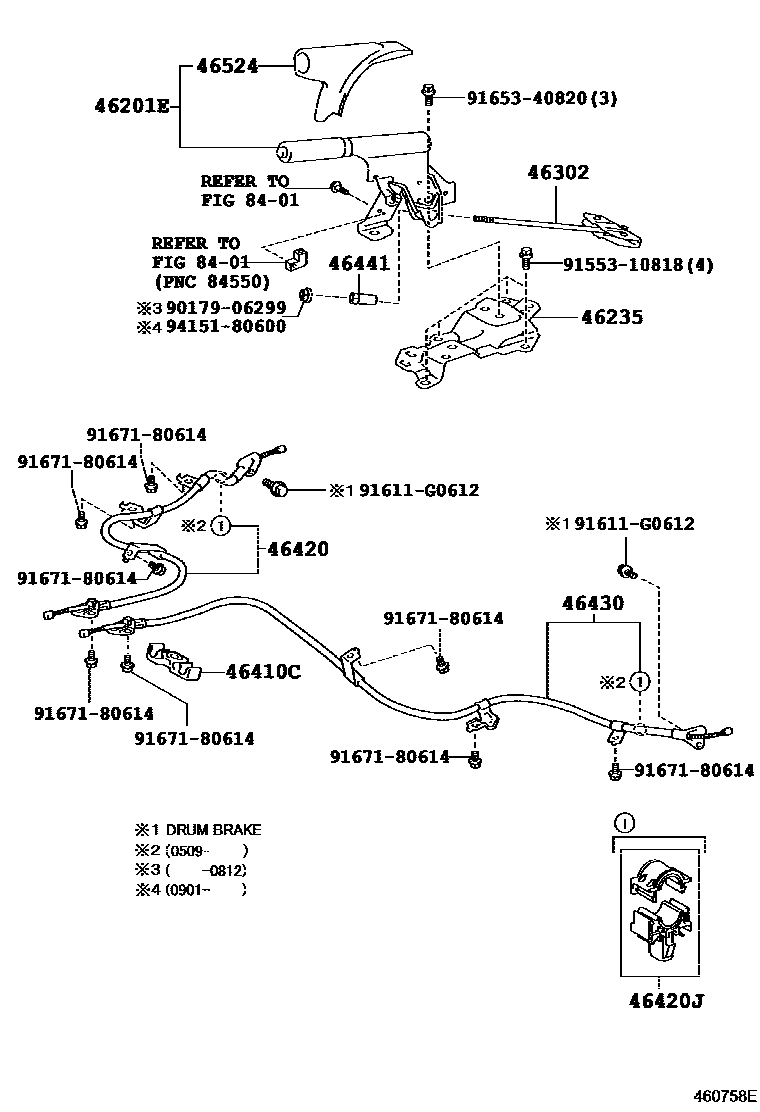

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
LUNA PACKAGE,DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
DK.GRAY,TRIM18,19
REAR WHEEL BRAKE-DISK(BUILT-IN),DK.GRAY,TRIM1#
LUNA PACKAGE&REAR WHEEL BRAKE-DISK(BUILT-IN),DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
REAR WHEEL BRAKE-DISK(BUILT-IN),DK.GRAY,TRIM18,19
46235BRACKET, PARKING BRAKE LEVER SUPPORT
46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46441NUT, WIRE ADJUSTING, NO.1
46524COVER, PARKING BRAKE DUST
8401
9017906299
main90179-06299
9155310818
main91553-10818
91611G0612
main91611-G0612
9165340820
main91653-40820
9167180614
main91671-80614
9415180600
main94151-80600
16 parts on this diagram · 1 diagram in section
