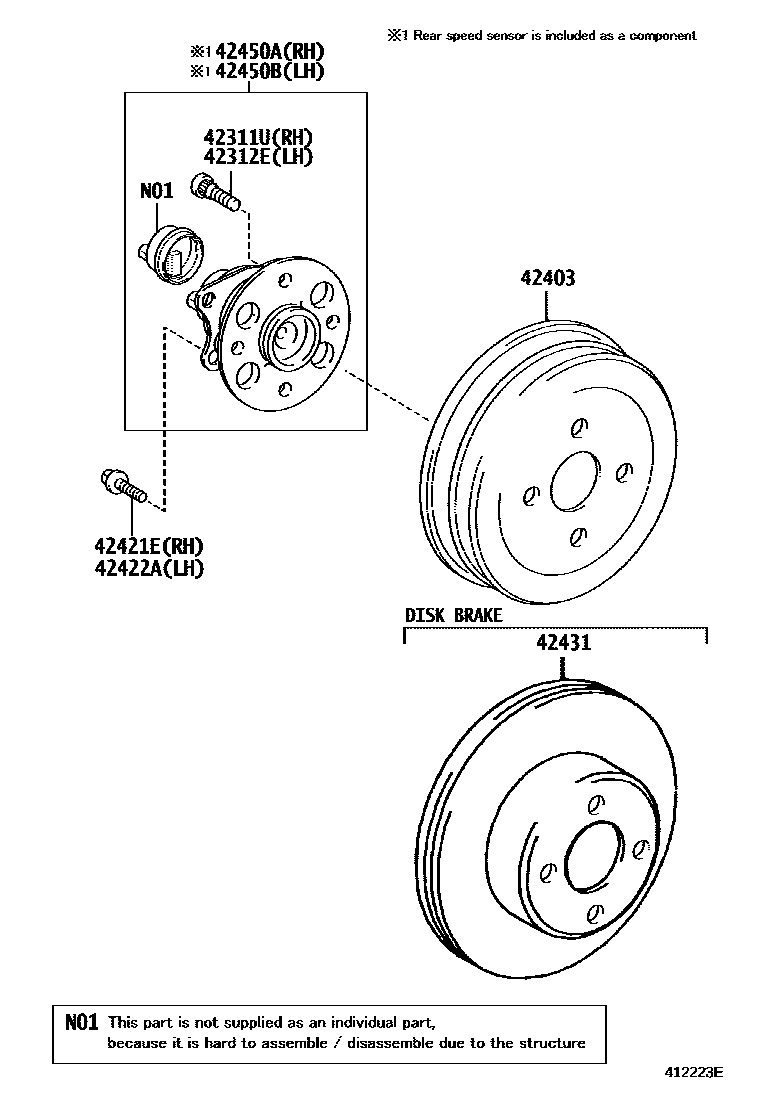

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iKSP90,ZSP90..JPP..5F¥240200508-201106

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iKSP90,ZSP90..JPP..5F¥240200508-201106

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070iKSP90..JPP¥6,500200508-201106

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iKSP90,ZSP90..JPP..5F¥160200508-201106

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iKSP90,ZSP90..JPP..5F¥160200508-201106

42431DISC, REAR

main42431-52080iZSP90..JPP..5F¥7,600200611-201006

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-52060iKSP90,ZSP90..JPP¥28,700200508-201108

sub42450-52061¥18,100

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-52060iKSP90,ZSP90..JPP¥28,700200508-201108

sub42450-52061¥18,100

8 parts on this diagram · 1 diagram in section
