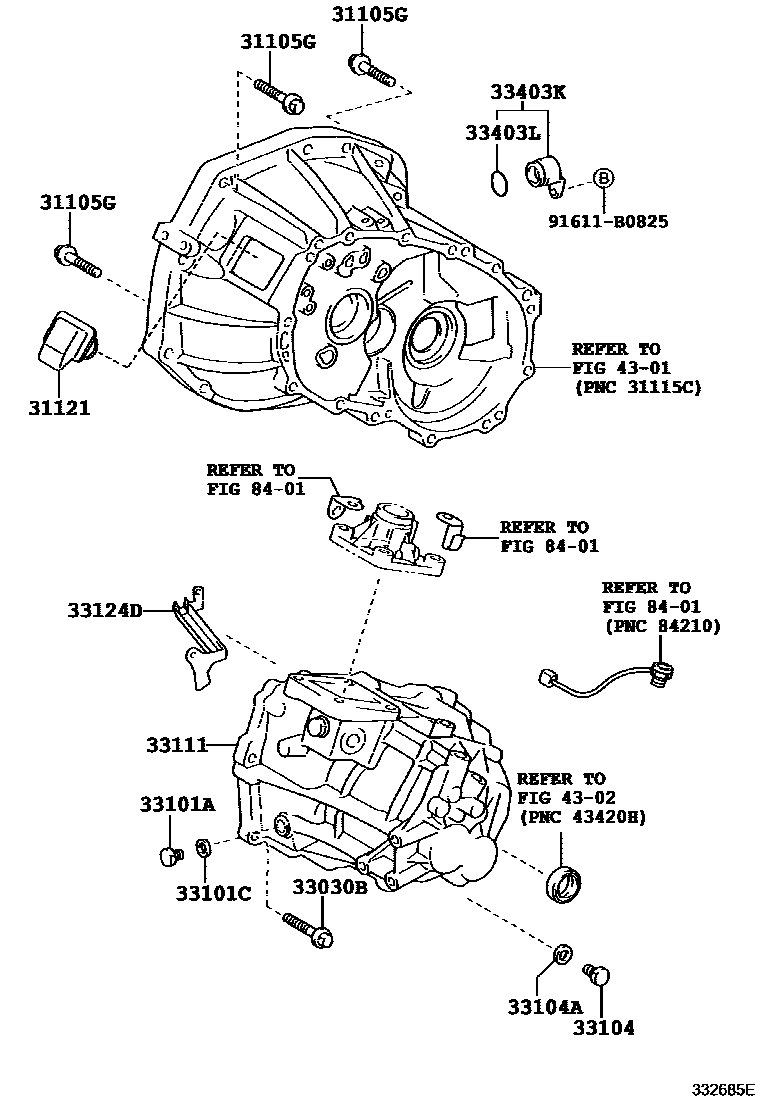

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C551 0002 1C56 0003 1EC67

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91552-81045iZSP90..JPP¥120200809-201006

*10-1.25PX45-26

main91612-61045iZSP90..JPP..5F¥120200611

*10-1.25PX45-30

main91619-61245iKSP90..JPP¥120200508-201108

*12-1.25PX45-30

main91622-61040iKSP90..JPP¥120200508-201108

*10-1.25PX40-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-52010iKSP90..JPP200508

main31121-52020iZSP90..JPP¥160200809-201006

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08261iKSP90..JPP¥100200508-201106

*8-1.25PX60-30

main90105-08333iKSP90..JPP¥130200508-201106

*8-1.25PX35-30

sub91551-C0835¥80

main90105-08353iZSP90..JPP¥100200611-200809

*8-1.25PX50-30

main90105-08430iZSP90..JPP¥100200611-200809

*8-1.25PX45-27.5

main91551-10840iZSP90..JPP¥80200809-201006

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZSP90..JPP¥210200809-201006

NO.1

main90341-18033iKSP90,ZSP90..JPP¥190200508-200809

main90341-18033iZSP90..JPP¥190200809-201006

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-14003iZSP90..JPP¥160200809-201006

NO.1

main90430-18008iKSP90,ZSP90..JPP¥110200508-200809

main90430-18008iZSP90..JPP¥110200809-201006

NO.2

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKSP90..JPP¥180200508-200808

main90341-18033iZSP90..JPP¥190200611-200809

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKSP90,ZSP90..JPP¥110200508-200809

33111CASE, MANUAL TRANSMISSION

main33111-12260iZSP90..JPP¥22,100200703-200809

main33111-20220iZSP90..JPP200809-201003

sub33111-20221¥43,700

main33111-20221iZSP90..JPP¥43,700201003-201006

sub33111-12291¥36,300

main33111-52050iKSP90..JPP¥35,000200508-200808

main33111-52120iZSP90..JPP¥35,000200611-200703

sub33111-12260¥22,100

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZSP90..JPP¥720200611-200809

main33124-52020iKSP90..JPP200508-200808

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iKSP90,ZSP90..JPP..5F¥1,180200508

33403LRING, O

main96711-24030iKSP90,ZSP90..JPP¥170200508-201108

4301

4302

8401

91611B0825

main91611-B0825¥160

15 parts on this diagram · 3 diagrams in section
