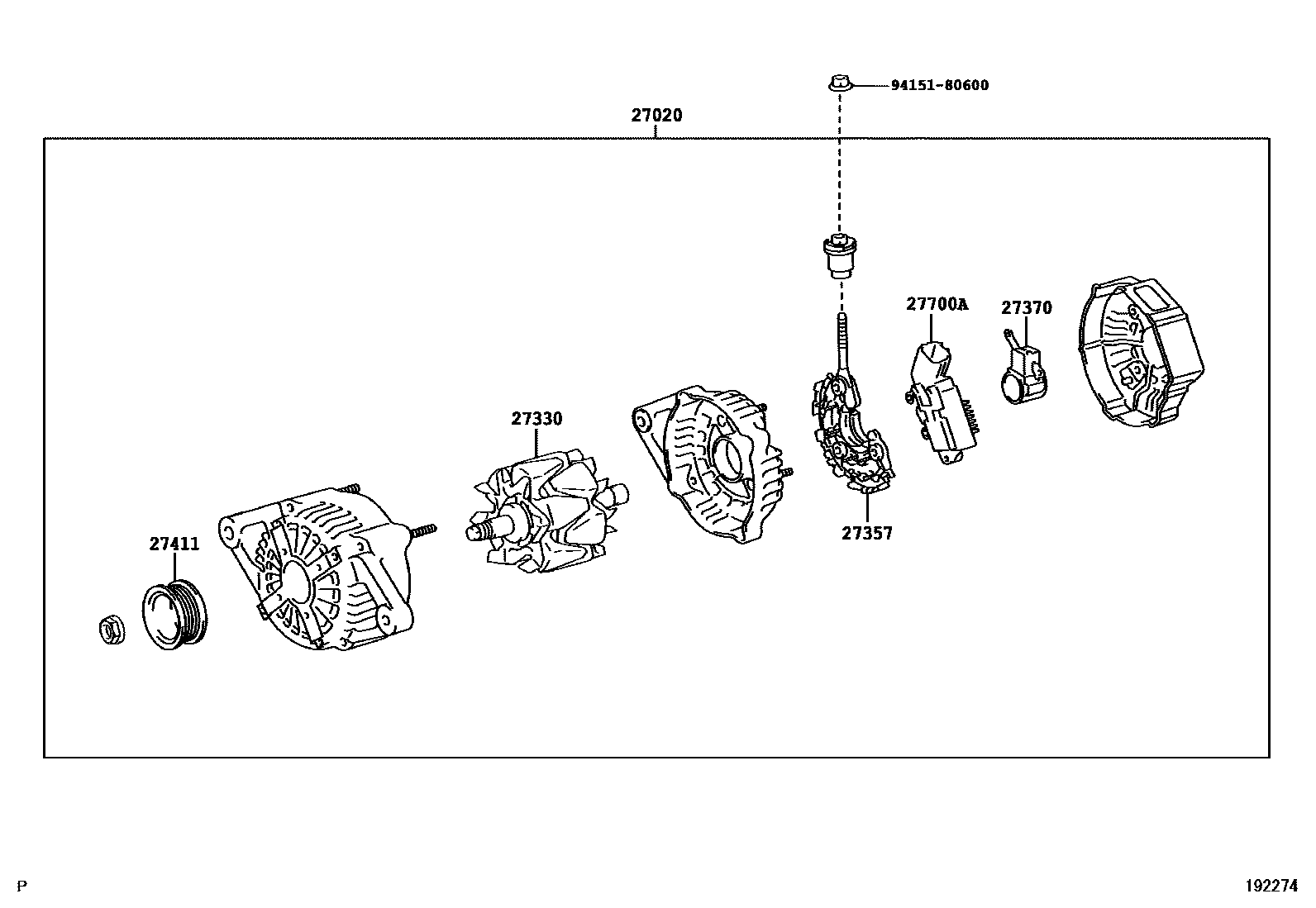

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-37010i2ZRFE..ZSP90..JPP200611-200902

12V 100A

sub27060-37011

main27060-37011i2ZRFE..ZSP90..JPP200903-201006

12V 100A

main27060-40020i1KRFE..KSP90..JPP200508-200808

12V 80A

main27060-40040i1KRFE..KSP90..JPP200808-200903

12V 80A

sub27060-40041

main27060-40041i1KRFE..KSP90..JPP200904-201106

12V 80A

main27060-40050i1KRFE..KSP90..JPP..LHD200808-200910

12V 100A,COLD SPEC=W(REAR HEATER DUCT)

main27060-40050i1KRFE..KSP90..JPP..LHD200808-200910

12V 100A,COLD SPEC=W/O(REAR HEATER DUCT)

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1KRFE..KSP90..JPP..LHD200808-200910

COLD SPEC=W(REAR HEATER DUCT)

main27330-30070i2ZRFE..ZSP90..JPP200611-201006

main27330-30070i1KRFE..KSP90..JPP..LHD200808-200910

COLD SPEC=W/O(REAR HEATER DUCT)

main27330-30130i1KRFE..KSP90..JPP200904-201106

main27330-62220i1KRFE..KSP90..JPP200508-200904

sub27330-30130

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1KRFE..KSP90..JPP200508-201106

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1KRFE..KSP90..JPP200508-201106

main27370-31220i1KRFE..KSP90..JPP..LHD200808-200910

COLD SPEC=W/O(REAR HEATER DUCT)

main27370-31220i1KRFE..KSP90..JPP..LHD200808-200910

COLD SPEC=W(REAR HEATER DUCT)

main27370-31220i2ZRFE..ZSP90..JPP200611-201006

27411PULLEY, ALTERNATOR

main27411-40080i1KRFE..KSP90..JPP200508-201106

27700AREGULATOR ASSY, GENERATOR

main27700-40040i1KRFE..KSP90..JPP200808-201106

main27700-75030i1KRFE..KSP90..JPP200508

9415180600

main94151-80600

7 parts on this diagram · 3 diagrams in section
