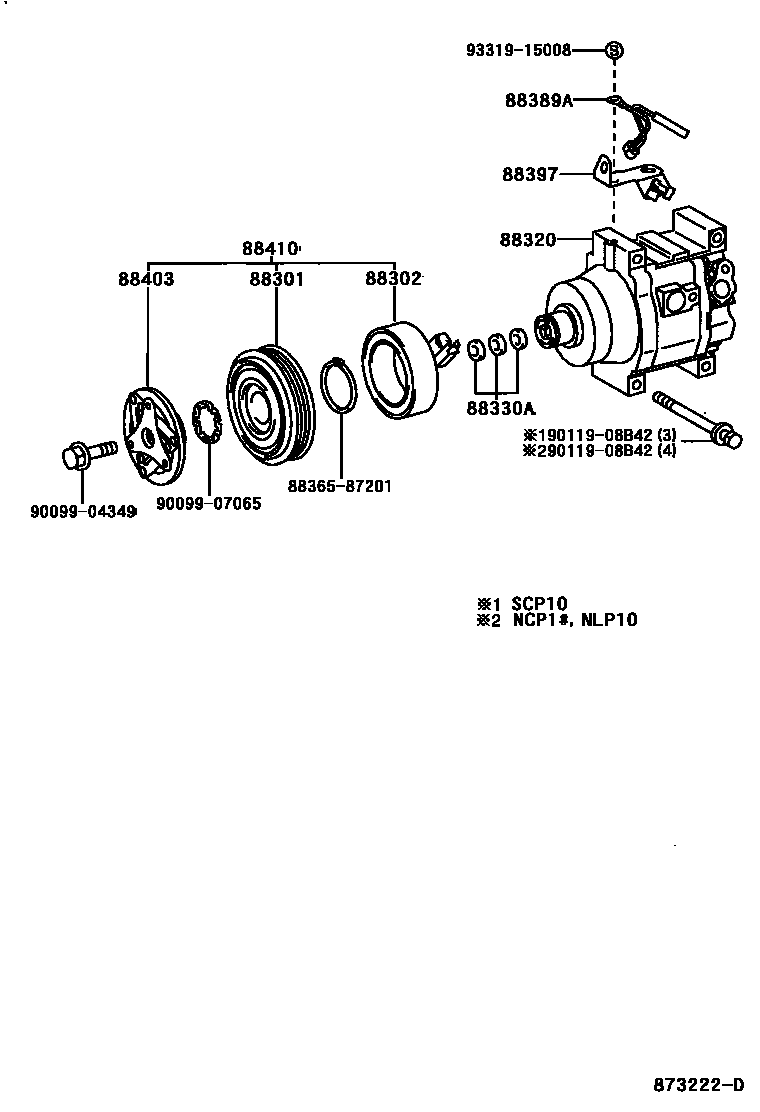

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

ALTERNATOR 12V 80A OR 12V 90A

main88412-52020iSCP10..JPP..TSGS199911-200011

main88412-52020iSCP10..JPP..(LUNA,TRSTD)199901-200011

ALTERNATOR 12V 70A

main88412-52030iNCP10..JPP199908-200008

main88412-52060iSCP10..JPP..(LUNA,SOL,TRSTD)200011-200212

main88412-52070iNCP1#..JPP200008-200212

W(MANUAL AIR CONDITIONER)

main88412-52080iSCP10..JPP..TSGS199912-200212

W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION)

main88412-52080iSCP10..JPP..(LUNA,TRSTD)200011-200212

W(MANUAL AIR CONDITIONER(DOP))

main88412-52090iNLP10..JPP200110-200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

main88411-1A050iNLP10..JPP200110-200212

main88411-1A050iNCP1#,SCP10..JPP200011-200212

W(MANUAL AIR CONDITIONER)

88320COMPRESSOR ASSY, COOLER

main88320-52010iNCP1#,SCP10..JPP199901-200208

main88320-52010iNCP1#,SCP10..JPP200208-200212

DEALER OPTION

main88320-52080iNLP10..JPP200110-200508

main88320-52090iNCP13..JPP200308-200508

DEALER OPTION

main88320-52120iNCP13..JPP200304-200308

MAKER OPTION

main88320-52160iSCP10..JPP..(LUNA,SOL,TRSTD)200208-200212

MAKER OPTION

main88320-52340iNCP13..JPP200212-200304

MAKER OPTION

main88320-52340iNCP1#..JPP200208-200212

main88320-52400iNCP13..JPP200308-200508

MAKER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iNCP1#,NLP10,SCP10..JPP199901-200508

88389AWIRE, COMPRESSOR

main88389-10020iNCP1#..JPP199908-200208

MAKER OPTION

main88389-52010iSCP10..JPP199901-200212

main88389-52020iNCP1#..JPP199908-200212

DEALER OPTION

88397CLIP, SENSOR

main88397-52010iSCP10..JPP199901-200212

main88397-52020iNCP1#..JPP199908-200212

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iNCP10,SCP10..JPP199901-200212

main88403-1A020iNLP10..JPP200110-200212

main88403-1A020iNCP1#,SCP10..JPP200011-200212

W(MANUAL AIR CONDITIONER)

88410CLUTCH ASSY, MAGNET

main88410-2B260iNCP13..JPP200304-200308

sub88410-2B261

main88410-2B280iNCP13..JPP200308-200508

main88410-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200011

ALTERNATOR 12V 80A OR 12V 90A

sub88410-52070

main88410-52020iSCP10..JPP..(LUNA,TRSTD)199901-200011

ALTERNATOR 12V 70A

sub88410-52090

main88410-52020iSCP10..JPP..TSGS199911-200011

sub88410-52090

main88410-52030iNCP10..JPP199908-200008

sub88410-52080

main88410-52070iSCP10..JPP..(LUNA,SOL,TRSTD)200008-200212

main88410-52080iNCP1#..JPP200008-200208

main88410-52090iSCP10..JPP..(LUNA,TRSTD,TSGS)199912-200212

W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION)

main88410-52100iNLP10..JPP200110-200208

main88410-52160iNCP13..JPP200208-200304

main88410-52171iNLP10..JPP200208-200308

main88410-52240iNCP13..JPP200308-200508

DEALER OPTION

main88410-52250iNLP10..JPP200308-200508

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

9331915008

main93319-15008

13 parts on this diagram · 3 diagrams in section
