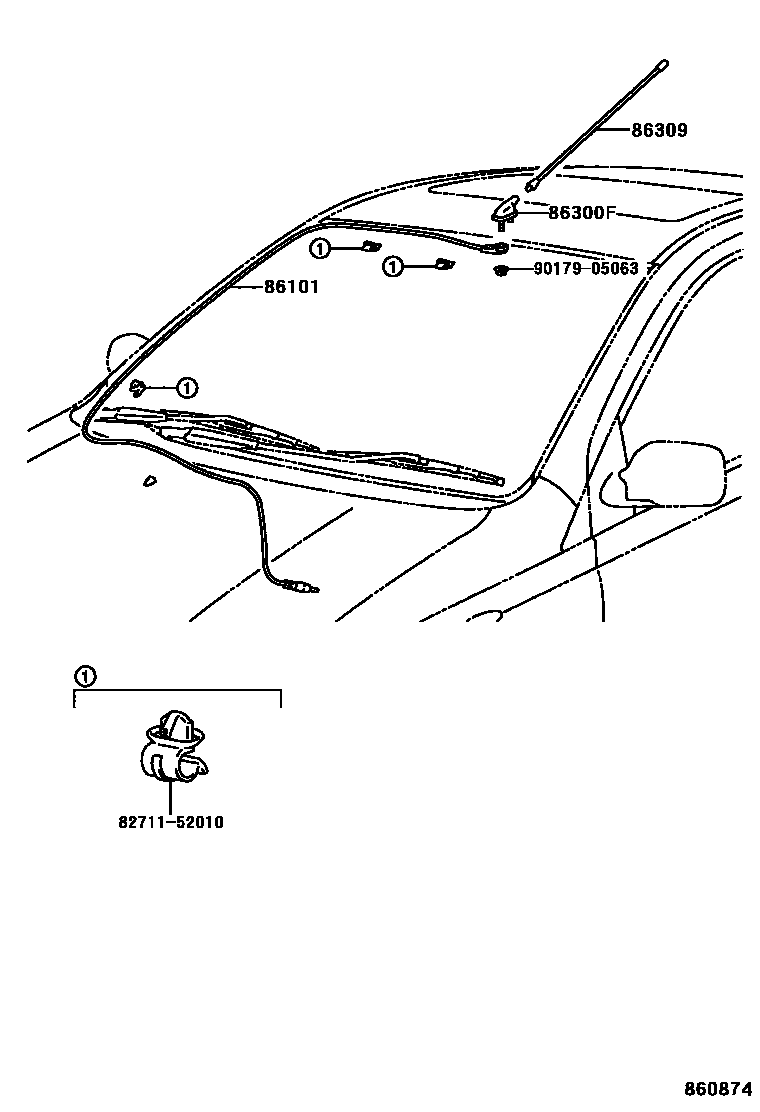

ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-0W010iNCP1#,NLP10,SCP10..JPP..RHD199901-200212

main86101-0W020iNCP1#,NLP10,SCP10..JPP..LHD199901-200212

main86101-52120iNCP13,NLP10..JPP200212

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-0W020iNCP1#,NLP10,SCP10..JPP199901-200212

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-0W020iNCP1#,NLP10,SCP10..JPP199901-200111

sub86309-0W040

main86309-0W040iNCP1#,NLP10,SCP10..JPP200111-200212

8271152010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52010

9017905063

main90179-05063

5 parts on this diagram · 4 diagrams in section
