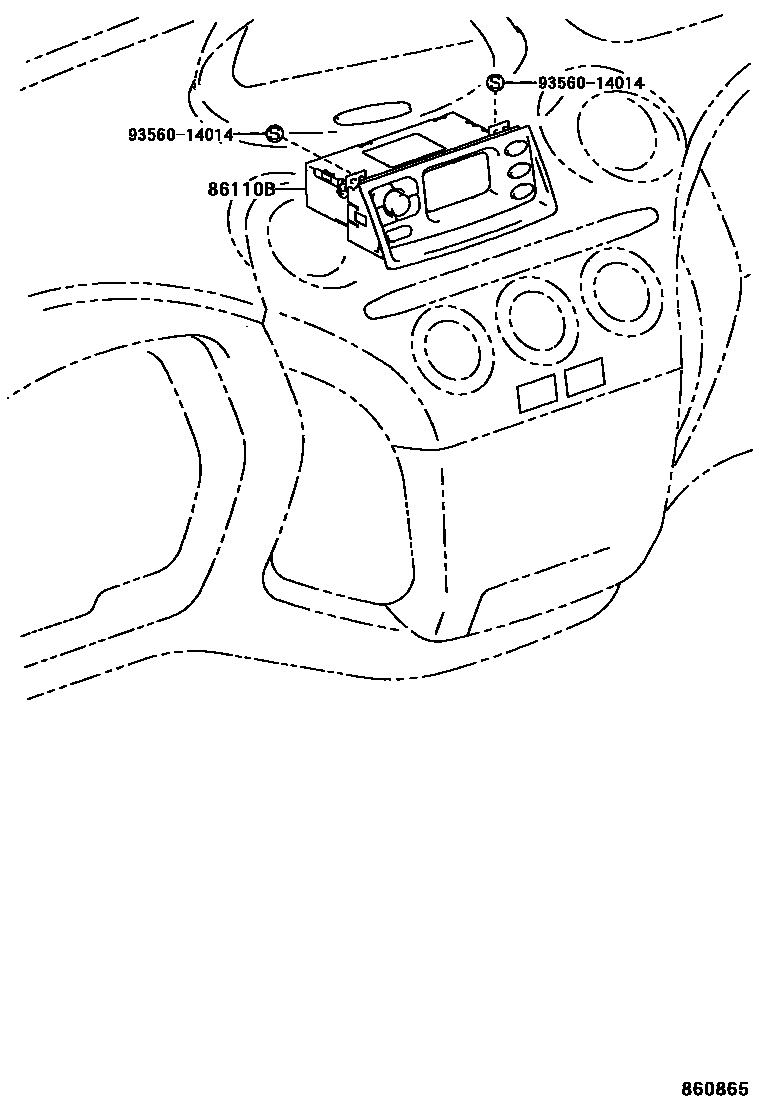

NAVIGATION & FRONT MONITOR DISPLAY

86110BMULTI-DISPLAY ASSY

main86110-52010-B0iSCP10..JPP..TSGS199911-199912

PANASONIC,SHADOW GRAY,TRIM1#

sub86110-52011

main86110-52010-B0iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-199912

PANASONIC,W(2 SPEAKER),SHADOW GRAY,TRIM1#

sub86110-52011

main86110-52010-H0iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-199912

PANASONIC,W(2 SPEAKER),FRENCH TURQUOISE,TRIM7#

sub86110-52011

main86110-52010-H0iSCP10..JPP..TSGS199911-199912

PANASONIC,FRENCH TURQUOISE,TRIM7#

sub86110-52011

main86110-52011-B0iNCP13..JPP200101-200201

PANASONIC,W(2 SPEAKER),SHADOW GRAY,TRIM9#

sub86110-52012

main86110-52011-B0iNCP10,NLP10,SCP10..JPP199912-200201

PANASONIC,W(2 SPEAKER),SHADOW GRAY,TRIM1#

sub86110-52012

main86110-52011-H0iNCP10,NLP10,SCP10..JPP199912-200201

PANASONIC,W(2 SPEAKER),FRENCH TURQUOISE,TRIM7#

sub86110-52012

main86110-52012-B0iNCP13..JPP200201-200212

PANASONIC,W(2 SPEAKER),SHADOW GRAY,TRIM9#

main86110-52012-B0iNCP13..JPP200201-200212

PANASONIC,W(2 SPEAKER),SHADOW GRAY,TRIM1#

main86110-52012-H0iNCP10,NLP10,SCP10..JPP200201-200212

PANASONIC,W(2 SPEAKER),FRENCH TURQUOISE,TRIM7#

main86110-52020-B0iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-199912

PANASONIC,W(4 SPEAKER),SHADOW GRAY,TRIM1#

sub86110-52021

main86110-52020-H0iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-199912

PANASONIC,W(4 SPEAKER),FRENCH TURQUOISE,TRIM7#

sub86110-52021

main86110-52021-B0iNCP13..JPP200101-200201

PANASONIC,W(4 SPEAKER),SHADOW GRAY,TRIM9#

sub86110-52022

main86110-52021-B0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199912-200201

PANASONIC,W(4 SPEAKER),SHADOW GRAY,TRIM1#

sub86110-52022

main86110-52021-H0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199912-200201

PANASONIC,W(4 SPEAKER),FRENCH TURQUOISE,TRIM7#

sub86110-52022

main86110-52022-B0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)200201-200212

PANASONIC,W(4 SPEAKER),SHADOW GRAY,TRIM9#

main86110-52022-B0iNCP13..JPP200201-200212

PANASONIC,W(4 SPEAKER),SHADOW GRAY,TRIM1#

main86110-52022-H0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)200201-200212

PANASONIC,W(4 SPEAKER),FRENCH TURQUOISE,TRIM7#

main86110-52130-B0iNLP10..JPP200212-200508

PANASONIC,W(2 SPEAKER),DK.GRAY,TRIM9#

main86110-52140-B0iNCP13,NLP10..JPP200212-200508

PANASONIC,W(4 SPEAKER),DK.GRAY,TRIM9#

9356014014

main93560-14014

2 parts on this diagram · 1 diagram in section
