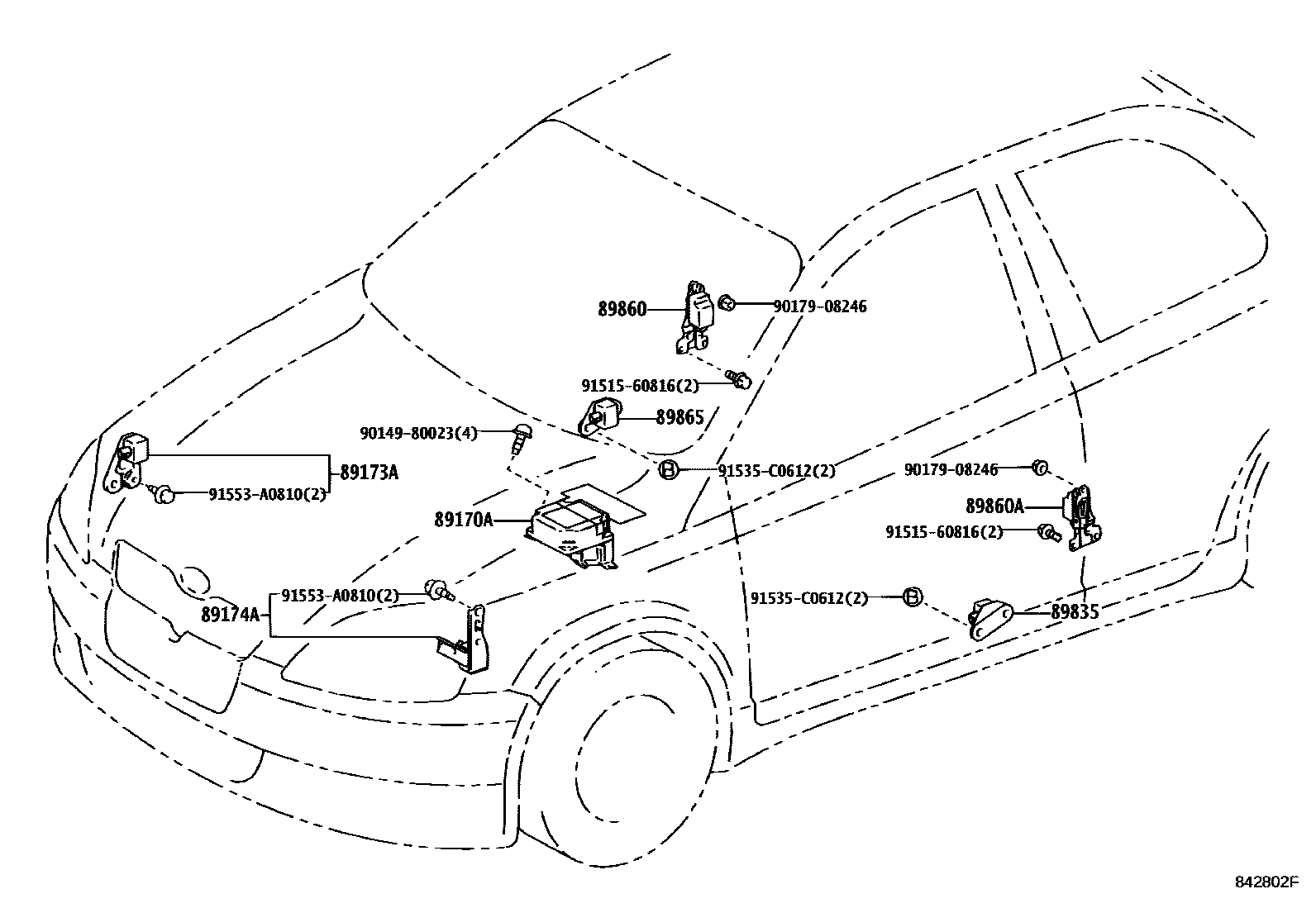

AIR BAG

0001 1 0002 1 0003 1 0004 1

89170ACOMPUTER ASSY, AIRBAG

main89170-0D010iNCP1#,NLP10,SCP10..JPP..3D200112-200212

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D020iNCP1#,NLP10,SCP10..JPP..5D200112-200212

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D070iNLP10..JPP200212-200508

main89170-0D080iNLP10..JPP200212-200508

*80,DRIVER SIDE & PASSENGER SIDE

main89170-0D090iNLP10..JPP..3D200212-200508

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D100iNLP10..JPP..5D200212-200508

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-52030iNCP1#,SCP10..JPP¥113,000199901-200112

*80,DRIVER SIDE

main89170-52030iNLP10..JPP¥113,000200110-200112

main89170-52040iNCP1#,NLP10,SCP10..JPP¥113,000199901-200112

*80,DRIVER SIDE & PASSENGER SIDE

main89170-52090iNCP1#,NLP10,SCP10..JPP..3D¥113,000199908-200112

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-52100iNCP1#,NLP10,SCP10..JPP..5D¥113,000199908-200112

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-52130iNCP1#,NLP10,SCP10..JPP¥113,000200112-200212

*80,DRIVER SIDE

main89170-52140iNCP1#,NLP10,SCP10..JPP¥113,000200112-200212

*80,DRIVER SIDE & PASSENGER SIDE

main89170-52440iNCP13..JPP¥113,000200212-200508

main89170-52450iNCP13..JPP¥113,000200212-200508

*80,DRIVER SIDE & PASSENGER SIDE

main89170-52460iNCP13..JPP¥113,000200212-200508

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

89173ASENSOR, AIRBAG, FRONT RH

main89173-59055iNCP10,SCP10..JPP¥23,500199901-200101

sub89173-59125¥23,500

main89173-59125iNCP1#,NLP10,SCP10..JPP¥23,500200101-200208

sub89173-59225¥13,200

sub82821-30580¥200

main89173-59225iNCP1#,NLP10,SCP10..JPP¥13,200200208-200212

89174ASENSOR, AIRBAG, FRONT LH

main89174-59015iNCP10,SCP10..JPP¥23,500199901-200101

sub89174-59065¥23,500

main89174-59065iNCP1#,NLP10,SCP10..JPP¥23,500200101-200208

sub89174-59155¥13,200

main89174-59155iNCP1#,NLP10,SCP10..JPP¥13,200200208-200212

89835SENSOR, DOOR SIDE AIRBAG, LH

main89835-52010iNLP10..JPP..3D¥10,100199908-200212

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-0D010iNCP1#,NLP10,SCP10..JPP..3D200112-200212

main89860-0D020iNCP1#,NLP10,SCP10..JPP..5D200112-200212

main89860-0D050iNLP10..JPP..3D¥64,800200212

main89860-0D060iNLP10..JPP..5D¥64,800200212

main89860-52020iNCP1#,NLP10,SCP10..JPP..3D¥24,900199908-200112

main89860-52030iNCP1#,NLP10,SCP10..JPP..5D¥24,900199908-200112

main89860-52060iNCP13..JPP..3D¥24,900200212

main89860-52070iNCP13..JPP..5D¥24,900200212

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-0D010iNCP1#,NLP10,SCP10..JPP..3D200112-200212

main89830-0D020iNCP1#,NLP10,SCP10..JPP..5D200112-200212

main89830-52020iNCP1#,NLP10,SCP10..JPP..3D¥24,900199908-200112

main89830-52030iNCP1#,NLP10,SCP10..JPP..5D¥24,900199908-200112

main89860-0D050iNLP10..JPP..3D¥64,800200212

main89860-0D060iNLP10..JPP..5D¥64,800200212

main89860-52060iNCP13..JPP..3D¥24,900200212

main89860-52070iNCP13..JPP..5D¥24,900200212

89865SENSOR, DOOR SIDE AIRBAG, RH

main89865-52010iNCP1#,NLP10,SCP10..JPP..3D¥10,100199908-200212

9014980023

main90149-80023¥120

9017908246

main90179-08246¥130

9151560816

main91515-60816¥140

91535C0612

main91535-C0612¥110

91553A0810

main91553-A0810¥80

12 parts on this diagram · 4 diagrams in section
