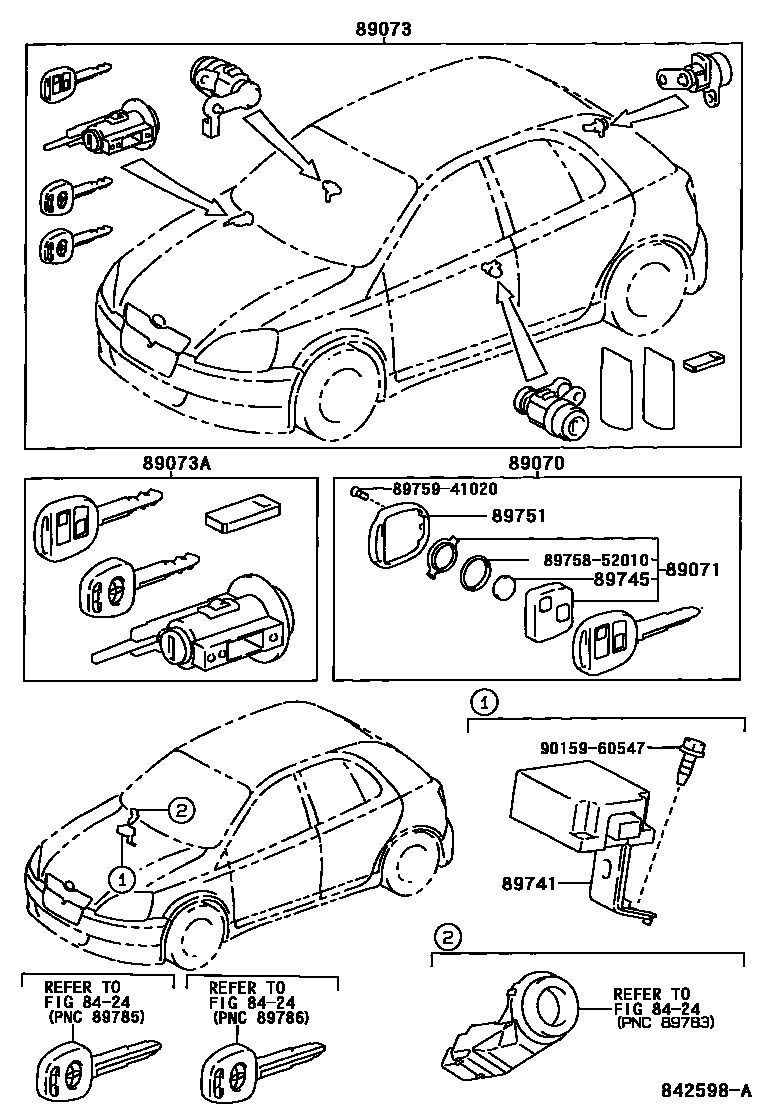

WIRELESS DOOR LOCK
8424
89070TRANSMITTER ASSY, DOOR CONTROL
W(ENGINE IMMOBILIZER SYSTEM)
sub89070-47102
main89070-52081iNLP10..JPP..RHD;NLP10..JPP..LHD..5D..TRSTD;NLP10..JPP..LHD..(LUNA,SOL);NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)¥19,400199908-200206
FRANCE SPEC
HONG KONG SPEC
FINLAND,ITALY OR POLAND SPEC
DENMARK SPEC OR SWITZERLAND SPEC
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
W(DOUBLE-LOCK)
HONG KONG SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
sub89073-52061
FRANCE SPEC
HONG KONG SPEC
FINLAND,ITALY OR POLAND SPEC
sub89073-52131
FINLAND,ITALY OR POLAND SPEC
DENMARK SPEC OR SWITZERLAND SPEC
sub89073-52141
DENMARK SPEC OR SWITZERLAND SPEC
W(DOUBLE-LOCK)
HONG KONG SPEC
W(DOUBLE-LOCK)
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
sub89073-52011
HONG KONG SPEC
FINLAND,ITALY OR POLAND SPEC
sub89073-52011
DENMARK SPEC OR SWITZERLAND SPEC
sub89073-52011
W(DOUBLE-LOCK)
HONG KONG SPEC
W(DOUBLE-LOCK)
89745BATTERY, TRANSMITTER
89751COVER, TRANSMITTER HOUSING
W(DOUBLE-LOCK)
HONG KONG SPEC
8975852010PACKING, DOOR CONTROL TRANSMITTER
8975941020SCREW, DOOR CONTROL TRANSMITTER
9015960547
11 parts on this diagram · 2 diagrams in section
