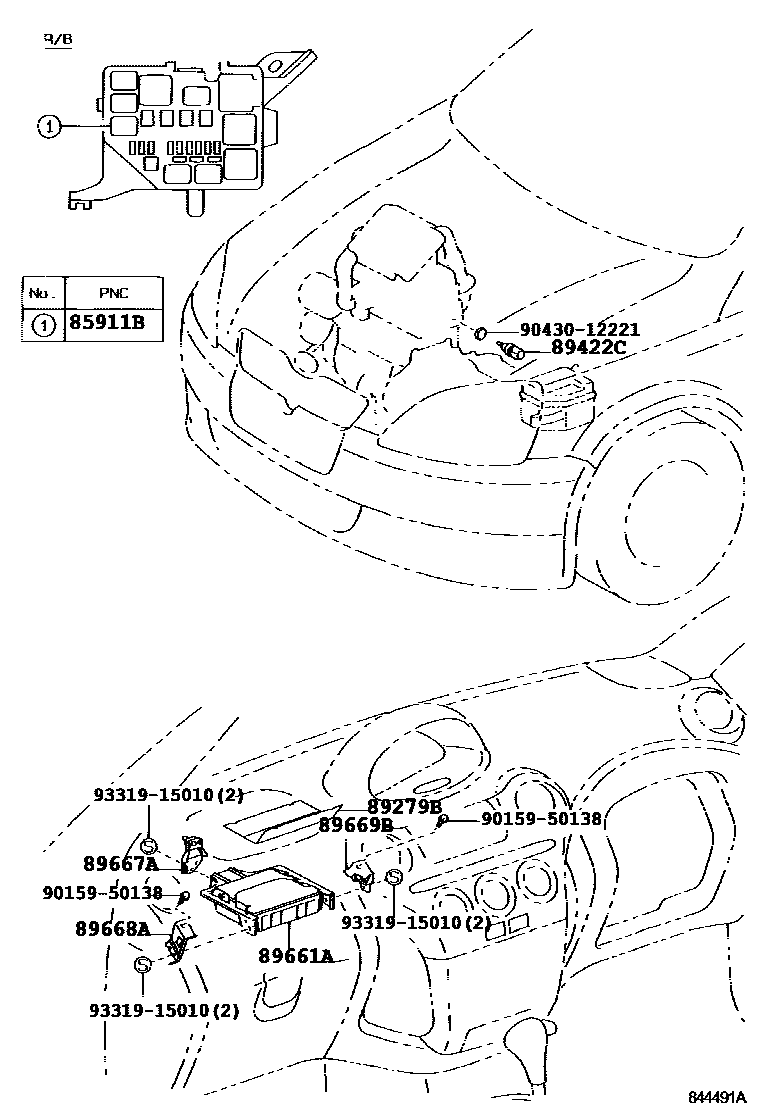

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85911BRELAY, COMPUTER (FOR DIESEL TURBO)

main90987-02012iNLP10..JPP200110-200112

main90987-02022iNLP10..JPP200112-200212

main90987-02027iNLP10..JPP200212

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-52050iNLP10..JPP200110-200212

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-16010iNLP10..JPP200110-200212

main89422-35010iNLP10..JPP200212

89661ACOMPUTER, ENGINE CONTROL

main89661-52200iNLP10..JPP200110-200212

main89661-52890iNLP10..JPP200212-200312

sub89661-52892

main89661-52891iNLP10..JPP200312

sub89661-52K60

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52030iNLP10..JPP..RHD200110-200212

main89667-52100iNLP10..JPP..LHD200110-200212

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52030iNLP10..JPP..RHD200110-200212

main89668-52110iNLP10..JPP..LHD200110-200212

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52030iNLP10..JPP..RHD200110-200212

main89669-52060iNLP10..JPP..LHD200110-200212

9015950138

main90159-50138

9043012221

main90430-12221

9331915010

main93319-15010

10 parts on this diagram · 2 diagrams in section
