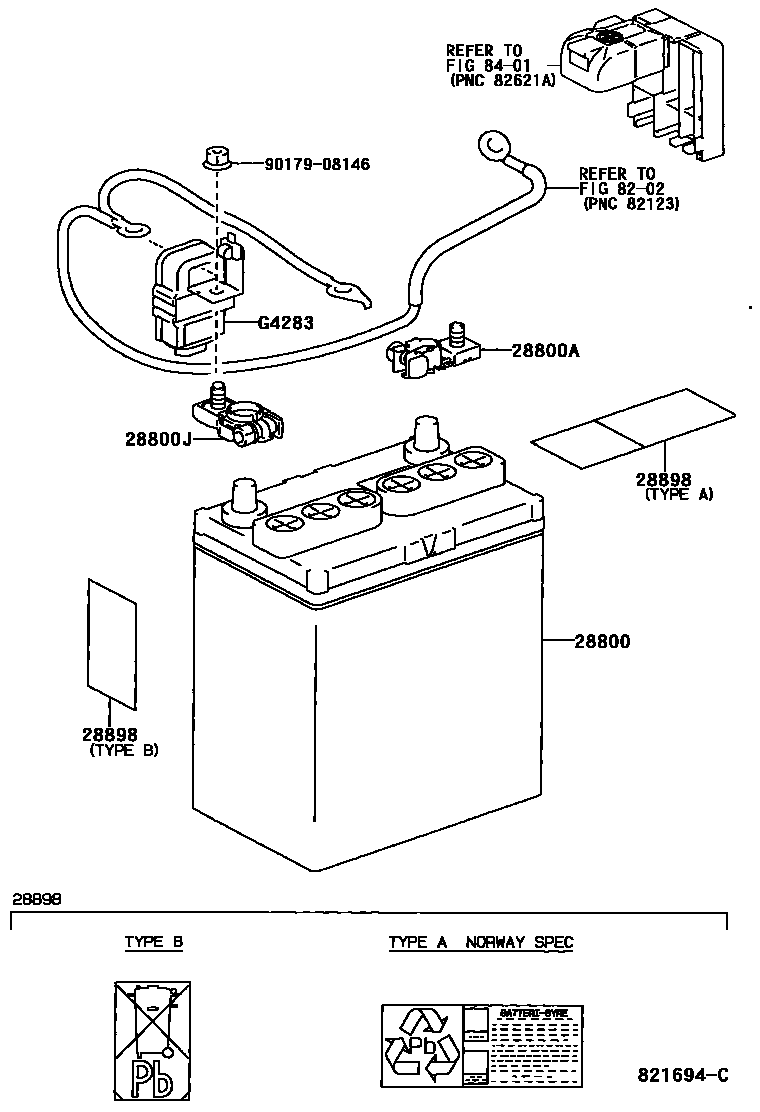

BATTERY & BATTERY CABLE

28800BATTERY

main28800-11291i1SZFE..SCP10..JPP..TSGS199911-200104

55D23R,MATSUSHITA

main28800-11331i1SZFE..SCP10..JPP..TSGS199911-200104

55D23R,FURUKAWA

sub28800-11900

main28800-15022i1NDTV..NLP10..JPP;1SZFE..SCP10..JPP..TSGS200104-200508

55D23R,YUASA

sub28800-15021

main28800-21070i1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)..5F199901-200508

34B19R(S)

main28800-21100i1NZFE..NCP13..JPP199908-200508

46B24R(S),MATSUSHITA

main28800-46160i1NDTV..NLP10..JPP;1SZFE..SCP10..JPP..TSGS200104-200508

55D23R,FURUKAWA

sub28800-15021

main28800-54231i1NDTV..NLP10..JPP200212-200508

80D26R

sub28800-67131

main28800-64132i1NDTV..NLP10..JPP200110-200212

80D26L

sub28800-54020

main28800-74230i1SZFE..SCP10..JPP199901-199908

46B24R(S)

main28800-74231i1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200508

46B24R(S),FURUKAWA

sub28800-47090

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP199901-200212

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1SZFE..SCP10..JPP..TSGS199911-200212

28898PLATE, BATTERY

main28898-46010i1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)199901-200212

TYPE A:REFER TO ILLUSTRATION, NORWAY SPEC

main28898-46020i1N#..NCP13,NLP10..JPP199901-200212

TYPE B:REFER TO ILLUSTRATION

8202

8401

G4283SENSOR, BATTERY CURRENT

mainG428352010iSCP10..JPP..TSGS199911-200212

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
