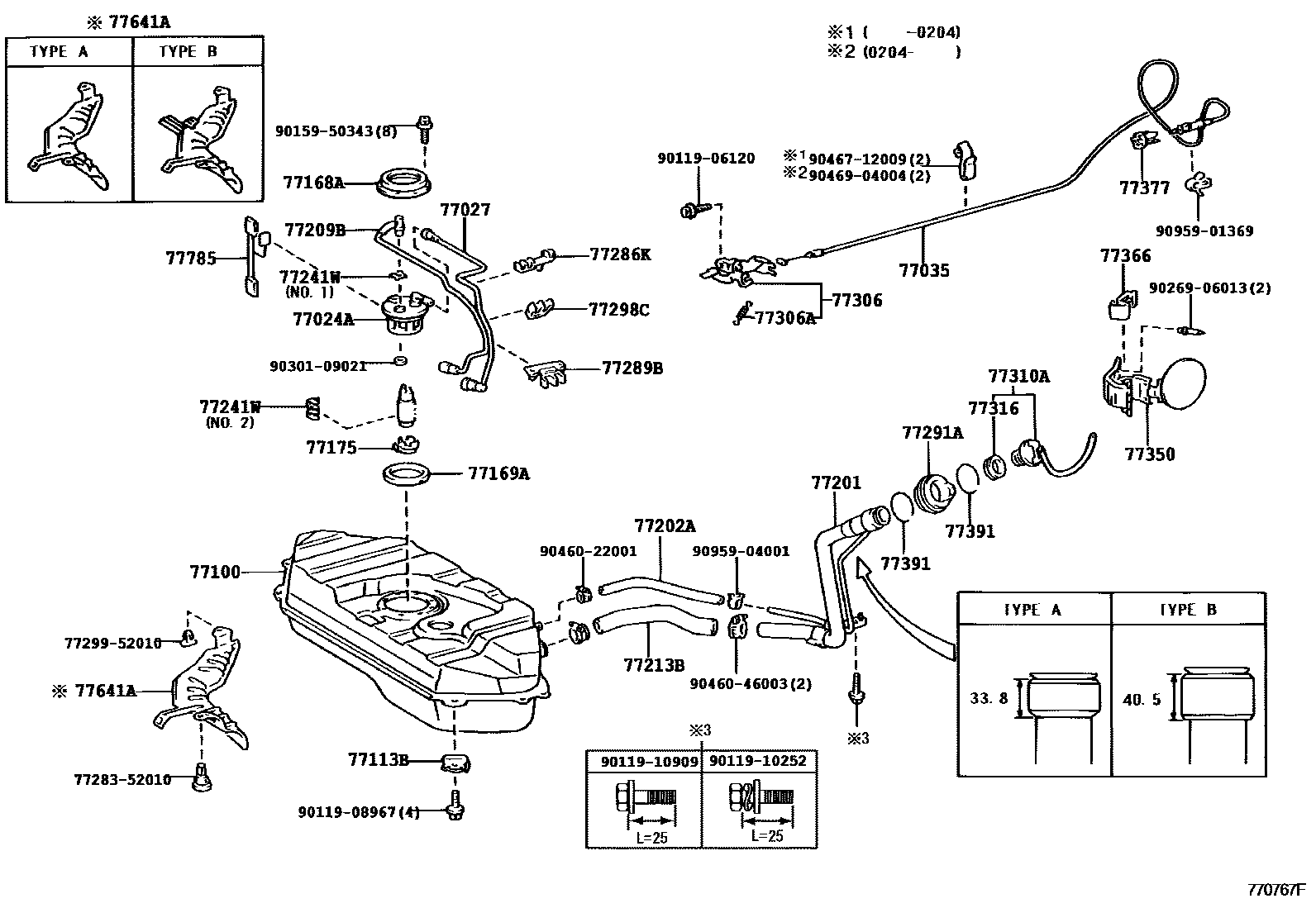

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=360
L=360
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
NO.1
NO.2
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77298CCLAMP, FUEL TUBE, NO.4
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77641APROTECTOR, FUEL TANK, NO.1
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
77785HARNESS, FUEL PUMP
7728352010BRACKET, FUEL TUBE
main77283-52010
7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52010
9011906120
main90119-06120
9011908967
main90119-08967
9011910252
main90119-10252
9011910909
main90119-10909
9015950343
main90159-50343
9026906013
main90269-06013
9030109021
main90301-09021
9046022001
main90460-22001
9046046003
main90460-46003
9046712009
main90467-12009
9046904004
main90469-04004
9095901369
main90959-01369
9095904001
main90959-04001
42 parts on this diagram · 4 diagrams in section
