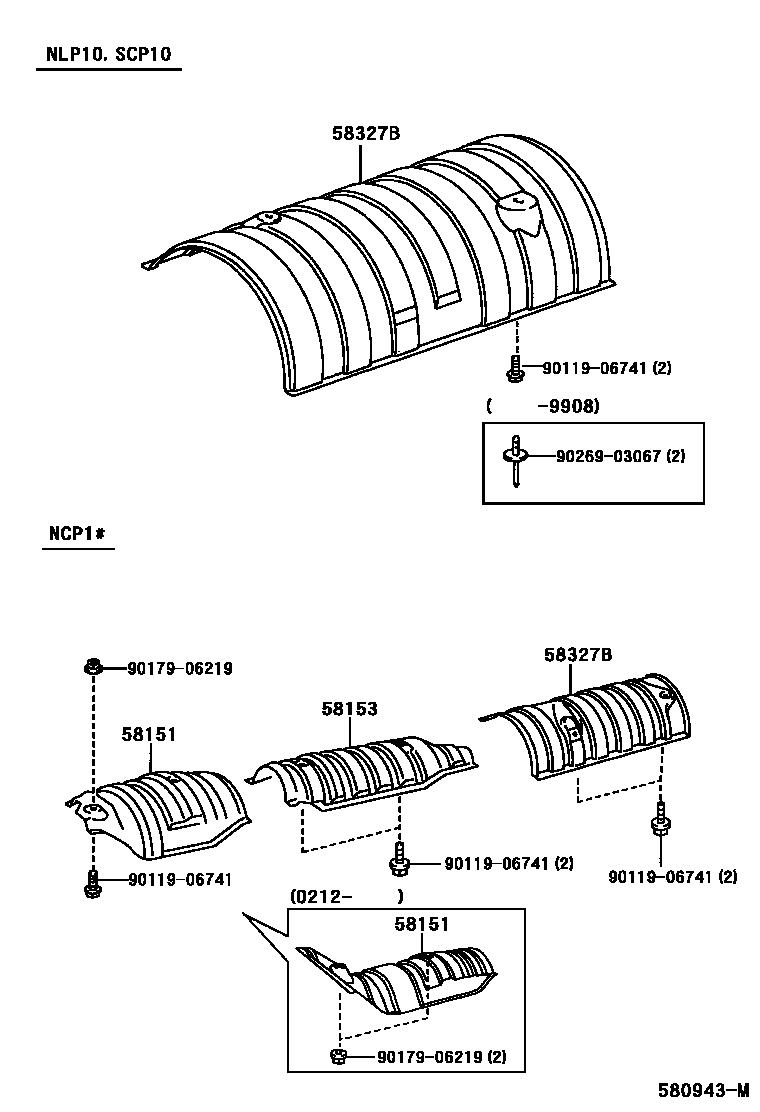

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52010iNCP1#..JPP199908-200212

main58151-52030iNCP13..JPP200212

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP1#..JPP199908-200212

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52010iSCP10..JPP199901-199906

sub58327-52011

main58327-52011iSCP10..JPP199906-199908

sub58327-52060

main58327-52050iNCP1#,NLP10,SCP10..JPP199908-200212

9011906741

main90119-06741

9017906219

main90179-06219

9026903067

main90269-03067

6 parts on this diagram · 1 diagram in section
