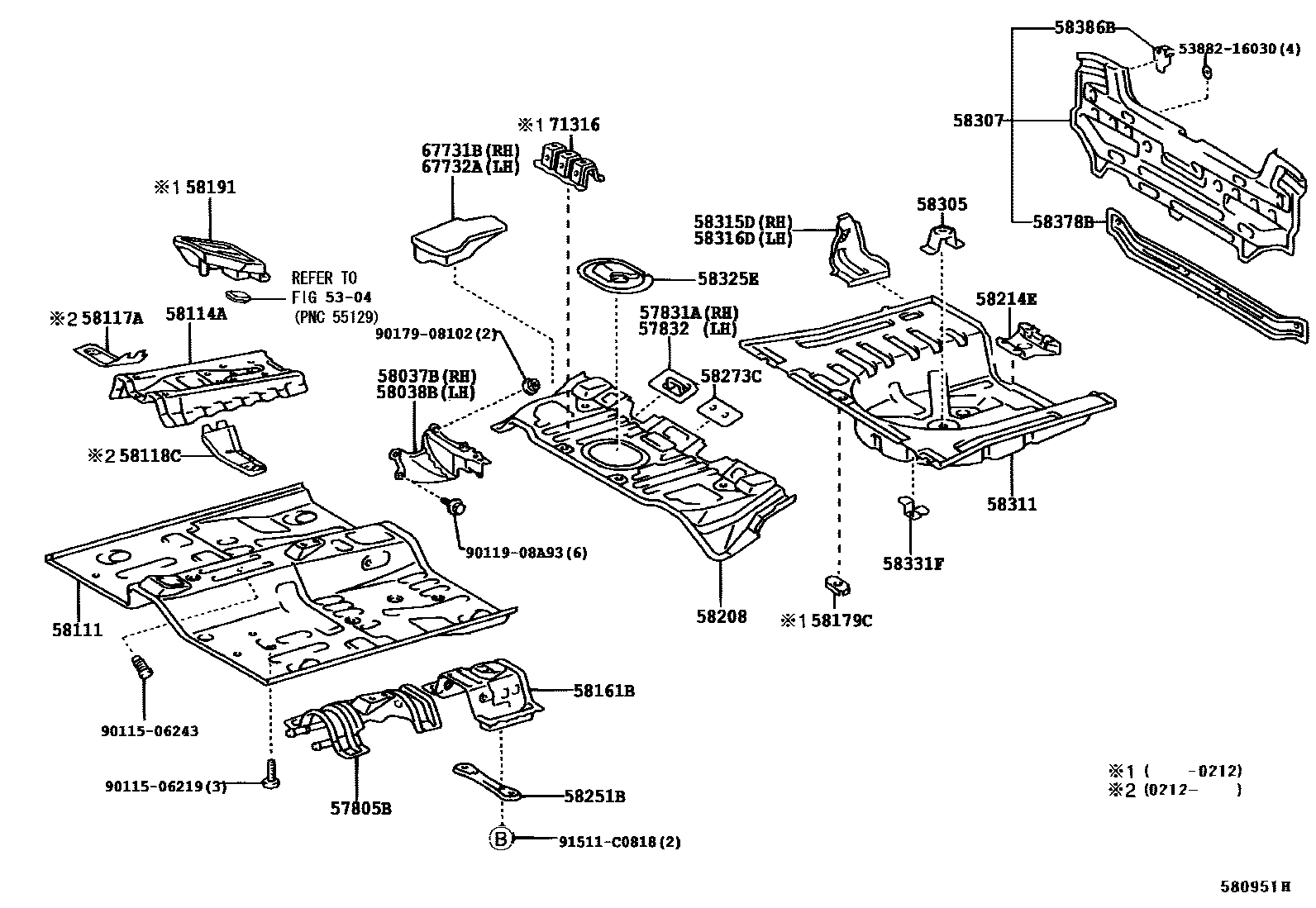

FLOOR PAN & LOWER BACK PANEL
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58214EBRACKET, JACK SUPPORT
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
67731BSPACER, SIDE TRIM, NO.1
67732ASPACER, SIDE TRIM, NO.2
71316BRACKET, REAR SEAT SUPPORT
5388216030PACKING, FRONT FENDER MAIN
main53882-16030
9011506219
main90115-06219
9011506243
main90115-06243
9011908A93
main90119-08A93
9017908102
main90179-08102
91511C0818
main91511-C0818
34 parts on this diagram · 3 diagrams in section
