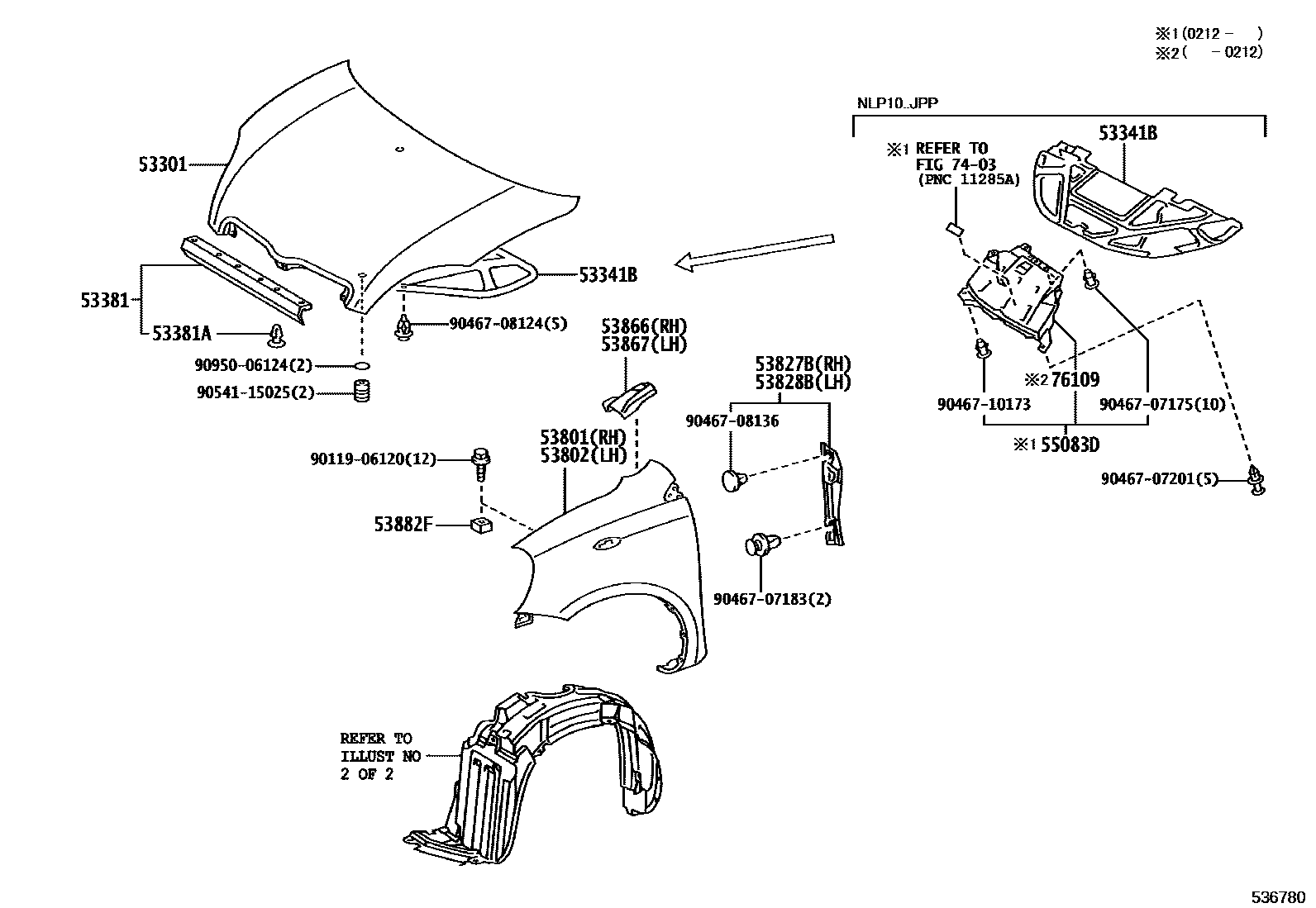

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52020iNCP13,NLP10..JPP¥32,500199901-200508

53341BINSULATOR, HOOD

main53341-52010iNCP10,SCP10..JPP¥7,400199908-200108

sub53341-52011¥7,400

main53341-52011iNCP13..JPP¥7,400200108-200212

main53341-52050iNLP10..JPP¥10,700200110-200212

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP1#,SCP10..JPP¥1,130199901-200212

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP1#,SCP10..JPP¥100199901-200212

53801FENDER SUB-ASSY, FRONT RH

main53811-52010iNCP1#,NLP10,SCP10..JPP¥25,300199901-200508

53802FENDER SUB-ASSY, FRONT LH

main53812-52010iNCP1#,NLP10,SCP10..JPP¥25,300199901-200508

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-52010iSCP10..JPP..LHD¥1,780199901-199904

sub53827-52040¥1,780

main53827-52040iNCP10,SCP10..JPP¥1,780199908-200105

sub53827-52041¥1,790

main53827-52041iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)¥1,790200105-200212

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52010iSCP10..JPP..LHD¥1,780199901-199904

sub53828-52040¥1,780

main53828-52040iNCP10,SCP10..JPP¥1,780199908-200105

sub53828-52041¥1,790

main53828-52041iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)¥1,790200105-200212

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52010iNCP1#,NLP10,SCP10..JPP¥300199901-200212

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52010iNCP1#,NLP10,SCP10..JPP¥300199901-200212

53882FSEAL, FRONT FENDER

main53882-16030iNCP10,SCP10..JPP¥60199901-200212

55083DDUCT SUB-ASSY, FRONT VENTILATOR

main55083-52011iNLP10..JPP200212-200308

sub55083-52012

main55083-52012iNLP10..JPP200308-200508

7403

76109GUIDE SUB-ASSY, HOOD AIR INTAKE

main55823-52010iNLP10..JPP¥18,500200110-200212

9011906120

main90119-06120¥70

9046707175

main90467-07175¥130

9046707183

main90467-07183¥120

9046707201

main90467-07201¥100

9046708124

main90467-08124¥260

9046708136

main90467-08136¥90

9046710173

main90467-10173¥220

9054115025

main90541-15025¥220

9095006124

main90950-06124¥90

23 parts on this diagram · 2 diagrams in section
