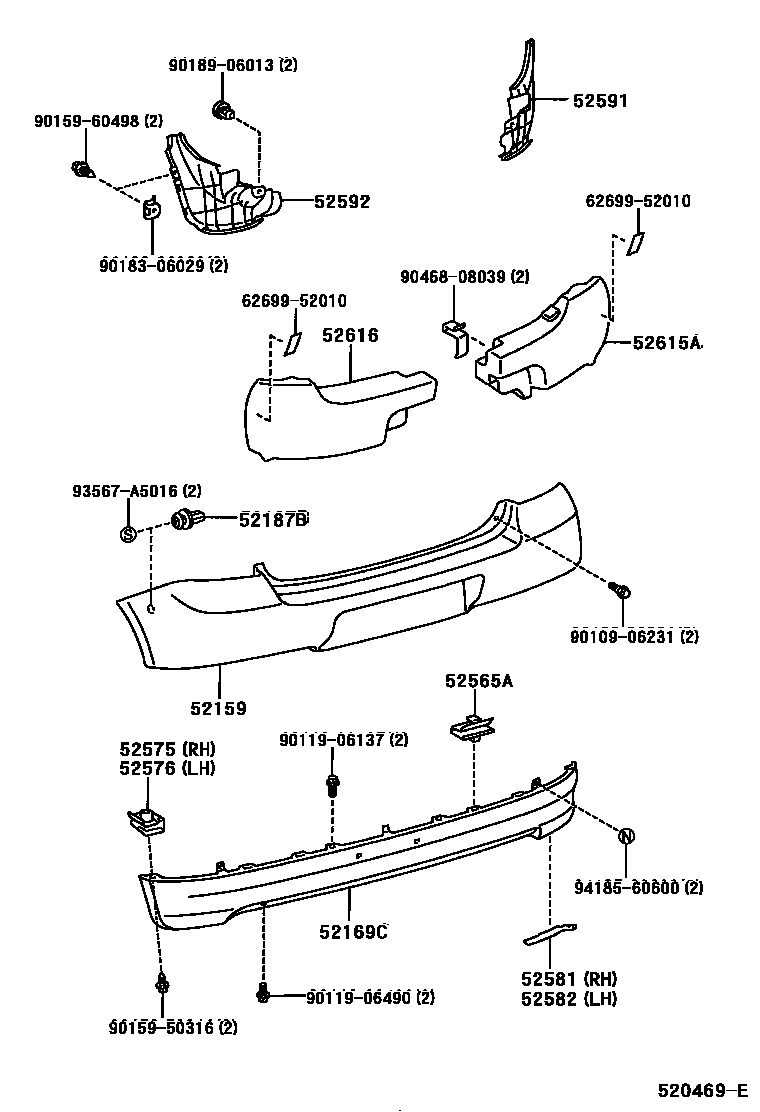

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52159COVER, REAR BUMPER

main52159-52030iSCP10..JPP199901-199908

main52159-52031iSCP10..JPP..SOL199901-200212

W(PAINTED BUMPER)

main52159-52031iNCP10,NLP10..JPP;SCP10..JPP..(LUNA,TRSTD,TSGS)199908-200212

main52159-52420iNLP10..JPP200212-200508

main52159-52904iNCP13..JPP200101-200212

main52159-52916iNCP13..JPP200212-200508

52169CCOVER, REAR BUMPER, LOWER

main58381-52020iNCP10,NLP10,SCP10..JPP199901-200212

main58381-52040iNLP10..JPP200212-200508

52187BGUIDE, REAR BUMPER LOCATION

main52187-52010iNCP1#,NLP10,SCP10..JPP199901-200508

52565ARETAINER, REAR BUMPER, LOWER

main52565-52010iNCP10,NLP10,SCP10..JPP199901-200508

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52010iNCP10,NLP10,SCP10..JPP199901-200508

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52010iNCP10,NLP10,SCP10..JPP199901-200508

52581PROTECTOR, REAR BUMPER, RH

main52581-52020iNCP10,NLP10,SCP10..JPP200010-200212

main52581-52050iNLP10..JPP200212

52582PROTECTOR, REAR BUMPER, LH

main52582-52010iNCP10,NLP10,SCP10..JPP200010-200212

main52582-52040iNLP10..JPP200212

52591SEAL, REAR BUMPER SIDE, RH

main52591-52010iNCP10,NLP10,SCP10..JPP199901-200212

main52591-52050iNCP13..JPP200101-200212

main52591-52070iNLP10..JPP200212-200508

main52591-52150iNCP13..JPP200212-200508

52592SEAL, REAR BUMPER SIDE, LH

main52592-52010iNCP10,NLP10,SCP10..JPP199901-200212

main52592-52050iNCP13..JPP200101-200212

main52592-52060iNLP10..JPP200212-200508

main52592-52140iNCP13..JPP200212-200508

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-52010iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200212

main52615-52030iNCP13..JPP200101-200212

main52615-52040iNCP13..JPP200212

main52615-52050iNLP10..JPP200212

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-52010iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200212

main52616-52020iNCP13..JPP200101-200212

main52616-52030iNCP13..JPP200212

main52616-52050iNLP10..JPP200212

6269952010ORNAMENT, QUARTER TRIM POCKET

main62699-52010

9010906231

main90109-06231

9011906137

main90119-06137

9011906490

main90119-06490

9015950316

main90159-50316

9015960498

main90159-60498

9018306029

main90183-06029

9018906013

main90189-06013

9046808039

main90468-08039

93567A5016

main93567-A5016

9418560600

main94185-60600

23 parts on this diagram · 4 diagrams in section
