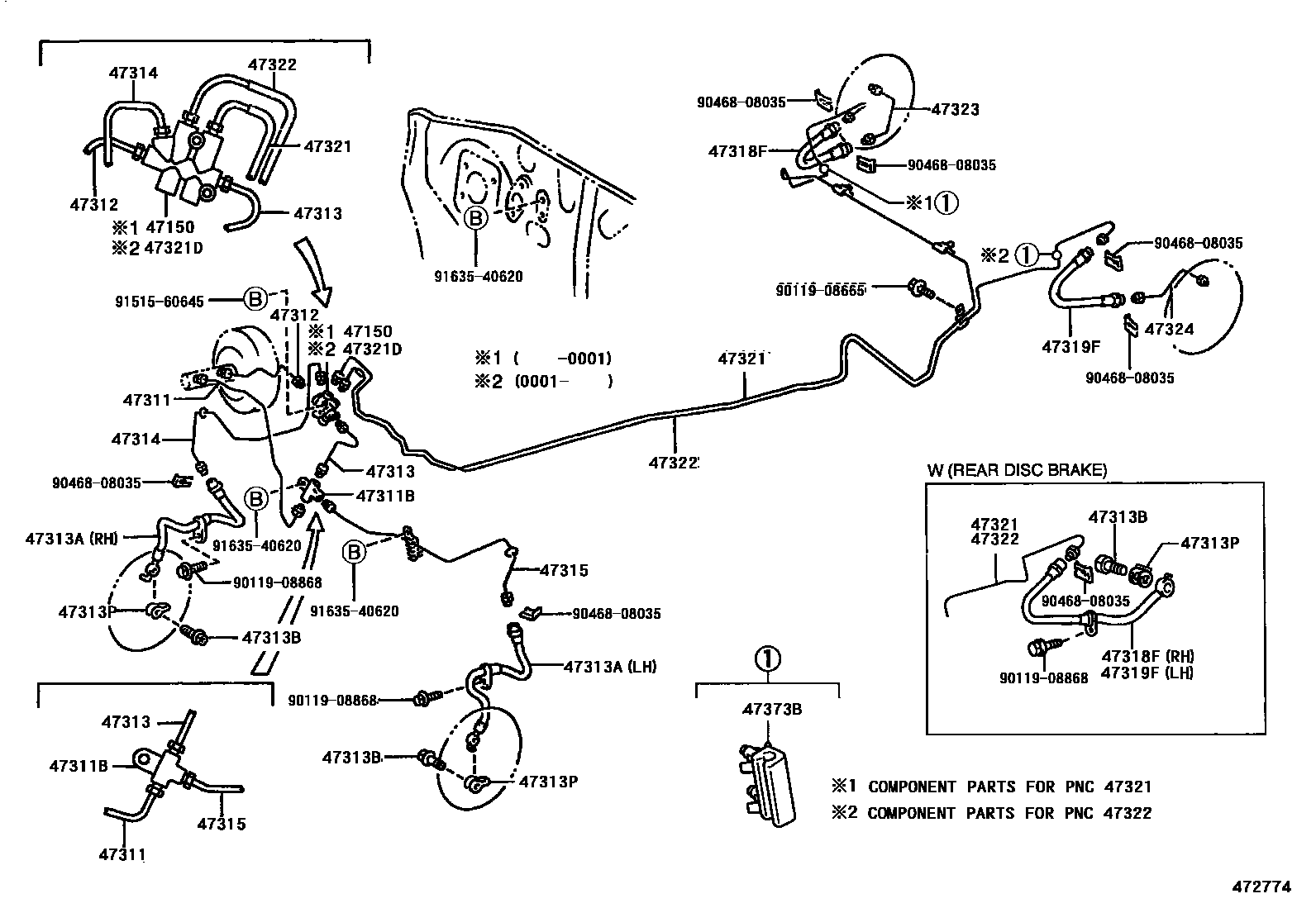

BRAKE TUBE & CLAMP

0001 1W/O(ABS) 0002 1W/O(ABS) 0003 1W(ABS) 0004 1W(ABS) 0005 1W(LSPV) 0006 1W(LSPV) 0007 1W/O(ABS) 0008 1W/O(ABS) 0009 1W(ABS) 0010 1W(ABS) 0011 1W(LSPV) 0012 1W(LSPV) 0013 1W(VSC) 0014 1W(VSC) 0015 1W(ABS) 0016 1W(VSC) 0017 1

47150VALVE ASSY, PROPORTIONING

main47150-52030iSCP10..JPP¥13,500199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

sub47150-52060¥13,500

main47150-52040iNCP10,SCP10..JPP¥13,500199908-200001

sub47150-52070¥13,400

47311TUBE, FRONT BRAKE, NO.1

main47311-52010iSCP10..JPP..RHD¥1,090199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47311-52011iNCP13..JPP..RHD¥1,090200212

main47311-52011iNCP10,SCP10..JPP..RHD¥1,090199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47311-52011iNCP10,NLP10,SCP10..JPP..RHD¥1,090200110-200212

W(ABS)

main47311-52012iNCP10,SCP10..JPP..RHD¥1,090200108-200110

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

sub47311-52011¥1,090

main47311-52020iSCP10..JPP..LHD¥750199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47311-52021iNCP10,SCP10..JPP..LHD¥750199908-200109

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

sub47311-52022¥750

main47311-52021iNCP13..JPP..LHD¥750200101-200109

sub47311-52022¥750

main47311-52022iNCP1#,NLP10,SCP10..JPP..LHD¥750200109-200212

W(ABS)

main47311-52030iSCP10..JPP..LHD¥1,090199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47311-52031iNCP10,SCP10..JPP..LHD¥1,090199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47311-52040iSCP10..JPP..RHD¥550199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47311-52041iNCP10,SCP10..JPP..RHD¥550199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

sub47311-52042¥550

main47311-52042iNCP10,NLP10,SCP10..JPP..RHD¥550200108-200111

W/O(ABS)

main47311-52061iNCP13..JPP..RHD¥1,090200101-200212

main47311-52110iNLP10..JPP..RHD¥1,090200111-200112

W(ABS)

sub47311-52111¥1,090

main47311-52111iNLP10..JPP..RHD¥1,090200112-200212

W(ABS)

main47311-52120iNCP10,NLP10,SCP10..JPP..RHD¥750200111-200212

W/O(ABS)

main47311-52130iNLP10..JPP..LHD¥1,090200110-200212

W/O(ABS)

main47311-52140iNCP13..JPP..RHD¥1,090200212

W(VSC)

main47311-52150iNCP13..JPP..LHD¥940200212

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10228iSCP10..JPP..RHD¥1,300199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main90412-10235iNCP13..JPP..RHD¥980200101-200212

main90412-10235iNLP10..JPP..RHD¥980199908-200212

W(ABS)

main90412-10235iNCP10,NLP10..JPP..RHD¥980199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main90413-10286iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥780199908-200212

W/O(ABS)

main90413-10286iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥780199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main90413-10786iSCP10..JPP..RHD¥490199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47312-52010iSCP10..JPP..RHD¥1,090199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47312-52011iSCP10..JPP..RHD..(SOL,TRSTD)¥1,090199908-200212

W(ABS)

main47312-52011iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥1,090199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47312-52020iSCP10..JPP..LHD¥750199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47312-52021iNCP10,NLP10..JPP..LHD;SCP10..JPP..LHD..(LUNA,TSGS)¥750199908-200212

W(ABS)

main47312-52021iNCP10,NLP10..JPP..LHD;SCP10..JPP..LHD..(LUNA,TSGS)¥750199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47312-52021iNCP13..JPP..LHD¥750200101-200212

main47312-52030iSCP10..JPP..LHD¥940199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47312-52031iNCP10..JPP..LHD;SCP10..JPP..LHD..(LUNA,TSGS)¥940199908-200212

W/O(ABS)

main47312-52031iSCP10..JPP..LHD..(SOL,TRSTD)¥940199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47312-52040iSCP10..JPP..RHD¥550199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47312-52041iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥550199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47312-52041iSCP10..JPP..RHD..(SOL,TRSTD)¥550199908-200212

W/O(ABS)

main47312-52061iNCP13..JPP..RHD¥1,090200101-200212

main47312-52120iNCP13..JPP..RHD¥1,090200212

W(VSC)

main47312-52130iNLP10..JPP..LHD¥1,090200110-200212

W/O(ABS)

main47312-52140iNCP13..JPP..LHD¥750200212

W(VSC)

47313TUBE, FRONT BRAKE, NO.3

main47313-52010iSCP10..JPP..RHD¥1,320199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47313-52011iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥1,320199908-200212

W(ABS)

main47313-52011iSCP10..JPP..RHD..(SOL,TRSTD)¥1,320199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47313-52011iNCP13..JPP..RHD¥1,320200101-200212

main47313-52020iSCP10..JPP..RHD¥390199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47313-52021iSCP10..JPP..RHD..(SOL,TRSTD)¥380199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47313-52021iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥380199908-200212

W/O(ABS)

main47313-52060iNLP10..JPP..RHD¥1,320200112-200212

W(ABS)

main47313-52070iNCP13..JPP..RHD¥1,090200212

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A45iSCP10..JPP¥2,150199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH

main90947-02A46iSCP10..JPP¥2,150199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH

main90947-02C31iNCP13,NLP10..JPP¥2,450199908-200308

RH

sub90947-02D76¥1,980

main90947-02C31iNCP1#,NLP10..JPP;SCP10..JPP..(LUNA,TSGS)¥2,450199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH

sub90947-02D76¥1,980

main90947-02C32iSCP10..JPP..(SOL,TRSTD)¥2,450199908-200308

LH

sub90947-02D77¥1,980

main90947-02C32iNCP1#,NLP10..JPP;SCP10..JPP..(LUNA,TSGS)¥2,450199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH

sub90947-02D77¥1,980

main90947-02D76iNCP13,NLP10..JPP¥1,980200308

RH

main90947-02D77iNCP13,NLP10..JPP¥1,980200308

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNCP1#,NLP10,SCP10..JPP¥220199901-200212

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iNCP13,NLP10..JPP¥280199901-200212

47314TUBE, FRONT BRAKE, NO.4

main47314-52010iSCP10..JPP..RHD¥750199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47314-52011iNLP10..JPP..RHD¥750199908-200212

W(ABS)

main47314-52011iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥750199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47314-52011iNCP13..JPP..RHD¥750200101-200212

main47314-52020iSCP10..JPP..RHD¥1,090199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47314-52021iNCP10..JPP..RHD;SCP10..JPP..RHD..LUNA¥1,090199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

sub47314-52022¥1,090

main47314-52021iSCP10..JPP..RHD..(SOL,TRSTD)¥1,090199908-200108

W/O(ABS)

sub47314-52022¥1,090

main47314-52022iNCP10,NLP10,SCP10..JPP..RHD¥1,090200108-200111

W/O(ABS)

main47314-52030iSCP10..JPP..LHD¥940199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47314-52031iNCP10,NLP10..JPP..LHD;SCP10..JPP..LHD..LUNA¥940199908-200212

W/O(ABS)

main47314-52031iSCP10..JPP..LHD..(SOL,TRSTD)¥940199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47314-52040iSCP10..JPP..LHD¥1,470199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47314-52041iNCP10..JPP..LHD;SCP10..JPP..LHD..(LUNA,TSGS)¥1,470199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

sub47314-52042¥1,470

main47314-52041iNCP10..JPP..LHD;SCP10..JPP..LHD..(LUNA,TSGS)¥1,470199908-200108

W(ABS)

sub47314-52042¥1,470

main47314-52041iNCP13..JPP..LHD¥1,470200101-200108

sub47314-52042¥1,470

main47314-52042iNCP13,NLP10..JPP..LHD¥1,470200108-200212

W(ABS)

main47314-52070iNCP10,NLP10,SCP10..JPP..RHD¥1,090200111-200212

W/O(ABS)

main47314-52080iNCP13..JPP..LHD¥1,470200212-200303

W(VSC)

sub47314-52081¥1,470

main47314-52081iNCP13..JPP..LHD¥1,470200303

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-52010iSCP10..JPP..RHD¥750199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47315-52011iNLP10..JPP..RHD¥750199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47315-52011iNCP13..JPP..RHD¥750200101-200212

main47315-52020iSCP10..JPP..LHD¥750199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47315-52021iNCP10,SCP10..JPP..LHD¥750199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47315-52030iSCP10..JPP..RHD¥1,090199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47315-52031iNCP10,NLP10,SCP10..JPP..RHD¥1,090199908-200112

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47315-52032iNCP10,SCP10..JPP..RHD¥1,090200108-200110

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

sub47315-52031¥1,090

main47315-52040iSCP10..JPP..LHD¥940199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47315-52041iNLP10..JPP..LHD¥940199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47315-52041iNCP13..JPP..LHD¥940200101-200212

main47315-52060iNLP10..JPP..RHD¥1,320200111-200112

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

sub47315-52061¥1,320

main47315-52061iNCP10,NLP10,SCP10..JPP..RHD¥1,320200112-200212

W/O(ABS)

main47315-52070iNCP13..JPP..RHD¥930200212-200405

W(VSC)

main47315-52071iNCP13..JPP..RHD¥940200405

W(VSC)

main47315-52080iNCP13..JPP..LHD¥940200212-200303

W(VSC)

sub47315-52081¥940

main47315-52081iNCP13..JPP..LHD¥940200303

W(VSC)

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A47iSCP10..JPP¥1,100199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iSCP10..JPP..(SOL,TRSTD)¥1,390199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iNLP10..JPP¥1,390200212

main90947-02C35iNCP10..JPP;SCP10..JPP..LUNA¥2,120199908-200004

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE)

sub90947-02K02¥2,450

main90947-02C35iSCP10..JPP..(SOL,TRSTD)¥2,120199908-200004

W(REAR DISC BRAKE)

sub90947-02K02¥2,450

main90947-02C75iNCP13..JPP¥3,280200101-200212

main90947-02C75iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)¥3,280200010-200212

W(REAR DISC BRAKE)

main90947-02K02iNCP10..JPP;SCP10..JPP..LUNA¥2,450200004-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE)

main90947-02K02iNCP10..JPP;SCP10..JPP..LUNA¥2,450200004-200010

W(REAR DISC BRAKE)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A47iSCP10..JPP¥1,100199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iNCP10,NLP10..JPP;SCP10..JPP..(LUNA,TSGS)¥1,390199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iNLP10..JPP¥1,390200212

main90947-02C36iNCP10..JPP;SCP10..JPP..LUNA¥2,120199908-200004

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE)

sub90947-02J38¥2,450

main90947-02C36iSCP10..JPP..(SOL,TRSTD)¥2,120199908-200004

W(REAR DISC BRAKE)

sub90947-02J38¥2,450

main90947-02C76iNLP10..JPP¥3,280200010-200212

W(REAR DISC BRAKE)

main90947-02C76iNCP13..JPP¥3,280200101-200212

main90947-02J38iSCP10..JPP..(SOL,TRSTD)¥2,450200004-200010

W(REAR DISC BRAKE)

main90947-02J38iNCP10..JPP;SCP10..JPP..LUNA¥2,450200004-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE)

47321TUBE, REAR BRAKE, NO.1

main47321-52010iSCP10..JPP¥5,100199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-52011iNCP10..JPP;SCP10..JPP..(LUNA,TSGS)¥5,100199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-52012iNCP13..JPP¥4,920200010-200508

main47321-52070iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)¥3,440200001-200212

W(LSPV)

main47321-52091iNLP10..JPP¥3,240200110-200212

W(LSPV)

main47321-52101iNLP10..JPP¥4,760200110-200508

main47321-52200iNCP13..JPP..RHD¥4,920200212-200508

W(VSC)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)¥2,300199908-200001

AISIN SEIKI

main90412-10140iSCP10..JPP..TSGS¥2,300199911-200001

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90412-10640iSCP10..JPP¥2,300199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90413-10293iNCP10,SCP10..JPP¥1,350200001-200212

W/O(ABS)

main90904-12088iNLP10..JPP¥2,690200001-200212

W(ABS)

main90904-12088iNCP10,SCP10..JPP¥2,690199908-200001

NISSIN KOGYO

main90904-12088iNLP10..JPP¥2,690200110-200212

47322TUBE, REAR BRAKE, NO.2

main47322-52010iSCP10..JPP¥4,270199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-52011iNCP10..JPP;SCP10..JPP..(LUNA,TSGS)¥4,270199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-52012iNCP1#,SCP10..JPP¥4,110200010-200508

main47322-52070iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)¥3,440200001-200212

W(LSPV)

main47322-52091iNLP10..JPP¥3,240200110-200212

W(LSPV)

main47322-52101iNLP10..JPP¥3,950200110-200508

main47322-52120iNCP13..JPP..RHD¥4,110200212-200508

W(VSC)

47323TUBE, REAR BRAKE, NO.3

main47323-52020iSCP10..JPP¥390199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-52021iNCP10..JPP;SCP10..JPP..(LUNA,TSGS)¥390199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-52022iNCP10,NLP10,SCP10..JPP¥550200010-200202

sub47323-52090¥750

main47323-52090iNCP10,NLP10,SCP10..JPP¥750200202-200212

47324TUBE, REAR BRAKE, NO.4

main47324-52020iSCP10..JPP¥390199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-52021iNCP10..JPP;SCP10..JPP..(LUNA,TSGS)¥390199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-52022iNCP10,NLP10,SCP10..JPP¥550200010-200202

sub47324-52080¥750

main47324-52080iNCP10,NLP10,SCP10..JPP¥750200202-200212

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52030iNCP10,SCP10..JPP¥230199901-200010

9011908665

main90119-08665¥90

9011908868

main90119-08868¥70

9046808035

main90468-08035¥110

9151560645

main91515-60645¥110

9163540620

main91635-40620¥60

23 parts on this diagram · 17 diagrams in section
