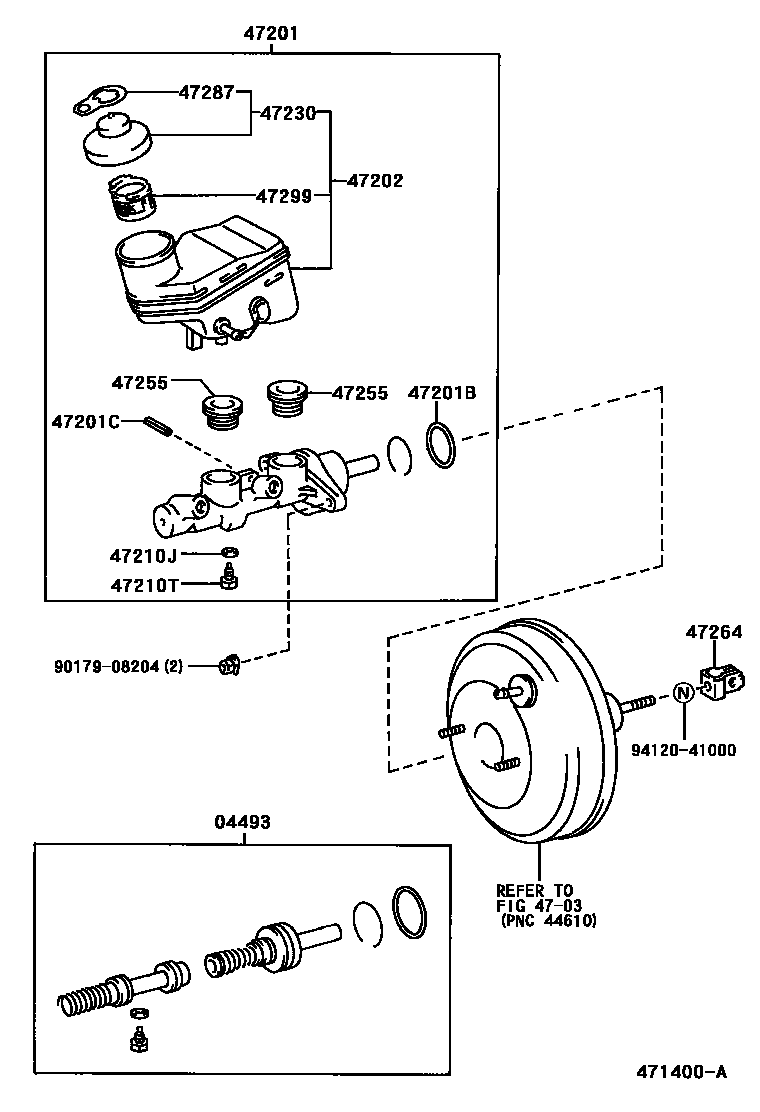

BRAKE MASTER CYLINDER

0001 1AISIN,W/O(ABS) 0002 1AISIN,W(ABS) 0003 1 0004 1W(VSC) 0005 1JKC 0006 1W(VSC) 0007 1 0008 1

04493CYLINDER KIT, BRAKE MASTER

main04493-52020iSCP10..JPP..RHD..(SOL,TRSTD)199901-200212

W(FREE TRONIC)

main04493-52020iNCP10,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA199908-200212

W(ABS)

main04493-52030iNCP10,NLP10,SCP10..JPP..RHD199901-200212

W/O(ABS)

main04493-52050iNCP13..JPP..RHD200212

W(VSC)

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52030iSCP10..JPP..RHD199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(ABS)

main47201-52031iNLP10..JPP..RHD199908-200410

D-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(ABS)

sub47201-52032

main47201-52040iSCP10..JPP..RHD199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(FREE TRONIC & ABS)

main47201-52041iSCP10..JPP..RHD199908-200212

W(ABS)

sub47201-52042

main47201-52041iSCP10..JPP..RHD199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(FREE TRONIC & ABS)

sub47201-52042

main47201-52050iSCP10..JPP..RHD199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W/O(ABS)

main47201-52051iNCP10,NLP10,SCP10..JPP..RHD..5F199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W/O(ABS)

main47201-52060iSCP10..JPP..RHD199901-199908

S-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(FREE TRONIC) & W/O(ABS)

main47201-52061iNCP10..JPP..RHD..4FC199908-200212

W/O(ABS)

main47201-52061iSCP10..JPP..RHD199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 2 OF 2, W(FREE TRONIC) & W/O(ABS)

main47201-52230iNCP13..JPP..RHD200212-200410

W(VSC)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iNCP13,NLP10..JPP..LHD200309

main90029-20059iNCP10,NLP10,SCP10..JPP..RHD199901-200212

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP13,NLP10..JPP..RHD199901-200212

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52030iNCP13,NLP10..JPP..LHD199901-200212

main47220-52040iNCP10..JPP..LHD..4FC199908-200212

main47220-52040iSCP10..JPP..LHD..(LUNA,SOL,TRSTD)199901-200212

W(FREE TRONIC)

main47220-52050iNCP10,NLP10,SCP10..JPP..RHD..5F199901-200212

main47220-52060iSCP10..JPP..RHD199901-200212

W(FREE TRONIC)

main47220-52060iNCP10..JPP..RHD..4FC199908-200212

main47220-52070iNCP13..JPP..RHD200101-200212

main47220-52100iNCP13..JPP..LHD200212

W(VSC)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iNCP10,NLP10,SCP10..JPP..RHD199901-200212

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iNCP10,NLP10,SCP10..JPP..RHD199901-200212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP10,NLP10,SCP10..JPP..RHD199901-200212

main47230-52030iNCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD199901-200212

sub47230-33071

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP10,NLP10,SCP10..JPP..RHD199901-200212

main47255-52010iNCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD199901-200212

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP13,NLP10..JPP..RHD199901-200410

main47264-52020iNCP13,NLP10..JPP..LHD199901-200212

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP13,NLP10..JPP..RHD199901-200212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP10,NLP10,SCP10..JPP..RHD199901-200212

main47299-52010iNCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD199901-200212

9017908204

main90179-08204

9412041000

main94120-41000

15 parts on this diagram · 8 diagrams in section
