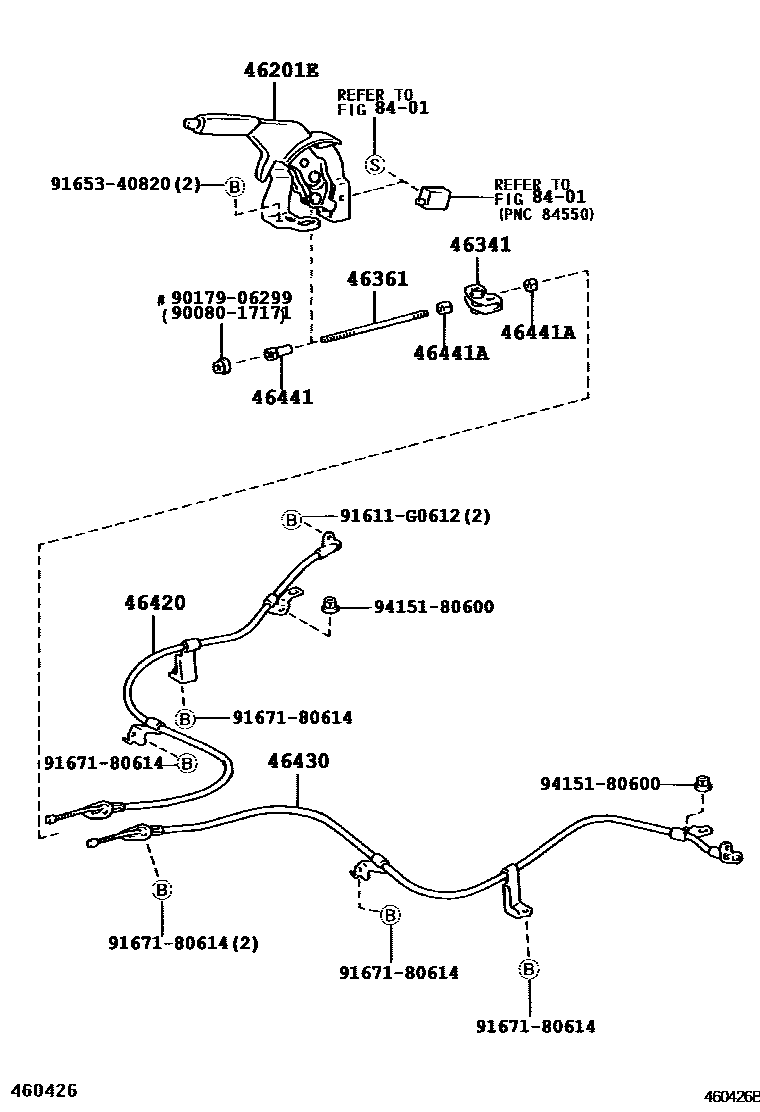

PARKING BRAKE & CABLE

0001 1 0002 1W(REAR DISC BRAKE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B0iNCP10,NLP10,SCP10..JPP199901-200212

MD.GRAY,TRIM1#

sub46201-52010

main46201-52010-B2iNCP13..JPP200101-200212

SHADOW GRAY,TRIM9#

sub46201-52010

main46201-52010-B3iNLP10..JPP..TRSTD200212-200508

DK.GRAY,TRIM97,98,99

sub46201-52010

main46201-52010-G0iNCP10,NLP10,SCP10..JPP199901-200212

MIST GREEN,TRIM7#

sub46201-52010

main46201-52050-B1iNLP10..JPP..SOL200212-200508

DK.GRAY,TRIM9#

sub46201-52050

main46201-52050-B1iNLP10..JPP..SOL200212-200508

DK.GRAY,TRIM97,98

sub46201-52050

main46201-52050-B1iNLP10..JPP..SOL200212-200508

CHROME PLATED KNOB,DK.GRAY,TRIM97,98,99

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP13,NLP10..JPP199901-200212

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP1#,NLP10,SCP10..JPP199901-200212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52010iNLP10..JPP199901-200508

main46420-52080iNCP13..JPP200101-200212

main46420-52080iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200508

W(REAR DISC BRAKE)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52010iNCP10,NLP10,SCP10..JPP199901-200508

main46430-52080iNCP13..JPP199908-200508

W(REAR DISC BRAKE)

main46430-52080iNCP13..JPP200101-200212

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP1#,NLP10,SCP10..JPP199901-200212

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP1#,NLP10,SCP10..JPP199901-200212

8401

9008017171

main90080-17171

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
