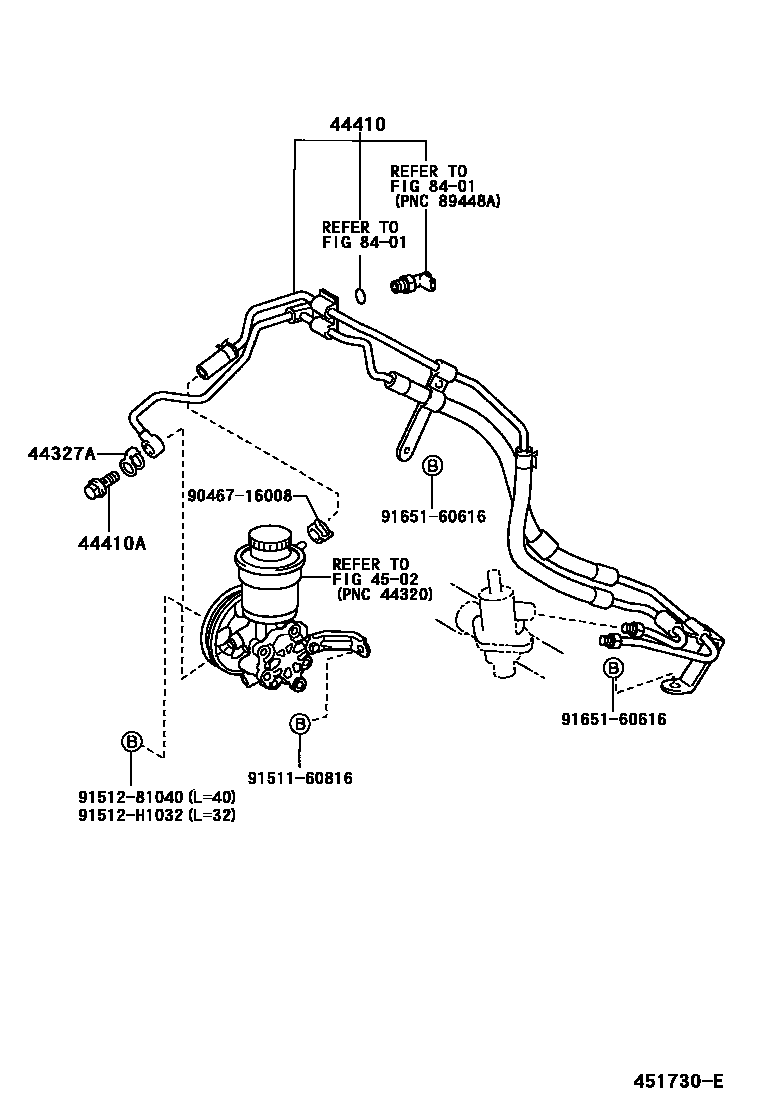

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSCP10..JPP..(LUNA,SOL,TRSTD)¥260199901-200212

44410TUBE ASSY, PRESSURE FEED

main44410-52020iSCP10..JPP..LHD..(LUNA,SOL,TRSTD)¥40,900199901-200212

main44410-52040iNCP1#..JPP..LHD¥24,100199908-200109

sub44410-52041¥24,200

main44410-52041iNCP13,NLP10..JPP..LHD¥24,200200109-200212

main44410-52060iSCP10..JPP..RHD¥35,100199901-200107

sub44410-52061¥35,200

main44410-52061iSCP10..JPP..RHD¥35,200200107-200212

main44410-52070iNCP1#,NLP10..JPP..RHD¥18,700199908-200212

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iSCP10..JPP..(LUNA,SOL,TRSTD)¥310199901-200212

4502

8401

9046716008

main90467-16008¥240

9151160816

main91511-60816¥90

9151281040

main91512-81040¥140

91512H1032

main91512-H1032¥170

9165160616

main91651-60616¥100

10 parts on this diagram · 4 diagrams in section
