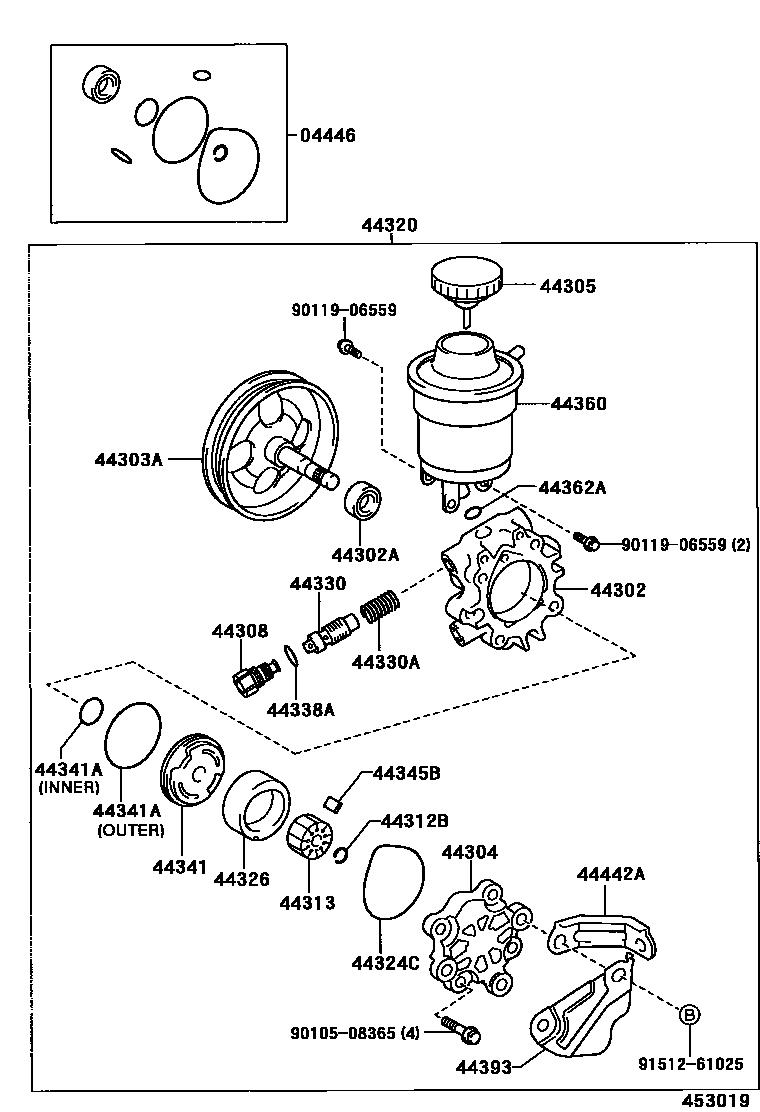

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iNCP13,NLP10..JPP199901-200212

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-50030iNLP10..JPP200110-200212

main44302-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

main44302-52020iNCP1#..JPP199908-200212

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90311-15012iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

main44303-52020iNCP13..JPP199908-200212

main44303-52030iNLP10..JPP200110-200212

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-52010iSCP10..JPP199901-199908

sub44304-52020

main44304-52020iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200001

sub44304-52021

main44304-52021iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)200001-200212

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

sub44305-22060

main44305-50010iNCP1#,NLP10..JPP199908-200212

sub44305-50020

44308UNION SUB-ASSY, PRESSURE PORT

main44308-52010iSCP10..JPP199901-199908

main44308-52020iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

44313ROTOR, VANE PUMP

main44313-32060iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

NO MARK

main44313-32070iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK 1

main44313-32080iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK 2

main44313-32090iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK 3

main44313-32100iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK 4

44320PUMP ASSY, VANE

main44310-52010iSCP10..JPP199901-199908

sub44310-52011

main44310-52011iSCP10..JPP..(LUNA,SOL,TRSTD)199908-200110

sub44310-52012

main44310-52012iSCP10..JPP..(LUNA,SOL,TRSTD)200110-200212

main44310-52020iNCP1#..JPP199908-200212

main44310-52160iNLP10..JPP200110-200212

44324CRING, O(FOR PUMP HOUSING REAR)

main90903-01007iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

44326RING, CAM(FOR VANE PUMP)

main44325-32340iSCP10..JPP199901-199908

NO MARK

main44325-32350iSCP10..JPP199901-199908

MARK 1

main44325-32360iSCP10..JPP199901-199908

MARK 2

main44325-32370iSCP10..JPP199901-199908

MARK 3

main44325-32380iSCP10..JPP199901-199908

MARK 4

main44325-52010iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

NO MARK

main44325-52020iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

MARK 1

main44325-52030iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

MARK 2

main44325-52040iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

MARK 3

main44325-52050iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199908-200212

MARK 4

44330VALVE ASSY, FLOW CONTROL

main44330-52010iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK A

main44330-52020iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK B

main44330-52030iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK C

main44330-52040iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK D

main44330-52050iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK E

main44330-52060iNCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

MARK F

main44330-52070iNLP10..JPP200110-200212

MARK A

main44330-52080iNLP10..JPP200110-200212

MARK B

main44330-52090iNLP10..JPP200110-200212

MARK C

main44330-52100iNLP10..JPP200110-200212

MARK D

main44330-52110iNLP10..JPP200110-200212

MARK E

main44330-52120iNLP10..JPP200110-200212

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

OD=22,ID=18.6

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32030iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-200001

sub44341-32031

main44341-32031iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)200001-200212

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-16012iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

INNER

main90301-45003iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

OUTER

44345BPLATE, VANE PUMP

main44345-32100iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

ROTOR NO MARK

main44345-32110iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

ROTOR MARK 1

main44345-32120iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

ROTOR MARK 2

main44345-32130iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

ROTOR MARK 3

main44345-32140iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

ROTOR MARK 4

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

main44306-52020iNCP1#,NLP10..JPP199908-200212

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11020iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)199901-200212

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-52010iNCP1#,NLP10..JPP199908-200212

main44393-52030iSCP10..JPP..(LUNA,SOL,TRSTD)200110-200212

44442ABRACKET, VANE PUMP, REAR

main44442-52010iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200110

sub44442-52011

main44442-52011iSCP10..JPP..(LUNA,SOL,TRSTD)200110-200212

main44442-52020iNCP1#,NLP10..JPP199908-200212

9010508365

main90105-08365

9011906559

main90119-06559

9151261025

main91512-61025
