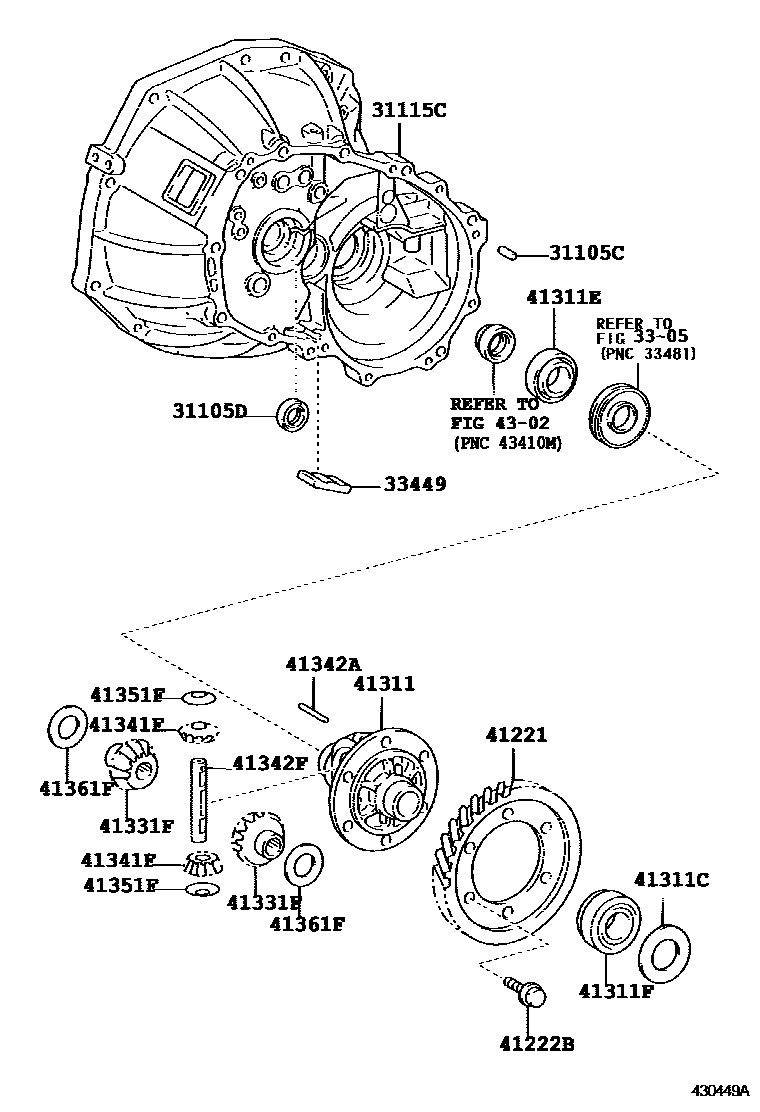

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
3305
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.20,MARK A
T=1.25,MARK B
T=1.30,MARK C
T=1.35,MARK D
T=1.40,MARK E
T=1.45,MARK F
T=1.50,MARK G
T=1.55,MARK H
T=1.60,MARK J
T=1.65,MARK K
T=1.70,MARK L
T=1.75,MARK M
T=1.80,MARK N
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
T=18.5
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
4302
18 parts on this diagram · 3 diagrams in section
