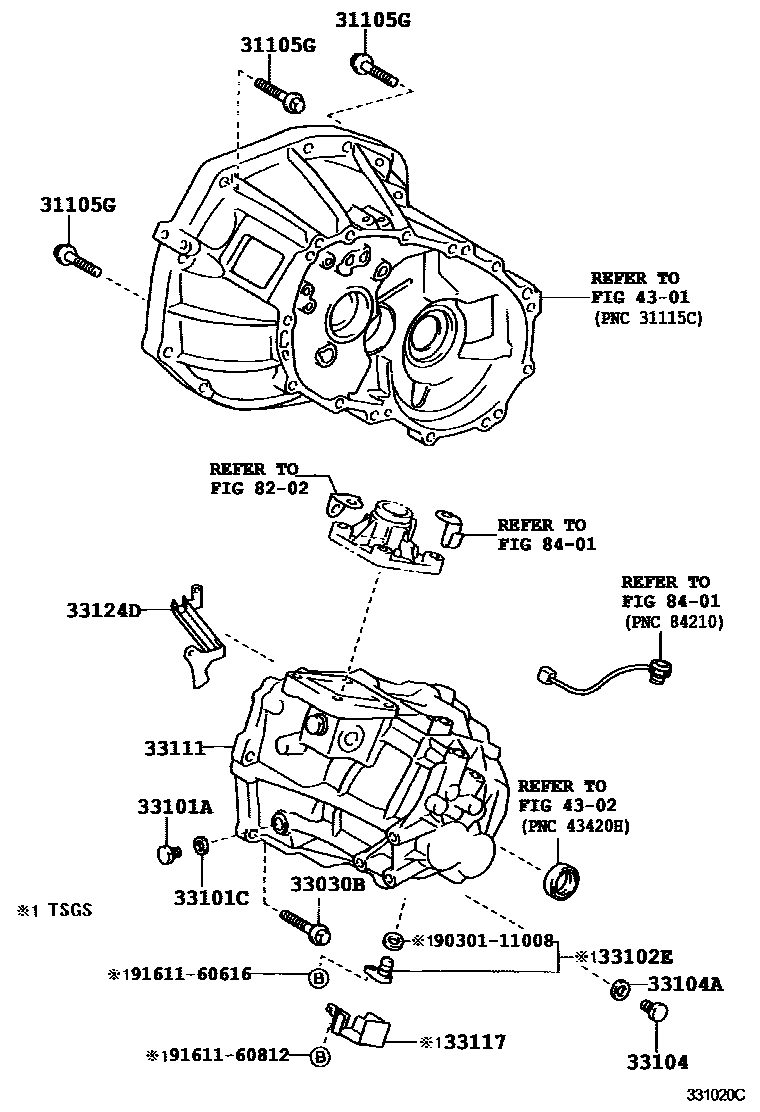

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C551 0002 1C551K,W(FREE TRONIC) 0003 1C50F,C56

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08139iSCP10..JPP¥200199901-200212

*8-1.25PX35-30

sub91511-C0835¥140

main91612-61050iNCP1#,NLP10..JPP..5F¥120199908-200212

*10-1.25PX50-30

main91619-61245iSCP10..JPP¥120199901-200212

*12-1.25PX45-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iNCP13..JPP¥190200101-200212

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iNCP10,NLP10..JPP..5F¥110199908-200501

*8-1.25PX45-27.5

main90105-08139iSCP10..JPP¥200199901-200212

*8-1.25PX35-30

sub91511-C0835¥140

main90105-08353iNCP13..JPP¥100200212

*8-1.25PX50-30

main90105-08430iNCP13..JPP¥100200408

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP13,NLP10..JPP¥180199901-200506

main90341-18033iNCP13,NLP10..JPP¥190200506

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP13,NLP10..JPP¥110199901-200212

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNLP10..JPP¥3,540199908-200212

main33102-12021iNCP13..JPP¥9,800200101-200212

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-52010iSCP10..JPP..TSGS¥670199911-200212

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP1#,NLP10,SCP10..JPP..5F¥180199901-200506

main90341-18033iNCP13,NLP10..JPP¥190200506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP1#,NLP10,SCP10..JPP..5F¥110199901-200212

33111CASE, MANUAL TRANSMISSION

main33111-16053iNLP10..JPP¥35,200199908-200212

main33111-17100iNCP13..JPP¥38,100200101-200212

sub33111-17101¥38,200

sub90389-15009¥270

main33111-17101iNCP13..JPP¥38,200200212-200501

sub33111-17102¥35,200

sub90101-08166¥110

sub90201-08049¥90

sub90389-15009¥270

main33111-17102iNCP13..JPP¥35,200200501

sub33111-12280¥35,200

main33111-52010iSCP10..JPP..(LUNA,SOL,TRSTD)¥35,200199901-200212

main33111-52020iSCP10..JPP..(LUNA,SOL,TRSTD)¥35,200199901-200212

W(FREE TRONIC)

main33111-52020iSCP10..JPP..TSGS¥35,200199911-200212

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-52020iSCP10..JPP..TSGS¥480199911-200212

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNCP10,NLP10..JPP..5F¥1,260199908-200212

main33124-12021iNCP13..JPP¥720200101-200212

main33124-52010iSCP10..JPP¥770199901-200212

4301

4302

8202

8401

9030111008

main90301-11008¥160

9161160616

main91611-60616¥110

9161160812

main91611-60812¥140

18 parts on this diagram · 3 diagrams in section
