HEATING & AIR CONDITIONING - WATER PIPING

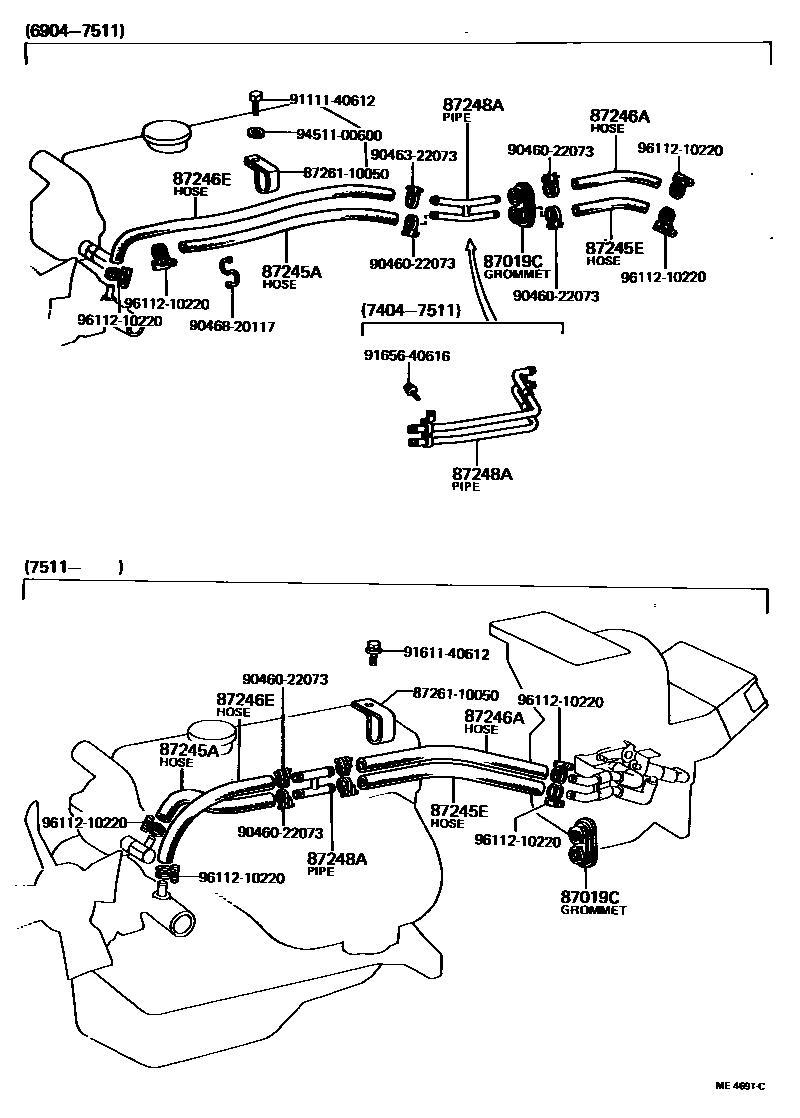

Parts diagram
87019CGROMMET, HEATER HOSE
main90480-01011i197506-198808
main90480-01195i196904-197506
main90480-01412i197404-197506
87245AHOSE, HEATER WATER, INLET A
main87245-10051i196904-197005
L=450,L=450
main90445-21283i197005-197102
L=450,L=450
sub99551-20450
main99551-20450i197103-197303
L=450,L=450
sub99552-20450
main99552-20165i197506-197912
*H,L=165,L=165
sub99552-20200
main99552-20200i197912-198808
L=200,*H,L=165
sub99556-20200
main99552-20450i197303-197506
L=450,L=450
sub99552-20500
main99552-20500i197404-197506
L=500,*H,L=350
sub99556-20500
87245EHOSE, HEATER WATER, INLET E
main87245-10060i197405-197506
SWITZERLAND SPEC
main90445-21412i196904-197103
L=165
sub99551-20165
main90445-21564i197002-197102
L=220,HEAVY DUTY HEATER
sub99551-20220
main99551-20155i197201-197303
L=155
sub99552-20155
main99551-20165i197103-197112
L=165
sub99552-20165
main99551-20210i197201-197303
L=220,HEAVY DUTY HEATER
sub99552-20210
main99551-20220i197103-197112
L=220,HEAVY DUTY HEATER
sub99552-20230
main99552-20155i197303-197506
L=155
sub99552-20200
main99552-20210i197303-197506
L=210,HEAVY DUTY HEATER
sub99552-20300
main99552-20300i197506-198808
L=300,*H,L=290
sub99556-20300
87246AHOSE, HEATER WATER, OUTLET A
main87245-10070i197405-197506
SWITZERLAND SPEC
main90445-21413i196904-197102
L=190
sub99551-20190
main90445-21565i197002-197102
L=240,HEAVY DUTY HEATER
sub99551-20240
main99551-20180i197201-197303
L=180
sub99552-20180
main99551-20190i197103-197112
L=190
sub99551-20200
main99551-20230i197201-197303
L=230,HEAVY DUTY HEATER
sub99552-20230
main99551-20240i197103-197112
L=240,HEAVY DUTY HEATER
sub99552-20240
main99552-20180i197303-197506
L=180
sub99552-20200
main99552-20190i197404-197506
L=190
main99552-20230i197303-197506
L=230,HEAVY DUTY HEATER
sub99552-20300
main99552-20240i197404-197506
L=240,HEAVY DUTY HEATER
sub99552-20300
main99552-20300i197506-198808
L=300,*H,L=290
sub99556-20300
87246EHOSE, HEATER WATER, OUTLET E
main90445-21345i196904-197102
L=500
sub99551-20500
main99551-20500i197103-197303
L=500
sub99552-20500
main99552-20200i197506-198808
L=200,L=200
sub99556-20200
main99552-20500i197303-197506
L=500,L=500
sub99556-20500
main99552-20500i197404-197506
L=500,*H,L=350
sub99556-20500
87248APIPE, HEATER WATER INLET, A
main87248-10050i196904-197506
main87248-10070i197404-197506
main87248-12020i197506-198808
8726110050BRACKET, HEATER PUMP
main87261-10050
9046022073
main90460-22073
9046322073
main90463-22073
9046820117
main90468-20117
9111140612
main91111-40612
9161140612
main91611-40612
9165640616
main91656-40616
9451100600
main94511-00600
9611210220
main96112-10220

15 parts on this diagram · 1 diagram in section
