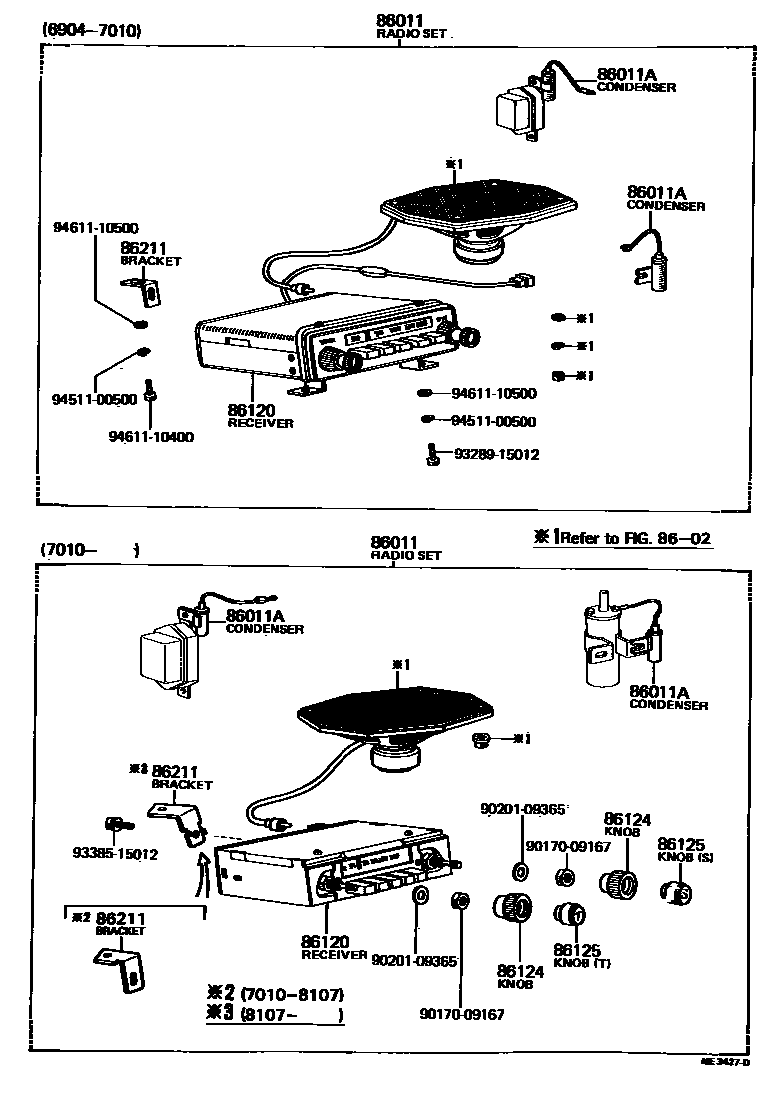

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011RADIO & SETTING PARTS SET

main86011-10050iKP3#196904-197010

MW 5-BUTTON

main86011-10051iKP3#197010-197511

MW 5-BUTTON

main86011-10052iKP3#197511-197602

MW 5-BUTTON

main86011-10053iKP30,36197602-198107

MW 5-BUTTON

sub86011-10054

main86011-10054iKP36198107-198808

MW 5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04006iKP3#196904-197511

CONNECTOR=(U)

sub90980-04032

main90980-04010iKP3#196904-197511

CONNECTOR=PLUG

main90980-04010iKP30,36197511-198808

8602

86120RECEIVER ASSY, RADIO

main86120-10030iKP3#196904-197010

MW 5-BUTTON

main86120-10031iKP3#197010-197409

MW 5-BUTTON

main86120-12020iKP3#197409-197511

MW 5-BUTTON

main86120-12200iKP30,36197703-198107

MW 5-BUTTON

main86120-14050iKP3#197511-197602

MW 5-BUTTON

main86120-14051iKP3#197602-197703

MW 5-BUTTON

sub86120-12200

main86120-14052iKP36198107-198808

MW 5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-12010iKP30,36197010-198808

86125KNOB, RADIO RECEIVER SWITCH

main86125-12010iKP3#197010-197511

MARK=S

sub86125-12011

main86125-12011iKP30,36197511-198808

main86125-12020iKP3#197010-197511

MARK=T

sub86125-12011

86211BRACKET, RADIO, NO.1

main86215-10040iKP3#196904-197010

main86215-10041iKP30,36197010-198107

main86215-10042iKP36198107-198808

9017009167

main90170-09167

9020109365

main90201-09365

9328915012

main93289-15012

9338515012

main93385-15012

9451100500

main94511-00500

9461110400

main94611-10400

9461110500

main94611-10500

14 parts on this diagram · 1 diagram in section
