SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-22010i2K..KP3#196904-197511

sub27700-38020

main27700-36010i2K..KP3#197511-197707

sub27700-36020

main27700-36020i2K,3KH..KP3#197707-198808

sub27700-15040

81980FLASHER ASSY, TURN SIGNAL

main81980-10050iKP3#196904-197112

sub81980-11011

main81980-10060iKP3#..RHD197404-197511

sub81980-12H03

main81980-11010iKP3#..LHD197201-198112

sub81980-11011

main81980-11011iKP36198112-198808

sub81980-12H04

main81980-12010iKP30,36..(SED,V)..LHD197405-197809

WEST GERMANY SPEC

sub81980-12H02

main81980-20080iKP3#..LHD197404-197407

sub81980-12H02

8202

82600BLOCK ASSY, FUSE

main82600-10020iKP3#196904-197010

main82600-10030iKP3#197511-198808

main82600-12902iKP3#197201-197511

sub82600-20903

main82600-20020iKP3#197010-197112

82600FFUSE, FUSE BLOCK

main99118-62905iKP3#196904-198808

5A,5A

main99118-62910iKP3#196904-197112

10A

main99118-62915iKP3#196904-198808

15A,15A

main99118-62920iKP3#196904-198808

20A,20A

82611COVER, FUSE BLOCK

main82611-10020iKP3#196904-197010

main82611-12020iKP3#197511-198808

sub82611-12021

main82611-20020iKP3#197010-197112

main82611-20030iKP3#197201-197511

82612AINSULATOR, FUSE BLOCK TERMINAL, B

main82612-22020iKP3#197010-197511

83320GAGE ASSY, FUEL SENDER

main83320-19095iKP30196904-197303

main83320-19096iKP30197303-197802

main83320-19105iKP36..V196904-197205

main83320-19106iKP36..V197205-197511

sub83320-19107

main83320-19107iKP36..V197511-197809

main83320-19115iKP36..PIC196911-197205

main83320-19116iKP36..PIC197205-197208

sub83320-19117

main83320-19117iKP36..PIC197208-197511

sub83320-19118

main83320-19118iKP36,37..PIC197511-198808

83361GASKET, FUEL SENDER GAGE

main83361-20030iKP3#196904-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKP3#196904-197908

main83420-16010iKP3#197908-198308

sub83420-20020

main83420-20020iKP36198308-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKP3#197101-198403

sub83530-14030

main83530-12020iKP3#196904-197101

sub83530-10020

main83530-12040iKP36198403-198502

sub83530-14040

main83530-14040iKP36198502-198511

sub83530-30080

main83530-30080iKP36198511-198808

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10071iKP36198501-198808

main84210-12011iKP3#196904-197004

sub84210-62020

main84210-62020iKP3#197004-198501

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-20031iKP30,36..SED,V197511-197809

main84220-89101iKP3#..(SED,V)..LHD197506-197511

84233SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

main84230-12080iKP3#198106-198808

main84230-20020iKP3#197608-198106

sub84230-12080

84340SWITCH ASSY, STOP LAMP

main84340-10012iKP3#196904-197405

sub84340-22010

main84340-10013iKP3#197405-197511

sub84340-22010

main84340-20011iKP3#197511-198808

84380SWITCH ASSY, BRAKE WARNING TEST

main84380-10010iKP30,36..SED,V197511-197809

main84380-12010iKP3#..(SED,V)..LHD197506-197511

85926RELAY, HEADLAMP DIMMER

main81960-10021iKP3#196904-197009

9011906005

main90119-06005

9046106063

main90461-06063

9161640612

main91616-40612

9165140620

main91651-40620

9165640616

main91656-40616

9331914010

main93319-14010

9451200800

main94512-00800

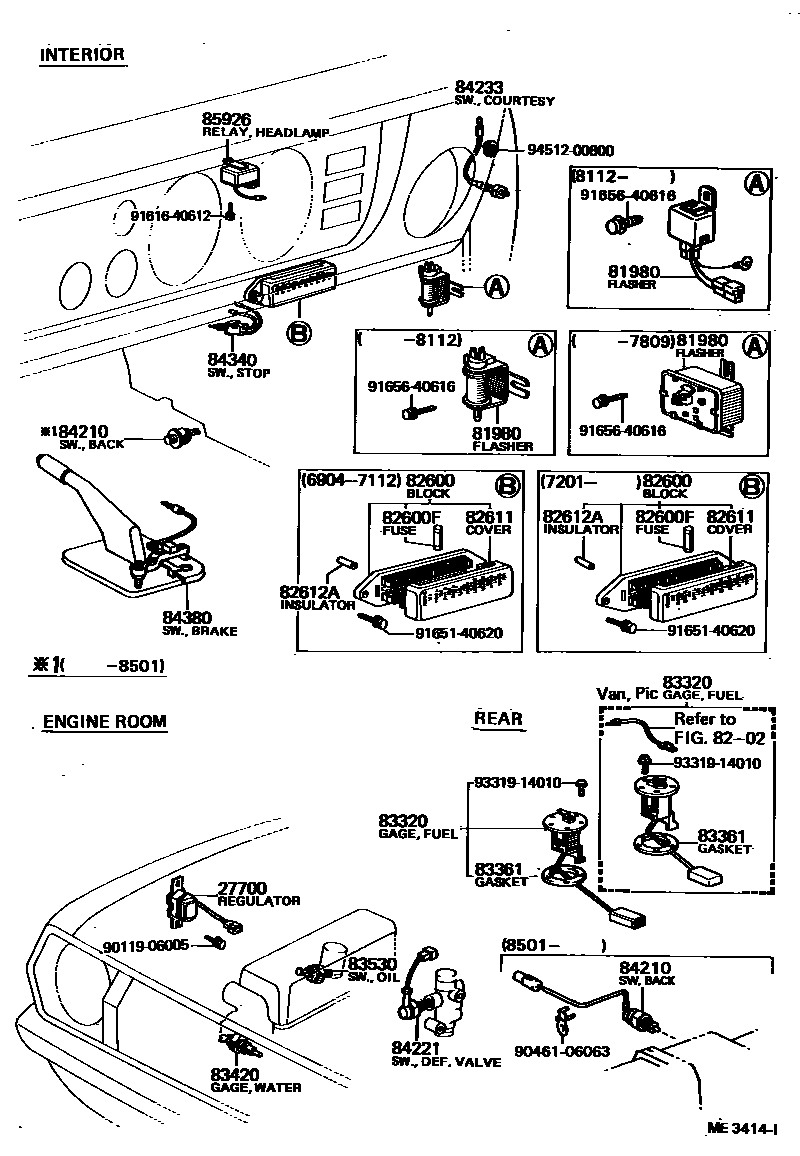

24 parts on this diagram · 4 diagrams in section
