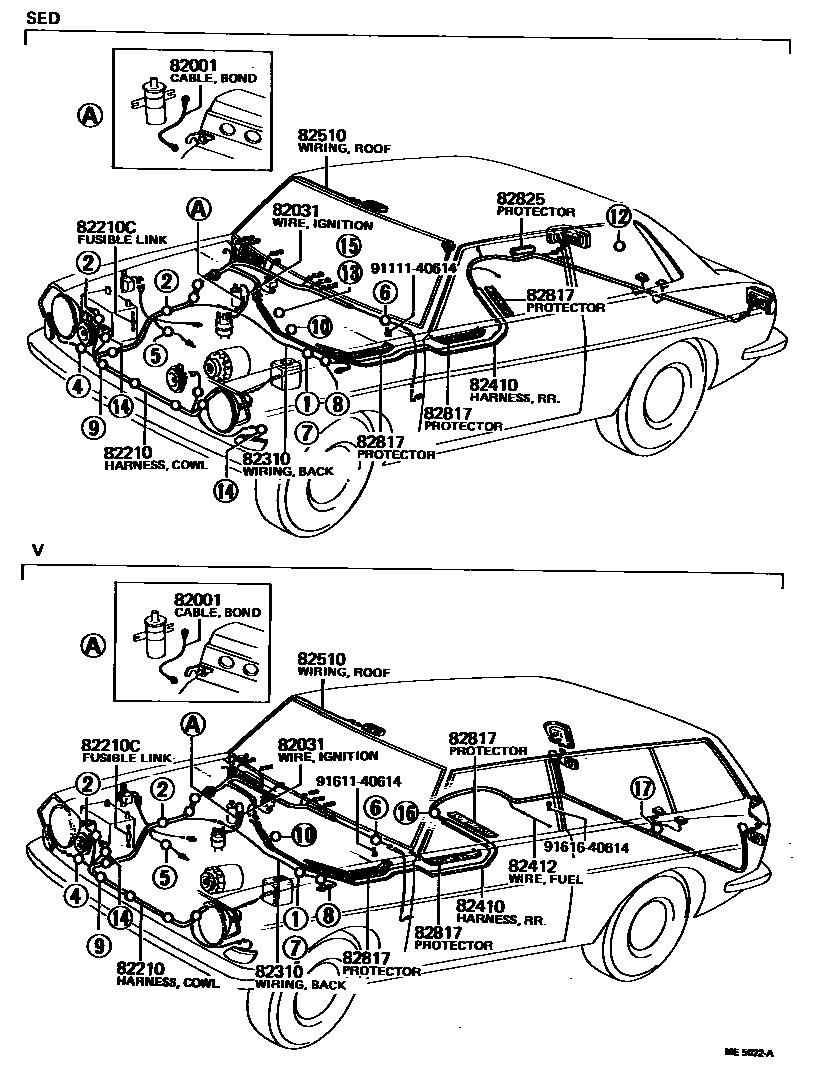

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=165
82031WIRE SUB-ASSY, IGNITION COIL
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
RR TURN SIGNAL LAMP=RED
RR TURN SIGNAL LAMP=RED
RR TURN SIGNAL LAMP=RED
RR TURN SIGNAL LAMP=RED
RR TURN SIGNAL LAMP=AMBER
RR TURN SIGNAL LAMP=AMBER
RR TURN SIGNAL LAMP=AMBER
RR TURN SIGNAL LAMP=AMBER
W/RR WINDOW DEFOGGER
W/HAZARD WARNING
EUROPE SPEC
82210CFUSIBLE LINK
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82410HARNESS ASSY, WIRING TO REAR LAMP
EUROPE SPEC
W/O HAZARD WARNING
RR COMBINATION LAMP=RED
W/HAZARD WARNING
RR COMBINATION LAMP=RED-AMBER
sub82410-11121
EUROPE SPEC
82412WIRE, FUEL GAGE
82817PROTECTOR, WIRING HARNESS, NO.1
L=750
L=350
82825PROTECTOR, WIRING HARNESS
L=80
L=150
9111140614
main91111-40614
9161140614
main91611-40614
9161640614
main91616-40614
13 parts on this diagram · 6 diagrams in section
